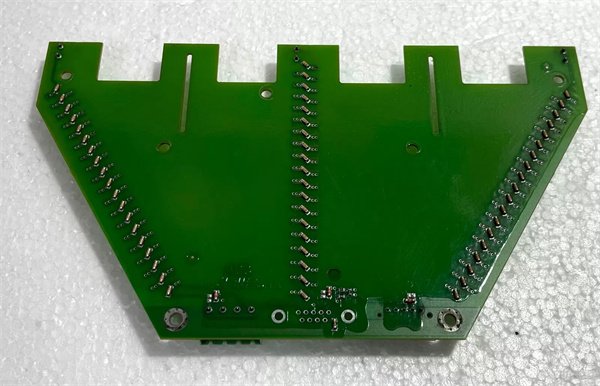

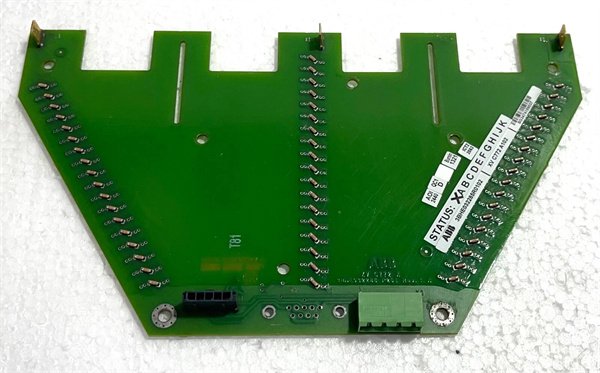

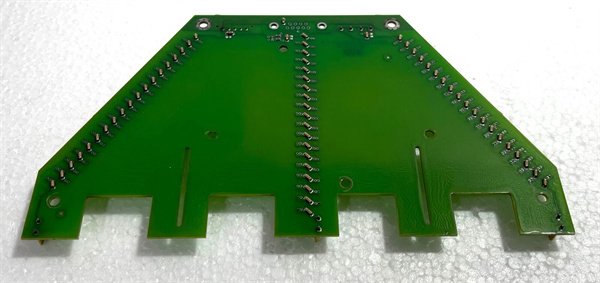

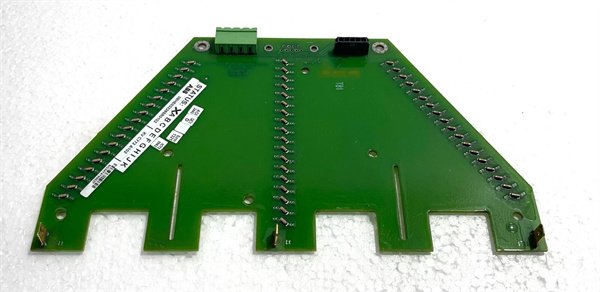

ABB 3BHE032285R0102 XVC772 A102 Analog Input Module

The ABB 3BHE032285R0102 XVC772 A102 is a high-density analog input module designed for ABB’s flagship S800 I/O system within the 800xA Distributed Control System (DCS). This module specializes in precise voltage signal acquisition (0-10 VDC) from field instruments like transmitters, sensors, and transducers. Engineered for mission-critical applications, the XVC772 A102 converts analog signals into digital data with 16-bit resolution, enabling real-time process monitoring in complex industrial environments.

As a core component of ABB’s modular I/O architecture, it seamlessly integrates with AC 800M controllers via the high-speed S800 bus. The module’s TM I/O Safe technology ensures secure configuration and prevents unauthorized access, while its compact design maximizes cabinet space efficiency. For industries requiring rigorous data integrity, the 3BHE032285R0102 delivers laboratory-grade measurement stability (±0.1% accuracy) even under electromagnetic interference.

Detailed Parameter Table

Core Advantages and Technical Highlights

Measurement Precision:

The ABB 3BHE032285R0102 achieves True C1 accuracy (±0.1% FS) across all 16 channels – surpassing industry standards. Its auto-calibration function compensates for temperature drift, maintaining precision in -25°C to +70°C environments. Dual-layer isolation (1500 VAC) eliminates ground loops and protects system electronics.

Operational Resilience:

Featuring TM I/O Safe technology, the module supports live insertion/removal without disrupting control loops. Built-in diagnostics monitor channel health, detecting open wires, over-range signals, and hardware faults. Conformal coating protects against humidity, dust, and corrosive atmospheres.

System Integration:

Native compatibility with ABB’s 800xA DCS allows plug-and-play configuration via Control Builder M software. The module’s S800 bus interface delivers 10 Mbps data throughput with deterministic latency, synchronizing seamlessly with CI854 controllers.

Typical Application Scenarios

The ABB 3BHE032285R0102 XVC772 A102 is indispensable in power generation, where it monitors turbine vibration (0-10V accelerometer signals) and stator temperatures. In pharmaceutical manufacturing, it interfaces with pH/conductivity sensors for FDA-compliant batch processing. Oil refineries deploy this module for crude distillation column pressure/temperature monitoring, leveraging its EMI immunity in high-noise environments.

Water treatment plants use the XVC772 A102 for filter pressure transmitters and flowmeter integration, while chemical facilities rely on its corrosion-resistant terminals for acid/alkali process control. Mining operations benefit from its shock/vibration tolerance in conveyor belt weight measurement systems.

Installation Commissioning and Maintenance Instructions

Installation Preparation:

Ensure cabinet ambient temperature ≤70°C and humidity <95% non-condensing. Verify S800 bus termination before mounting the 3BHE032285R0102 on DIN rail (EN 60715). Use shielded twisted-pair cables with drain wires grounded at one end. Disable field power during wiring.

Maintenance Suggestions:

Perform annual calibration using ABB’s Field Device Manager (FDM). Monitor module health via 800xA Asset Optimization alerts. Replace units showing persistent “Channel Fault” LEDs. Always use anti-static wrist straps when handling spare XVC772 A102 modules.

Service and Guarantee Commitment

ABB provides a 36-month warranty for the 3BHE032285R0102 XVC772 A102, covering manufacturing defects and performance deviations. Global technical support includes 24/7 phone assistance and on-site service within 72 hours for critical failures. Firmware updates are available through ABB Ability™ Support Portal. All modules undergo 100% burn-in testing at -30°C/+85°C prior to shipment. Extended lifecycle support guarantees spare availability for 15+ years after discontinuation.
