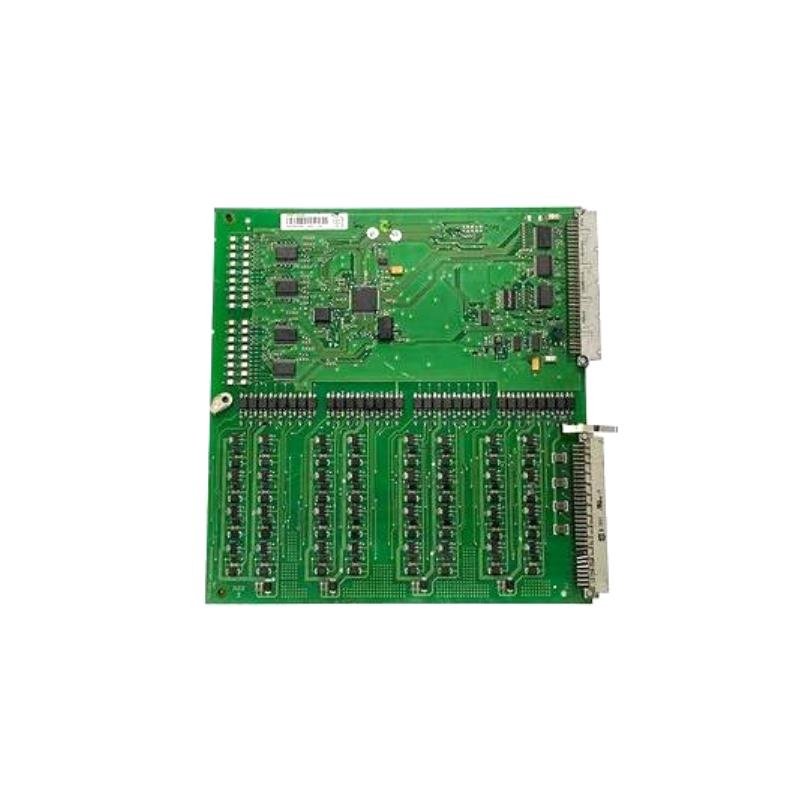

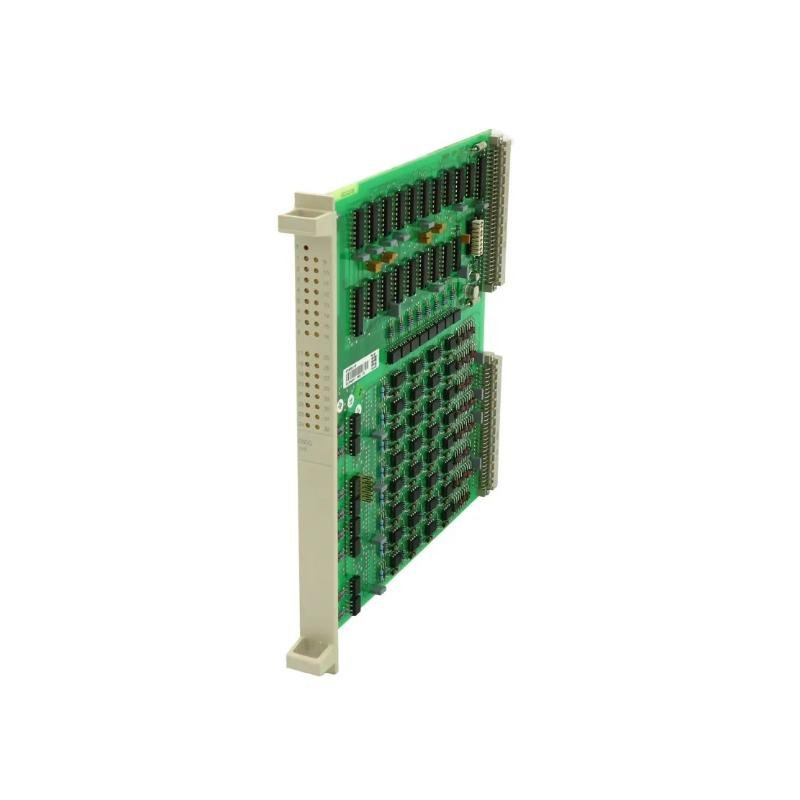

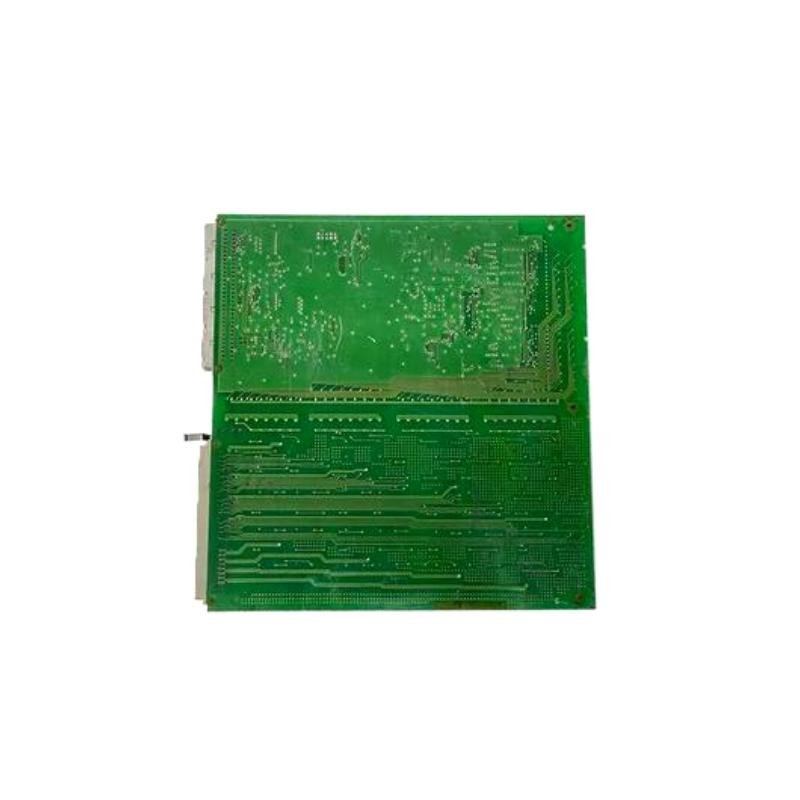

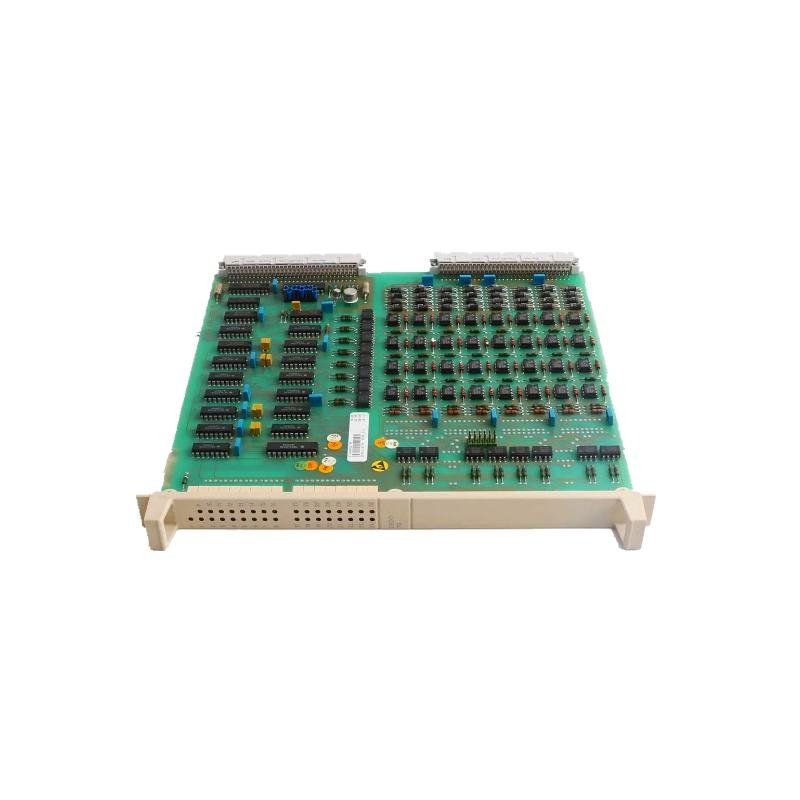

ABB DSDO 115A 3BSE018298R1 Digital Output Board
Manufacturer: ABB
Product Number: DSDO 115A (3BSE018298R1)
Category: Digital Output Board
Number of Channels: 32
Output Type: 24 V DC
Output Current: 0.5 A per channel
Isolation: 500 V
Operating Temperature: -20°C to +60°C
Application: Transmission of digital signals in automation systems
Product Description
The ABB DSDO 115A 3BSE018298R1 is a high-performance digital output module designed for the transmission of digital signals in automation systems. The module features 32 independent 24V DC output channels, ideal for industrial applications that require high reliability and precise control. Each output channel supports a maximum load of 0.5A, ensuring stable power output to meet the needs of various industrial equipment. The DSDO 115A digital output board is widely used in control and monitoring systems, particularly in high-frequency, high-load environments.
Key Features
- 32 Independent Output Channels: Each channel supports 24V DC voltage, making it compatible with a wide range of devices.
- Load Capacity: Each channel can handle up to 0.5A of current, ensuring sufficient power supply for connected devices.
- High Reliability: The board is designed using advanced technology to offer stable performance even in harsh industrial environments.
- Compact Design: Compared to similar products, this module is smaller and easier to install and integrate.
- Broad Compatibility: It works with various automation systems and devices, supporting multiple control solutions.
Technical Specifications
Table 1: Dimensions and Weight
| Parameter | Value |
| Product Net Depth/Length | 324 mm |
| Product Net Height | 22.5 mm |
| Product Net Width | 234 mm |
| Product Net Weight | 0.32 kg |
Table 2: Basic Information
| Parameter | Value |
| Product Type | I-O_Module |
| Medium Description | DSDO 115A Digital Output Board 32 Channels 24Vdc 0.5 A |
| Technical Information | Digital Output Board |
| Power Supply Voltage | 24V DC |
| Maximum Load Current | 0.5 A |
| Number of Output Channels | 32 Channels |
| Operating Temperature Range | -20°C to +60°C |
Industry Applications
The ABB DSDO 115A Digital Output Module is widely used in the following industries:
- Industrial Automation: In manufacturing automation lines, it is used to control the start/stop of motors, valves, lights, and other equipment.
- Energy Management Systems: Used in power systems to monitor and control devices such as transformers and distribution systems.
- Building Automation: Applied in building control systems for managing devices such as HVAC (heating, ventilation, and air conditioning) and lighting control.
- Process Control: Used in industries such as chemicals, oil, and natural gas for real-time control and monitoring of equipment.
