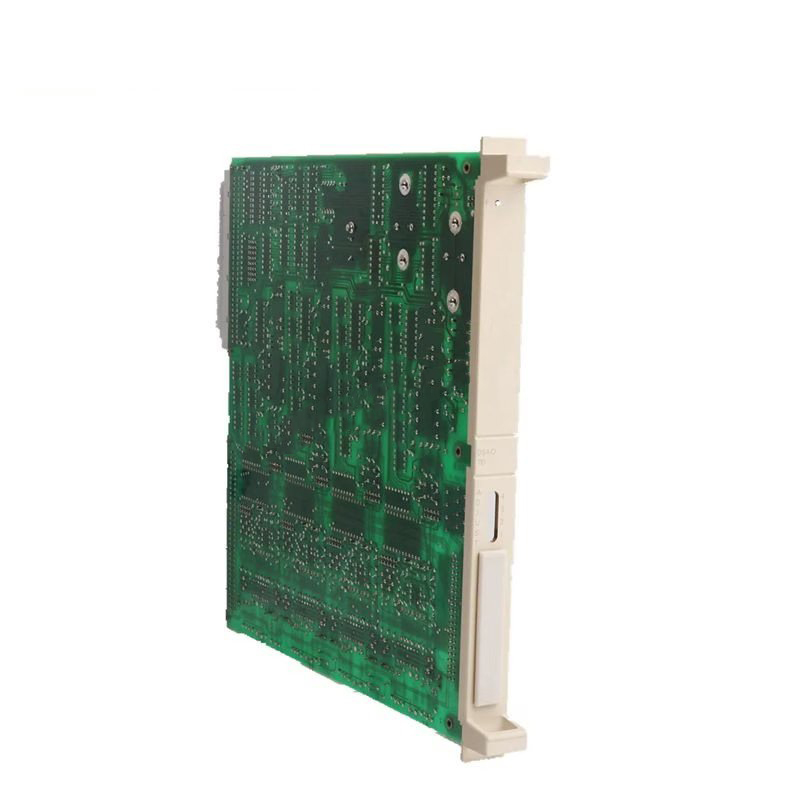

The ABB DSDO301 57160001-CC/1 is a high-performance digital output board designed for industrial automation. It ensures efficient and reliable digital output, making it ideal for process control and machine automation.

Technical Specifications

General Information

• Model Number: DSDO301 57160001-CC/1
• Type: Digital Output Board
• Communication Protocol: Modbus RTU
• Mounting: DIN rail

Electrical Specifications

• Output Channels: 32 isolated digital outputs
• Output Voltage: 30 V DC per channel
• Rated Voltage: 24 V DC
• Output Current: 200 mA per channel
• Rated Current: 0.5A per channel
• Input Voltage Range: 18-28 V DC
• Pulse Width: 1-2000 ms

Mechanical and Environmental Features

• Connector Type: Spring terminal
• Isolation: Yes
• Dimensions: 120 mm x 100 mm x 75 mm
• Weight: 0.3 kg
• Ambient Temperature: -25°C to +70°C
• Protection Level: IP20
