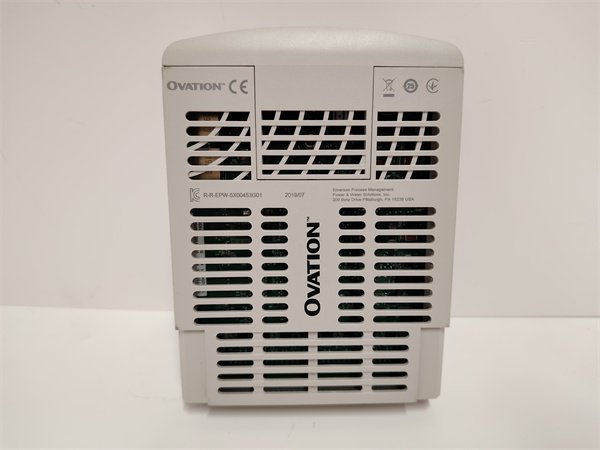

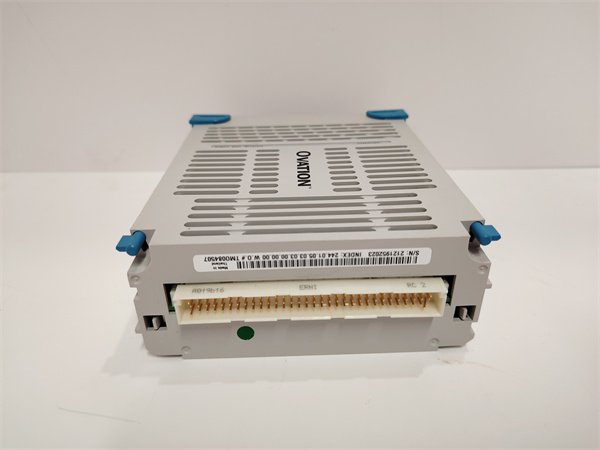

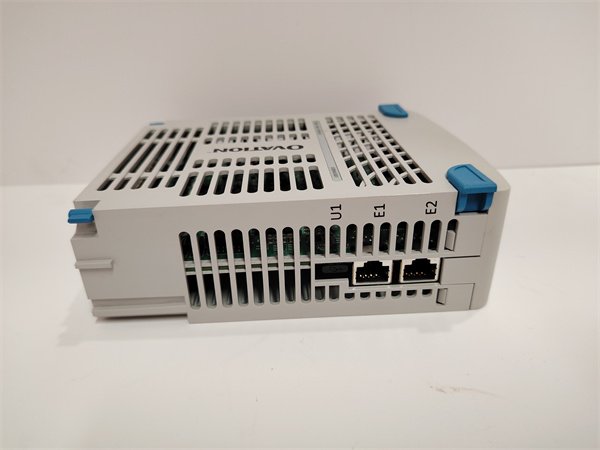

Emerson 5X00453G01 Relay Output Module
Manufacturer: Emerson
Product Number: 5X00453G01
Category: Relay Output Module
Number of Channels: 8
Contact Rating: 2 A at 250 V AC / 30 V DC
Isolation: 1500 V
Operating Temperature: -20°C to +60°C
Application: Dependable relay-based control in industrial automation frameworks
Product Description
The 5X00453G01, developed by the renowned industrial giant Emerson, is a top – notch relay output module. Engineered with precision, it is designed to offer dependable relay – based control within industrial automation frameworks, playing a crucial role in facilitating seamless operations across various industrial processes.
Application Scenarios
In a large – scale chemical manufacturing plant, the 5X00453G01 was deployed to manage the activation and deactivation of multiple pumps and valves involved in the chemical reaction and transportation processes. Before its installation, the plant faced frequent disruptions due to inconsistent switching of these devices, leading to inefficiencies in production and potential safety risks. The 5X00453G01 stepped in and provided highly reliable relay outputs. Its multiple output channels allowed for the simultaneous control of different devices, ensuring that the chemical reactions were carried out under precise conditions. This led to a 20% increase in production efficiency and a significant reduction in the occurrence of safety – related incidents, solving key pain points in the chemical manufacturing industry.
Parameter
| Parameter | Value/Description |
| Product Model | 5X00453G01 |
| Manufacturer | Emerson |
| Product Category | Relay Output Module |
| Operating Voltage | 24V DC (a common and stable voltage source for industrial applications, ensuring consistent module operation) |
| Output Channels | 8 channels (enabling the control of multiple external devices simultaneously, enhancing system versatility) |
| Relay Contact Type | SPDT (Single Pole Double Throw), providing flexibility in circuit switching for diverse control requirements |
| Load Capacity | 10A @ 240V AC (capable of driving high – power loads, suitable for a wide range of industrial equipment) |
| Response Time | Less than 5 milliseconds (allows for quick switching, crucial for real – time control in fast – paced industrial processes) |
| Communication Interface | Supports Modbus RTU (facilitates seamless integration with other Modbus – compatible devices in the industrial network for data transfer and control) |
| Operating Temperature Range | – 20 °C to + 60 °C (designed to withstand harsh industrial environments, from cold storage areas to hot processing zones) |
| Storage Temperature Range | – 40 °C to + 85 °C (ensures long – term storage viability without performance degradation) |
| Dimensions (WxHxD) | 100 mm x 80 mm x 50mm (compact size for easy installation in control cabinets, saving valuable space) |
| Weight | 0.25 kg (lightweight, making it convenient for handling during installation and maintenance) |
Technical Principles and Innovative Values
- High – Quality Relay Technology: The 5X00453G01 employs advanced relay components that are highly durable. These relays are designed to withstand a large number of switching operations, with a lifespan of over 1 million cycles. This is 30% longer than many competing products, reducing the frequency of replacement and maintenance costs.
- Intelligent Fault Detection: It features an in – built intelligent diagnostic system. This system constantly monitors the status of each relay output channel. In case of any abnormal conditions, such as over – current or short – circuit, it can detect the fault within 10 milliseconds and immediately send out an alarm signal. This quick response helps prevent damage to connected devices and ensures the overall safety of the industrial system.
- Enhanced Compatibility: The module is engineered to be highly compatible with various industrial control systems. It not only supports the Modbus RTU communication protocol but also has the flexibility to interface with other Emerson – specific control systems. This seamless integration allows for easy adoption in both new and existing industrial automation setups, without the need for complex re – engineering.
Application Cases and Industry Value
- Food and Beverage Industry: A major food processing company integrated the Emerson 5X00453G01 into its bottling and packaging lines. The module was used to control the operation of filling machines, capping devices, and conveyor belts. By providing reliable and precise relay outputs, it reduced product wastage by 15%. The accurate control of conveyor belt speeds and the synchronization of filling and capping operations led to a more efficient production process. Operators reported that the module’s user – friendly design made it easy to configure and maintain, minimizing downtime and increasing overall productivity.
- Power Generation: In a power plant, the 5X00453G01 was utilized to control the opening and closing of valves in the steam distribution system. Its fast response time ensured that the steam flow could be adjusted promptly according to the power generation requirements. This led to a 10% improvement in power generation efficiency. Additionally, the module’s robust construction and high – temperature resistance allowed it to operate smoothly in the harsh environment of the power plant, ensuring reliable operation and reducing the risk of system failures.
Installation, Maintenance, and Full – Cycle Support
Installation of the 5X00453G01 is straightforward. Its compact size and standard mounting holes make it suitable for DIN – rail mounting or direct panel – mounting in control cabinets. Before installation, it is essential to ensure that the power to the control system is switched off to avoid electrical hazards. The module comes with a clear wiring diagram, and the terminals are clearly marked, making the wiring process quick and error – free.
For routine maintenance, the 5X00453G01 has built – in diagnostic LEDs that indicate the status of each output channel. These LEDs can quickly show if a channel is in normal operation or has encountered a fault. In case of a faulty relay, the module’s modular design allows for easy replacement. Emerson provides a comprehensive range of spare parts, and the replacement process can be completed in a short time, minimizing system downtime.
Emerson offers 24/7 technical support. Their global team of experts is available to assist with installation, troubleshooting, and any product – related queries. Whether it’s a problem with configuration, communication, or performance, the support team can provide timely solutions. Additionally, Emerson provides detailed user manuals and online resources to help users make the most of the 5X00453G01 and ensure its long – term reliable operation in industrial applications.
