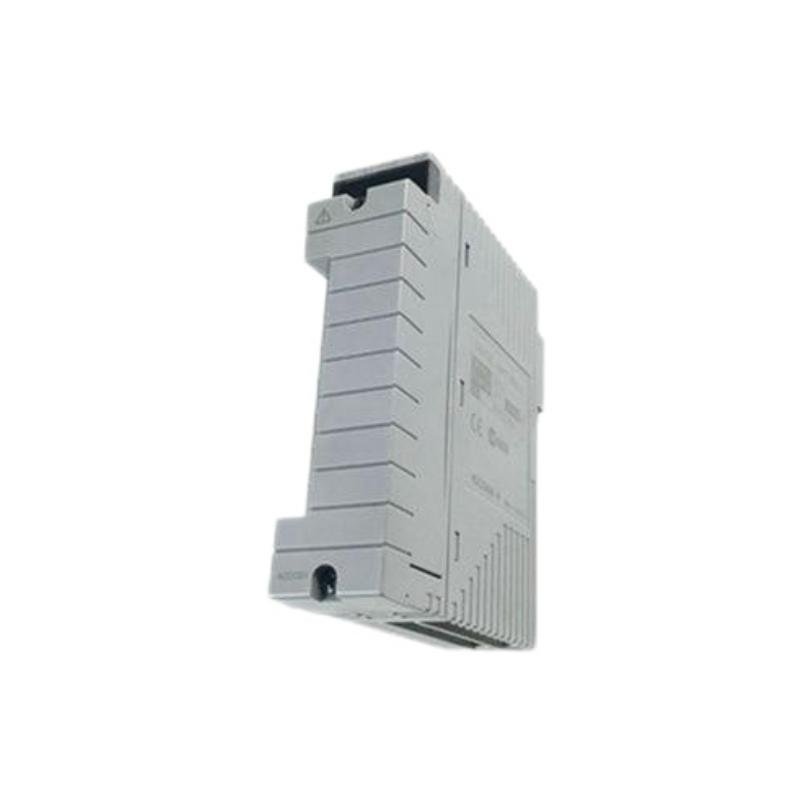

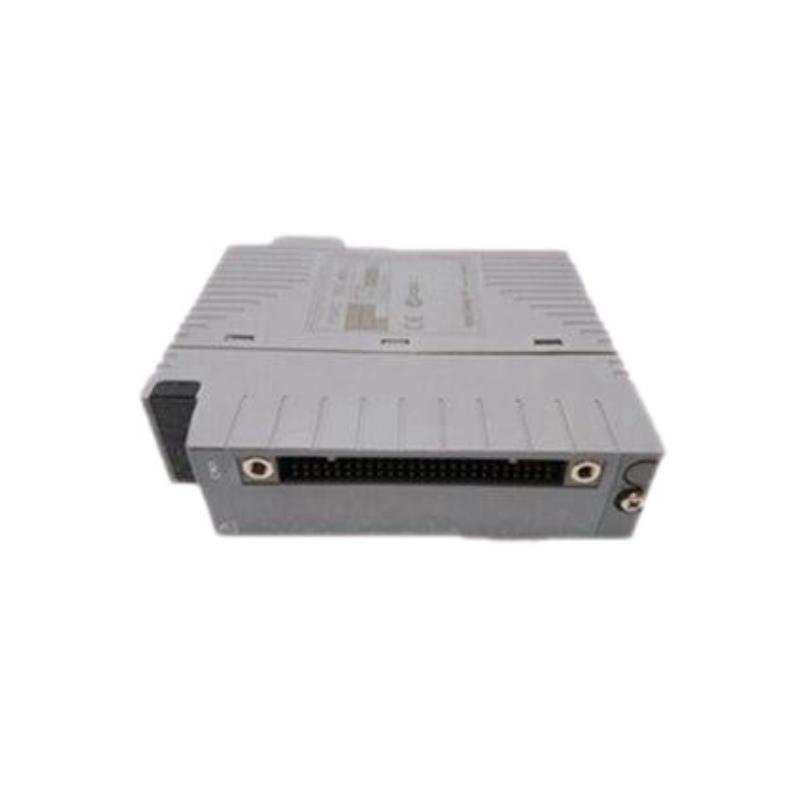

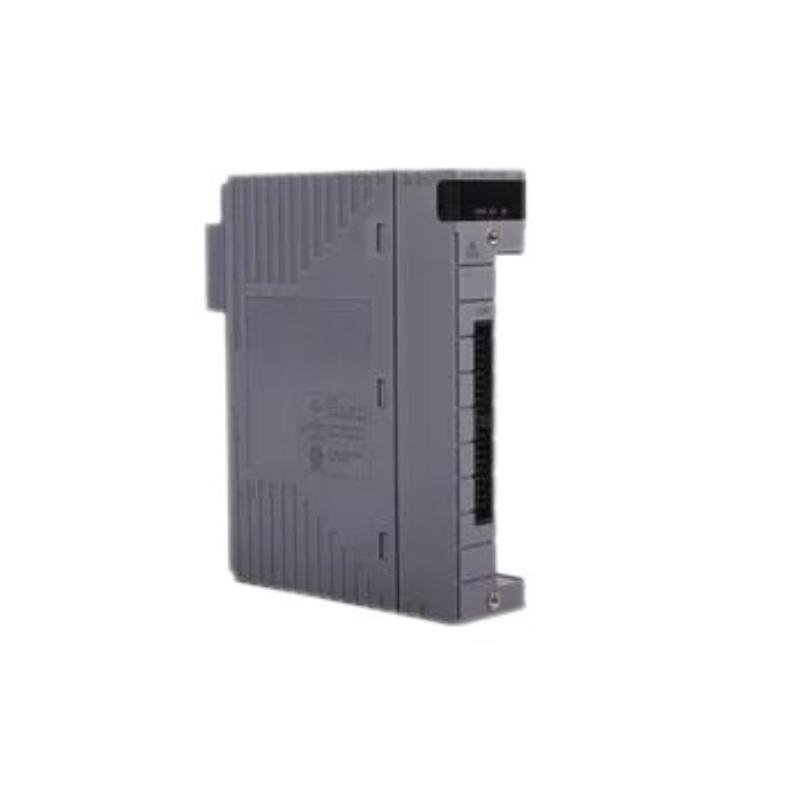

Yokogawa AAI143-H00/K4A00 Analog Input Modules
Manufacturer: Yokogawa
Product Number: AAI143-H00/K4A00
Category: 16-Channel Analog Input Module (CENTUM VP, ProSafe-RS)
Number of Channels: 16
Input Signal Types: 4-20 mA, 0-10 V, thermocouple, RTD
Resolution: 16 bits
Accuracy: ±0.1% of full scale
System Compatibility: Yokogawa DCS systems
Product Description
The Yokogawa AAI143-H00/K4A00 Analog Input Module is a high-performance 16-channel input unit designed for use in Yokogawa’s DCS systems such as CENTUM VP and ProSafe-RS. It supports a variety of analog input signals, including standard 4-20 mA and voltage signals, offering high precision, fast response, and excellent stability for critical industrial process monitoring and control.
Built with modular and hot-swappable architecture, this module enhances maintainability and system scalability. With strong EMC performance, advanced diagnostics, and robust industrial design, the AAI143-H00/K4A00 is ideal for demanding environments such as oil & gas, power, chemicals, and water treatment.
Key Features
-
High Accuracy Analog Acquisition: 16-bit resolution ensures accurate signal capture.
-
Wide Signal Type Support: Supports 4-20 mA, 1-5V, and other standard input signals.
-
Modular and Hot-Swappable: Easily replace or expand modules without stopping the system.
-
EMC Compliance: Designed to perform reliably in electrically noisy industrial environments.
-
Isolated Channels: All 16 channels are individually isolated for enhanced signal integrity.
-
Self-Diagnostics: Built-in diagnostics monitor module health and detect faults in real time.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
General Information
| Item | Specification |
|---|---|
| Model | AAI143-H00/K4A00 |
| Manufacturer | Yokogawa Electric Corporation |
| Installation | DIN rail or rack-mounted |
| Power Supply | Supplied via system backplane |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Input Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 16 channels (individually isolated) |
| Supported Signals | 4-20 mA, 1-5V, 0-10V |
| Input Impedance | Approx. 250 Ω (current input) |
| Resolution | 16-bit A/D converter |
| Channel Isolation | Yes |
| Accuracy | ±0.1% F.S. |
| Update Time (Full Scan) | ≤ 100 ms |
Electrical and System Specs
| Item | Specification |
|---|---|
| Power Voltage | 24 V DC ±10% (via backplane) |
| Power Consumption | Approx. 2.5 W |
| Status Indication | LEDs for power, operation, and errors |
| Hot Swap | Supported |
| System Compatibility | Compatible with CENTUM VP / ProSafe-RS |
Industry Applications
The Yokogawa AAI143-H00/K4A00 is widely deployed in critical process industries due to its high reliability and precise signal handling capabilities:
-
Oil & Gas: For process measurement and control across upstream and downstream operations.
-
Chemical and Pharmaceutical: Ideal for batch control and process monitoring under harsh environments.
-
Power Generation: Used in thermal, hydro, and nuclear plants for precision control.
-
Water and Wastewater Treatment: Ensures reliable data acquisition for environmental monitoring.
-
Metals and Manufacturing: Enhances process automation and real-time control in industrial production.
With robust architecture and advanced analog acquisition capabilities, the AAI143-H00/K4A00 is an integral part of Yokogawa’s automation ecosystem, ensuring reliable performance in mission-critical applications.
Loading comments...
Yokogawa AAI143-H00/K4A00 Analog Input Modules
Manufacturer: Yokogawa
Product Number: AAI143-H00/K4A00
Category: 16-Channel Analog Input Module (CENTUM VP, ProSafe-RS)
Number of Channels: 16
Input Signal Types: 4-20 mA, 0-10 V, thermocouple, RTD
Resolution: 16 bits
Accuracy: ±0.1% of full scale
System Compatibility: Yokogawa DCS systems
Product Description
The Yokogawa AAI143-H00/K4A00 Analog Input Module is a high-performance 16-channel input unit designed for use in Yokogawa’s DCS systems such as CENTUM VP and ProSafe-RS. It supports a variety of analog input signals, including standard 4-20 mA and voltage signals, offering high precision, fast response, and excellent stability for critical industrial process monitoring and control.
Built with modular and hot-swappable architecture, this module enhances maintainability and system scalability. With strong EMC performance, advanced diagnostics, and robust industrial design, the AAI143-H00/K4A00 is ideal for demanding environments such as oil & gas, power, chemicals, and water treatment.
Key Features
-
High Accuracy Analog Acquisition: 16-bit resolution ensures accurate signal capture.
-
Wide Signal Type Support: Supports 4-20 mA, 1-5V, and other standard input signals.
-
Modular and Hot-Swappable: Easily replace or expand modules without stopping the system.
-
EMC Compliance: Designed to perform reliably in electrically noisy industrial environments.
-
Isolated Channels: All 16 channels are individually isolated for enhanced signal integrity.
-
Self-Diagnostics: Built-in diagnostics monitor module health and detect faults in real time.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
General Information
| Item | Specification |
|---|---|
| Model | AAI143-H00/K4A00 |
| Manufacturer | Yokogawa Electric Corporation |
| Installation | DIN rail or rack-mounted |
| Power Supply | Supplied via system backplane |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
Input Characteristics
| Item | Specification |
|---|---|
| Number of Channels | 16 channels (individually isolated) |
| Supported Signals | 4-20 mA, 1-5V, 0-10V |
| Input Impedance | Approx. 250 Ω (current input) |
| Resolution | 16-bit A/D converter |
| Channel Isolation | Yes |
| Accuracy | ±0.1% F.S. |
| Update Time (Full Scan) | ≤ 100 ms |
Electrical and System Specs
| Item | Specification |
|---|---|
| Power Voltage | 24 V DC ±10% (via backplane) |
| Power Consumption | Approx. 2.5 W |
| Status Indication | LEDs for power, operation, and errors |
| Hot Swap | Supported |
| System Compatibility | Compatible with CENTUM VP / ProSafe-RS |
Industry Applications
The Yokogawa AAI143-H00/K4A00 is widely deployed in critical process industries due to its high reliability and precise signal handling capabilities:
-
Oil & Gas: For process measurement and control across upstream and downstream operations.
-
Chemical and Pharmaceutical: Ideal for batch control and process monitoring under harsh environments.
-
Power Generation: Used in thermal, hydro, and nuclear plants for precision control.
-
Water and Wastewater Treatment: Ensures reliable data acquisition for environmental monitoring.
-
Metals and Manufacturing: Enhances process automation and real-time control in industrial production.
With robust architecture and advanced analog acquisition capabilities, the AAI143-H00/K4A00 is an integral part of Yokogawa’s automation ecosystem, ensuring reliable performance in mission-critical applications.
