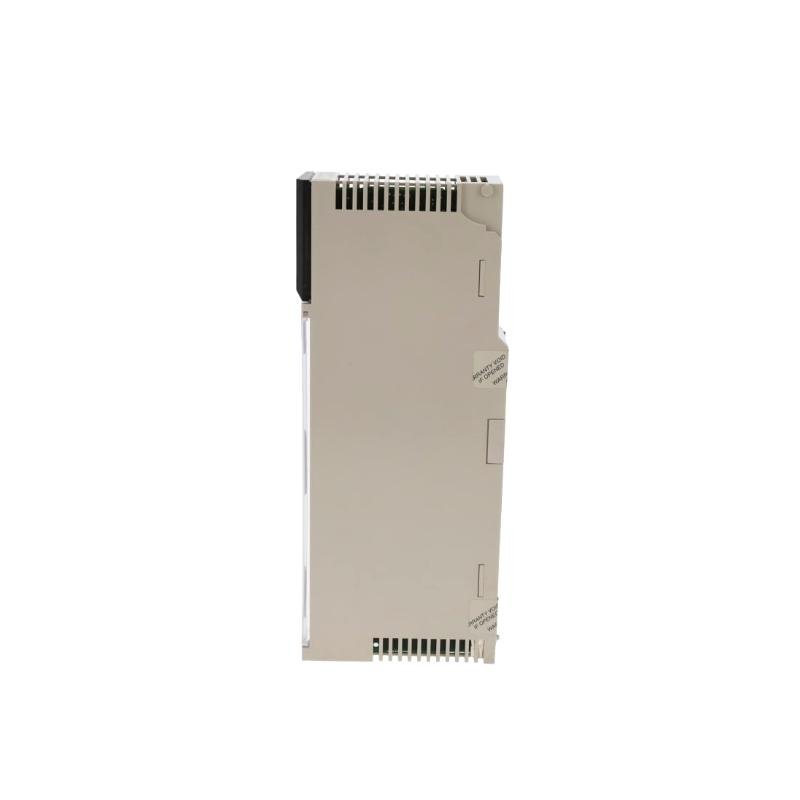

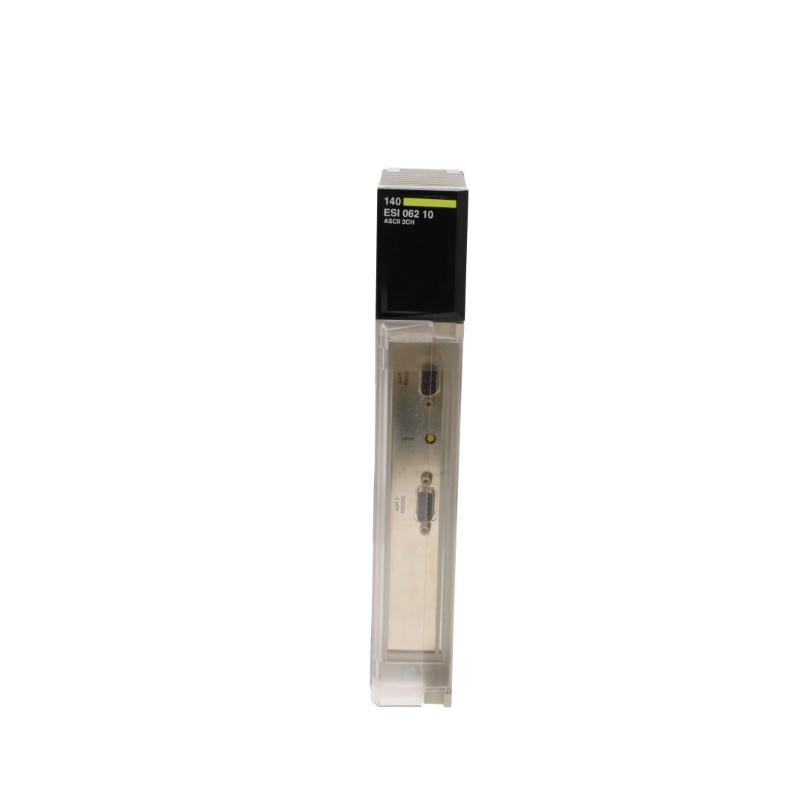

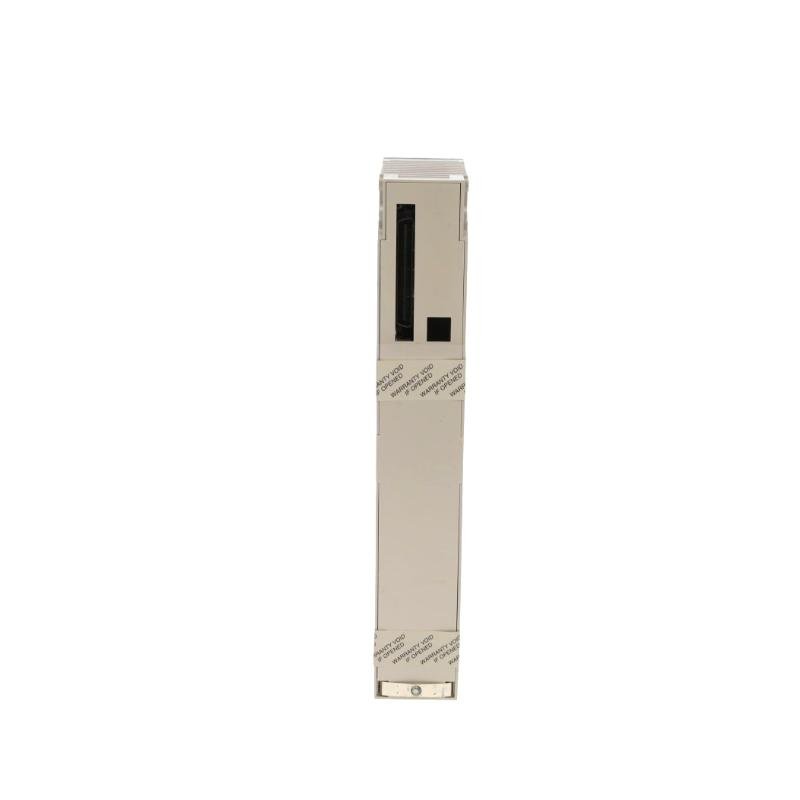

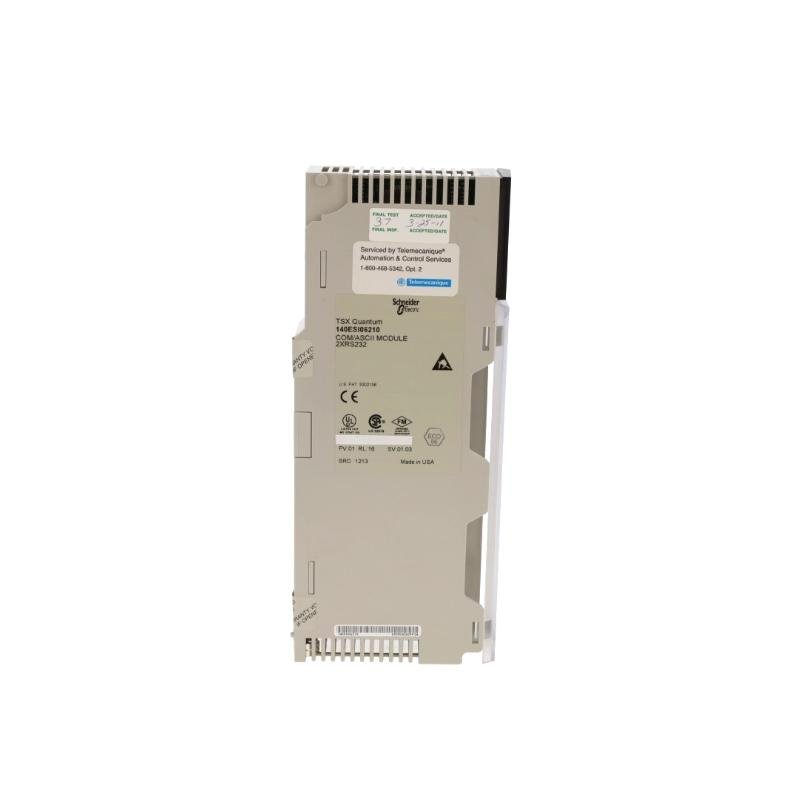

Schneider 140ESI06210 ASCII Serial Link Module
Manufacturer: Schneider Electric
Product Number: 140ESI06210
Category: ASCII Serial Link Module (Modicon Quantum Platform)
Communication: ASCII serial
Number of Ports: 2
Application: Facilitates efficient data communication between PLCs and various peripheral devices using ASCII protocol
Product Description
The Schneider 140ESI06210 is an ASCII Serial Link Module designed for integration within the Modicon Quantum Automation Platform. This module facilitates efficient data communication between programmable logic controllers (PLCs) and various ASCII-compatible devices, enhancing the versatility and connectivity of industrial automation systems.
Product Specifications
Below are the detailed specifications of the Schneider 140ESI06210 module:
| Specification | Details |
|---|---|
| Model Number | 140ESI06210 |
| Function | ASCII Serial Link Module |
| Number of Ports | 2 RS232C non-isolated ports conforming to DIN 66020 standards |
| Electrical Connection | 2 SUB-D 9 connectors |
| Transmission Rate | 19.2 kbit/s |
| Maximum Cable Distance | Less than 20 meters (65.6 feet) between devices |
| Message Nesting Levels | Up to 8 levels |
| Buffer Size | 255 input bytes and 255 output bytes |
| Number of Messages | Up to 255 messages |
| Message Length | Maximum of 127 characters plus 1 checksum |
| Clock Function | Includes calendar clock |
| Memory Capacity | 128 kB flash memory and 32 kB RAM |
| Maximum Power Dissipation | 2 Watts |
| Addressing Requirement | 12 output words and 12 input words |
| Bus Current Requirement | 300 mA |
| Dimension | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Operating Temperature Range | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature Range | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | Up to 95% without condensation |
| Operating Altitude | Up to 5,000 meters (16,404.2 feet) |
| Electromagnetic Field Resistance | 10 V/m at 80 to 1000 MHz (IEC 801-3 compliant) |
| Product Compatibility | Compatible with all Quantum CPUs |
| Software Compatibility | Unity Pro, ProWORX NxT, ProWORX 32, Concept |
| Environmental Compliance | Compliant with RoHS directives |
| Warranty | 18 months from the date of purchase |
Product Applications
The 140ESI06210 module is primarily used in industrial automation environments where communication with ASCII-based devices is required. Typical applications include:
- Data Acquisition Systems: Collecting data from ASCII-compatible sensors and instruments for monitoring and analysis.
- Process Control: Integrating with legacy equipment that utilizes ASCII communication protocols.
- Remote Terminal Units (RTUs): Facilitating communication between central control systems and remote devices in various industries.
- Industrial Networking: Connecting PLCs with ASCII-based devices to expand network capabilities and data exchange.
Product Advantages
- Enhanced Connectivity: Provides seamless integration between Modicon Quantum PLCs and ASCII-based devices, expanding system interoperability.
- High-Speed Communication: Supports a transmission rate of 19.2 kbit/s, ensuring efficient data exchange.
- Flexible Message Handling: Allows nesting of up to 8 messages, accommodating complex communication requirements.
- Ample Buffering: Offers 255 input and 255 output bytes of buffer space, supporting substantial data transactions.
- Integrated Timekeeping: Features a built-in calendar clock for time-stamping messages, beneficial for time-sensitive applications.
- Robust Environmental Tolerance: Operates effectively across a wide temperature range and withstands high humidity levels, suitable for diverse industrial settings.
- Compact and Lightweight Design: Weighs only 0.3 kg (0.66 lbs) and has a standard module format, facilitating easy installation and integration.
- Software Compatibility: Compatible with various Schneider Electric software platforms, including Unity Pro and ProWORX, ensuring ease of configuration and programming.
