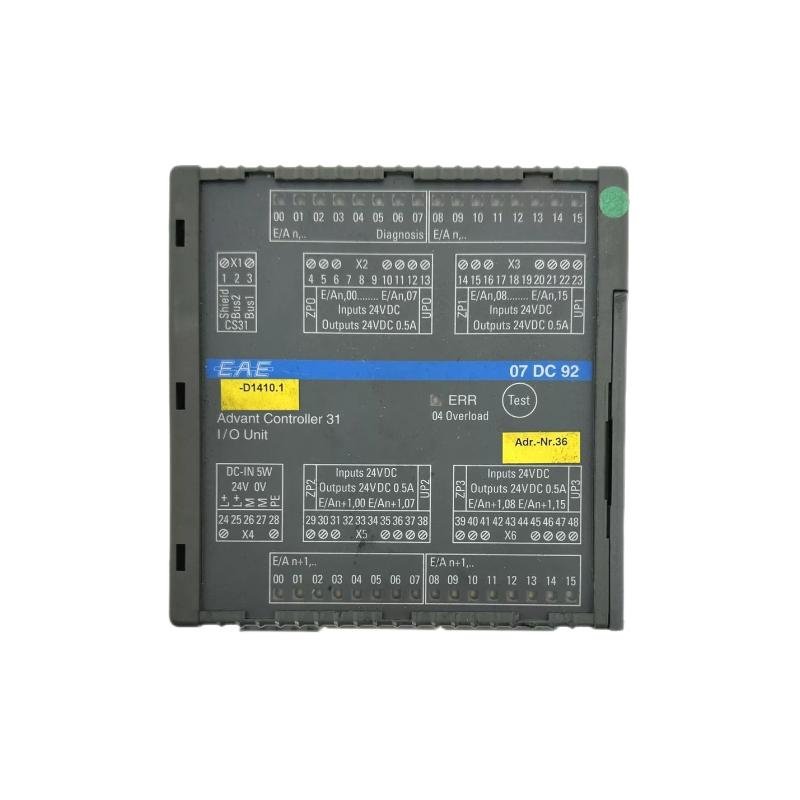

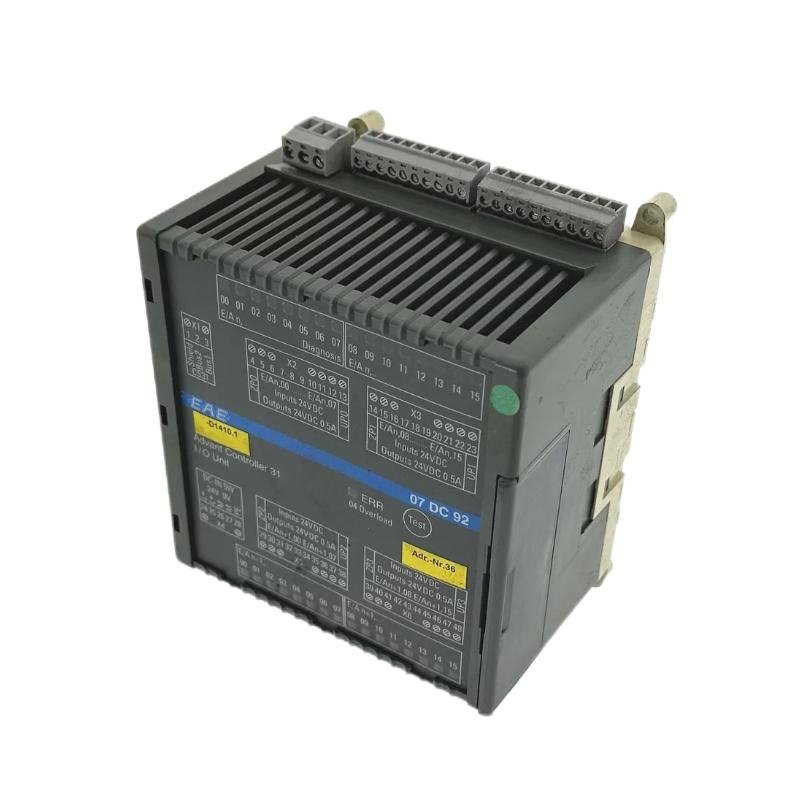

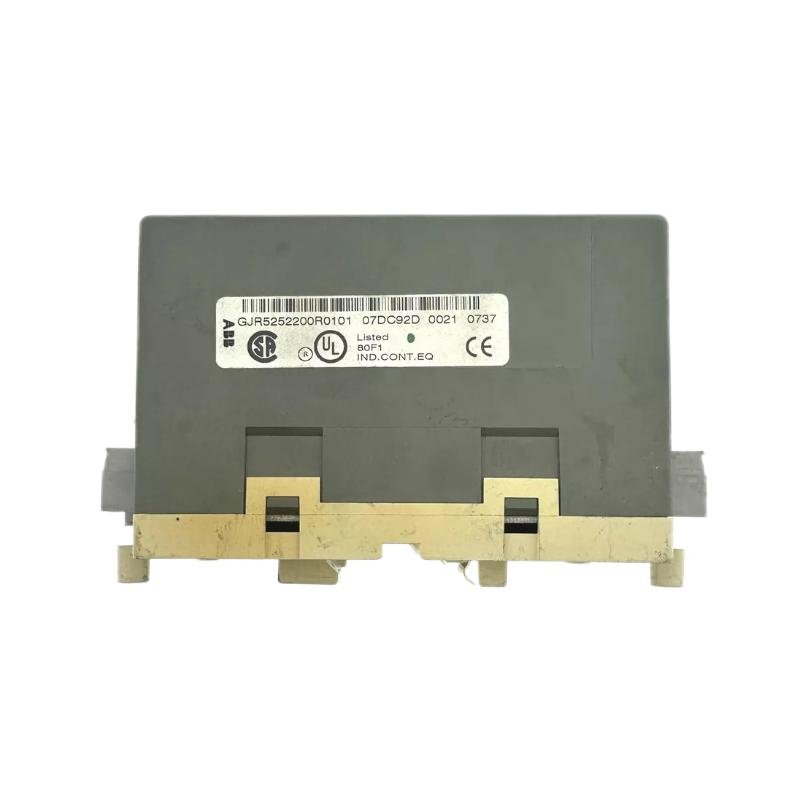

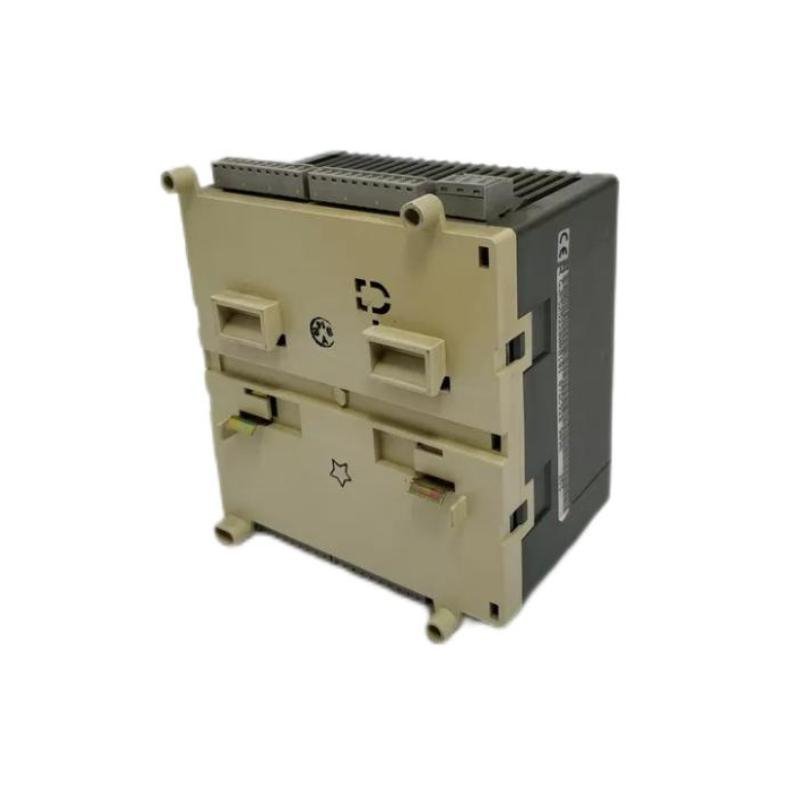

ABB 07DC92 GJR5252200R0101 Digital Input/Output Modules
Manufacturer: ABB
Product Number: 07DC92 (GJR5252200R0101)
Category: Digital Input/Output Module
Number of Channels: 16 digital inputs / 16 digital outputs
Input Voltage Range: 24V DC (typical)
Output Current: 0.5A per channel (typical)
Isolation: 500V AC between channels and system
System Compatibility: ABB industrial automation systems (e.g., Advant Controller)
Product Description
The ABB 07DC92 GJR5252200R0101 is a high-performance digital input/output module designed for ABB industrial automation systems. This module handles multiple digital signal input and output channels and is highly efficient in data exchange and control between devices. It integrates seamlessly into ABB’s automation platforms, enhancing system response time and stability.
With advanced circuit design and a robust industrial-grade housing, the module is capable of operating reliably in harsh industrial environments. Whether for complex production line monitoring, energy management, or building automation, the 07DC92 GJR5252200R0101 ensures reliable and precise data exchange, keeping systems running efficiently.
Key Features
-
High Signal Processing Capability: Supports multiple digital input (DI) and output (DO) channels, providing efficient and precise data acquisition and control.
-
Strong Compatibility: Fully compatible with other ABB automation devices, enabling quick integration with existing systems.
-
Durability & Interference Resistance: Equipped with strong EMI protection to ensure stable operation in harsh industrial environments.
-
Low Power Consumption: Optimized circuit design reduces power consumption, making it suitable for energy-efficient applications.
-
Flexible Modular Design: Supports various configuration options, allowing customization of input/output channels according to requirements.
-
Easy Installation & Maintenance: Supports standard DIN rail mounting for fast wiring, installation, and maintenance.
Technical Specifications
Dimensions and Weight
| Item | Value |
|---|---|
| Dimensions | 120 x 140 x 85 mm |
| Weight | 0.45 kg |
General Information
| Item | Value |
|---|---|
| Model | 07DC92 GJR5252200R0101 |
| Supplier | ABB |
| Power Supply | 24 V DC |
| Temperature Range | -20°C to +60°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Installation | DIN Rail Mount |
Performance and Functions
| Item | Value |
|---|---|
| I/O Type | Digital Inputs (DI), Digital Outputs (DO) |
| Input Voltage Range | 24 V DC (Max Input Voltage: 30 V DC) |
| Output Voltage Range | 24 V DC (Max Output Current: 1 A) |
| Input Response Time | ≤ 10 ms |
| Output Response Time | ≤ 5 ms |
| I/O Channels | 16 Channels (per module) |
| Communication Protocols | Compatible with ABB control systems |
Electrical Specifications
| Item | Value |
|---|---|
| Power Supply | 24 V DC ±10% |
| Power Consumption | ≤ 10 W |
| Operating Current | 0.4 A |
Industry Applications
The ABB 07DC92 GJR5252200R0101 digital I/O module is widely used across various industrial control sectors, including but not limited to:
-
Automation Production Lines: Provides efficient data acquisition and control functions, ensuring smooth operation of automated production lines.
-
Building Automation: Used in building control systems for data exchange and device control, enhancing smart building management.
-
Oil & Gas: Monitors and controls equipment in the oil and gas industry, providing real-time data acquisition and system optimization.
-
Power & Energy Management: Supports real-time data collection in energy management systems, optimizing energy usage and monitoring.
-
Water Treatment & Environmental Protection: Used for monitoring and controlling water quality, flow, and other key parameters in water treatment plants.
With its outstanding performance and flexibility, this module is a key component in digital signal processing and control systems across multiple industries.
