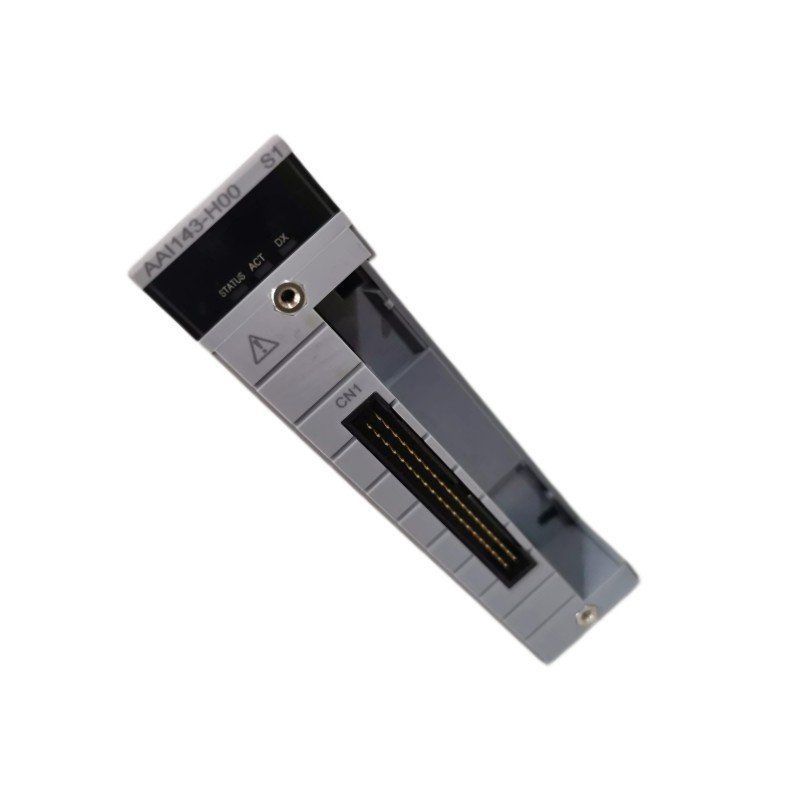

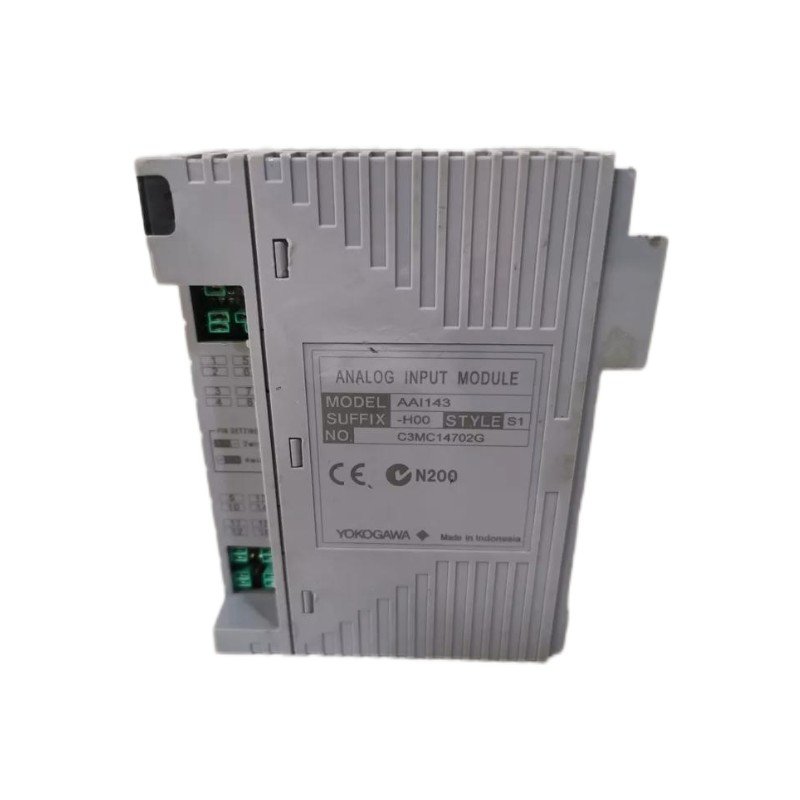

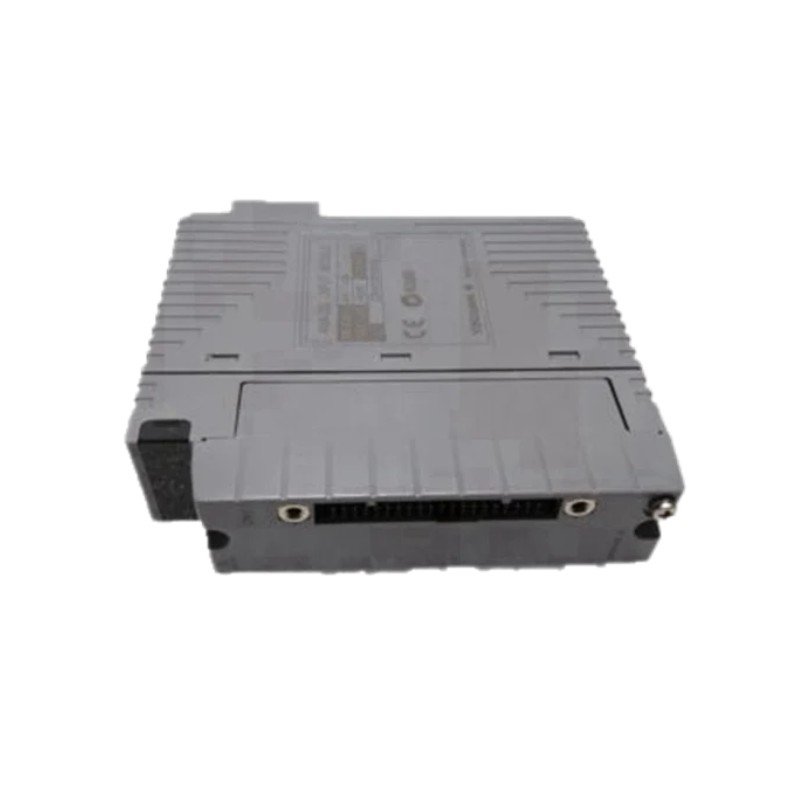

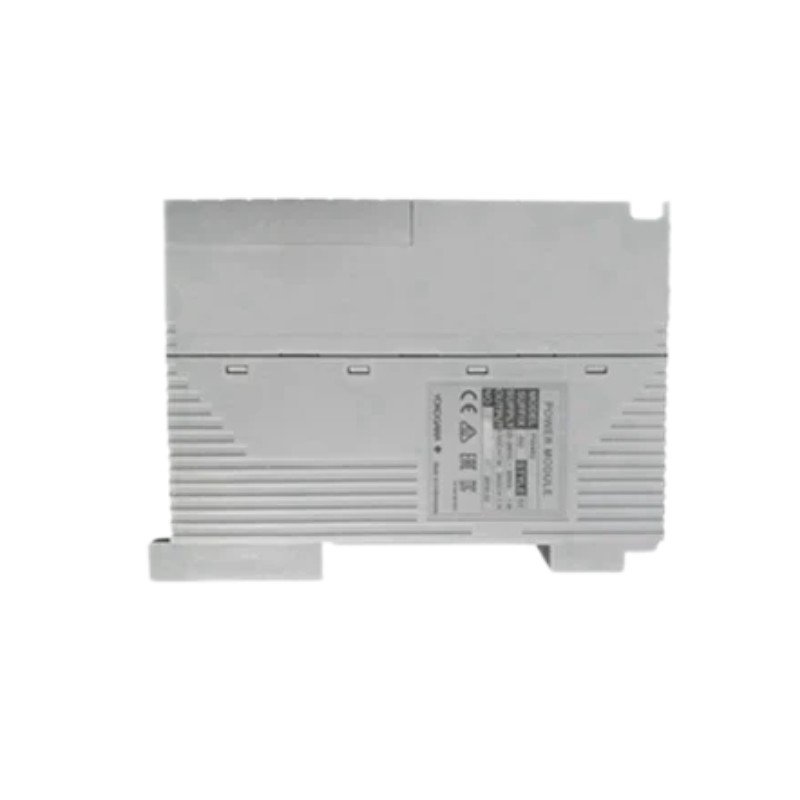

Yokogawa AAI143-h00 Analog Input Modules
Manufacturer: Yokogawa
Product Number: AAI143-H00
Category: Analog Input Module
Number of Channels: 16
Input Signal: 4-20 mA
Resolution: 16-bit
System Compatibility: CENTUM VP DCS
Application: Collecting current signals from pressure, temperature, and flow transmitters
Product Description
The Yokogawa AAI143-H00 is a 16-channel analog input module specifically developed for the CENTUM VP distributed control system. It is designed to collect 4–20 mA current signals from field devices such as pressure, temperature, and flow transmitters. This module ensures accurate signal acquisition and high noise immunity, making it ideal for critical process control in industries such as petrochemicals, power, water treatment, and pharmaceuticals.
With features such as hot-swapping, channel-to-channel isolation, high-resolution A/D conversion, and support for redundant configurations, the AAI143-H00 delivers reliability and performance even in demanding industrial environments. It also supports integration in safety instrumented systems (SIL2/SIL3).
Key Features
-
16 Analog Inputs: Accepts standard 4–20 mA signals for broad sensor compatibility.
-
High Accuracy: 16-bit resolution with ±0.1% full-scale precision.
-
Isolated Channels: Channel-to-channel isolation ensures data integrity.
-
Hot-Swappable: Can be replaced during operation without system interruption.
-
Redundancy Support: Ideal for mission-critical and high-availability systems.
-
Self-Diagnostics: Built-in monitoring for signal faults and hardware health.
-
Safety Integration: Compliant with SIL2/SIL3 for use in safety instrumented systems.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3kg |
General Information
| Item | Specification |
|---|---|
| Model | AAI143-H00 |
| Manufacturer | Yokogawa |
| Module Type | Analog Input |
| Input Channels | 16 |
| Input Signal | 4–20 mA |
| Mounting | Field I/O Base (FIO) |
| System Compatibility | CENTUM VP / ProSafe-RS |
Performance Parameters
| Item | Specification |
|---|---|
| Resolution | 16-bit |
| Accuracy | ±0.1% of full scale |
| Input Impedance | 250 Ω |
| Sampling Rate | ≤ 100 ms (all channels) |
| Isolation | Optical per channel |
| Signal Range | Configurable 4–20 mA |
| Alarming | Upper/lower limit configurable |
| Output Format | Engineering units or raw values |
Electrical Specifications
| Item | Specification |
|---|---|
| Power Supply | From system backplane |
| Power Consumption | ≤ 2.5 W |
| Input Protection | Over-voltage, short circuit, reverse polarity |
| Max Input Current | 30 mA with protection |
| Redundancy | Supports signal and power redundancy |
Environmental Conditions
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| EMC Compliance | IEC/EN 61000 standards |
| Protection Rating | IP20 (when installed in cabinet) |
Industry Applications
The AAI143-H00 module is widely used across industries due to its precision, reliability, and flexibility:
-
Oil & Gas: Measures key process variables for control and safety systems.
-
Power Generation: Ensures monitoring of critical systems like turbines and boilers.
-
Water Treatment: Captures water quality parameters and supports remote monitoring.
-
Pharmaceutical: Delivers precision control in mixing and fermentation processes.
-
Metallurgy: Operates reliably under high EMI environments.
-
System Integration: Used in SIL-certified systems for safety-critical applications.
With its versatile functionality and robust design, the AAI143-H00 is a vital part of Yokogawa’s control infrastructure.
