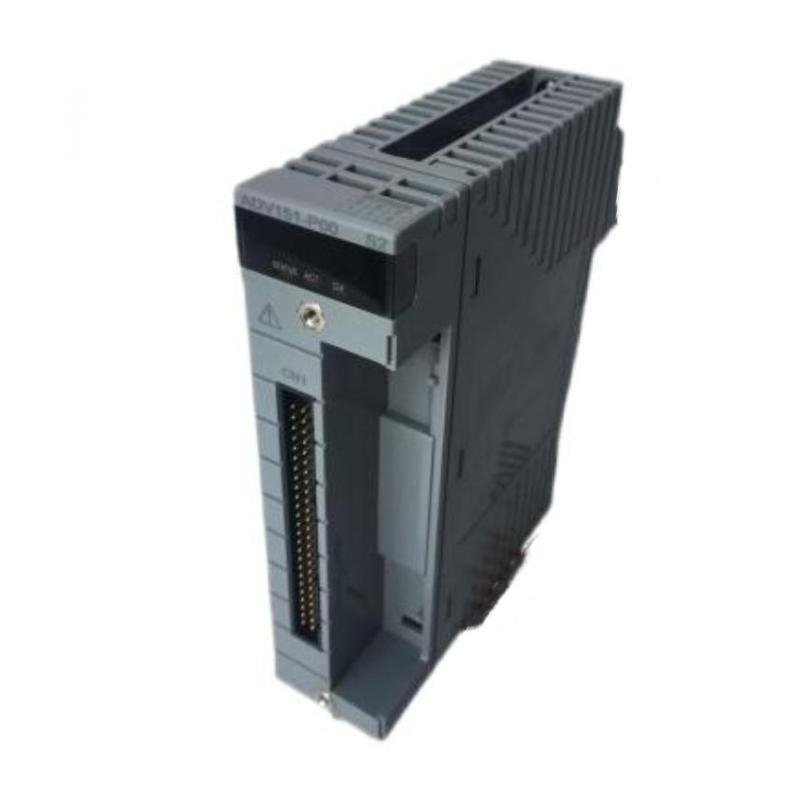

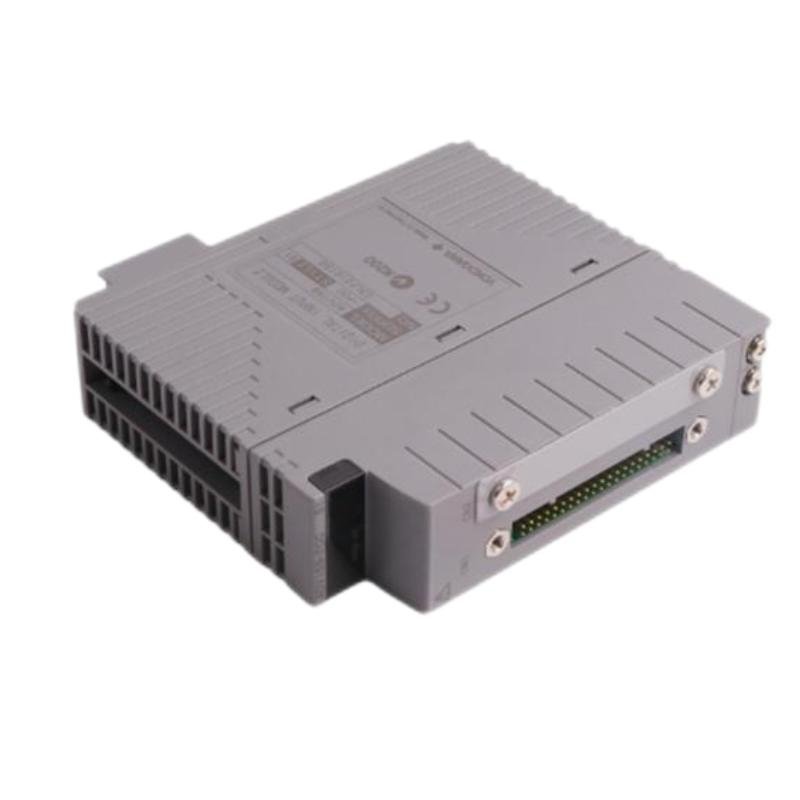

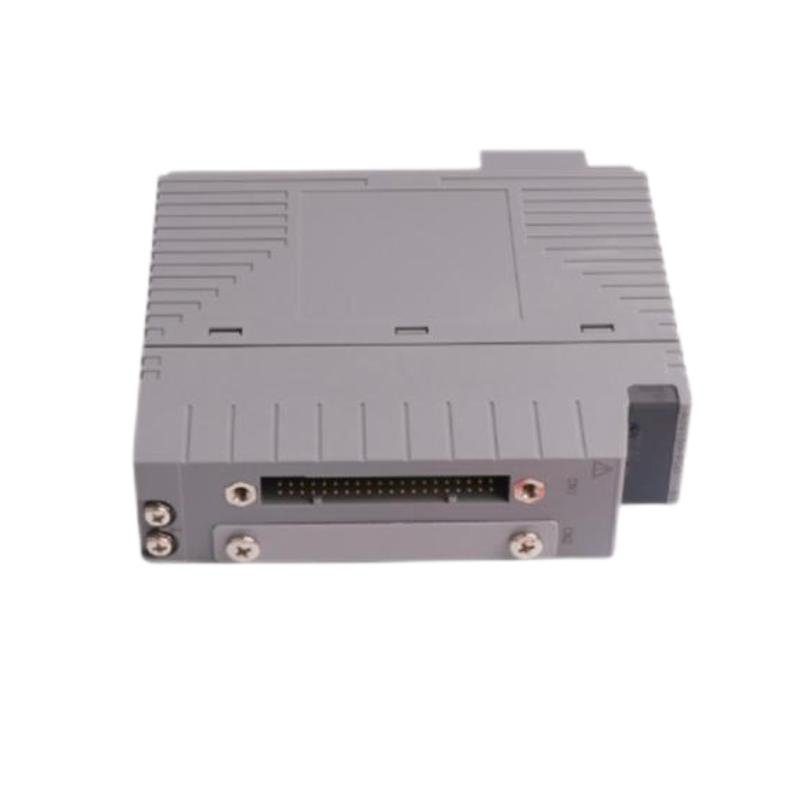

Yokogawa ADV159-P00 Digital Input Modules
Manufacturer: Yokogawa
Product Number: ADV159-P00
Category: Digital Input Module
Number of Channels: 64 high-density digital inputs
System Compatibility: CENTUM VP and CS 3000 DCS
Function: Captures discrete input signals from field devices such as switches, pushbuttons, and relay contacts
Application: High-density digital input acquisition in DCS environments
Product Description
The Yokogawa ADV159-P00 Digital Input Module is a high-density 64-channel input module designed for use with Yokogawa’s CENTUM VP and CS 3000 distributed control systems (DCS). This module captures discrete input signals from field devices such as switches, sensors, and relays and transfers them to the control system for monitoring and processing.
Engineered for industrial reliability and seamless integration, the ADV159-P00 is ideal for applications requiring large-scale digital input monitoring. It offers fast signal response, noise immunity, and channel-level isolation, making it suitable for demanding environments and safety-critical applications.
Key Features
-
High Channel Density: Supports up to 64 digital input channels per module
-
Fast Signal Processing: Quick response time suitable for real-time monitoring
-
Channel Isolation: Each input channel is isolated for improved signal integrity and safety
-
Hot Swappable: Allows maintenance without system shutdown
-
Integrated Diagnostics: Monitors channel status and health for predictive maintenance
-
Seamless DCS Integration: Designed specifically for CENTUM VP/CS 3000 systems
-
Industrial-Grade Reliability: Built for harsh environments with long operational life
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 127.2 × 130 × 32.8 mm |
| Weight | 0.4 kg |
General Information
| Item | Specification |
|---|---|
| Model Number | ADV159-P00 |
| Manufacturer | Yokogawa Electric Corporation |
| Product Type | Digital Input Module |
| Number of Channels | 64 Channels |
| Mounting Method | Mounted on N-IO base plate |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 V DC (nominal) |
| Input Voltage Range | 18–30 V DC |
| Input Type | Sink Type |
| Input Impedance | Approx. 4.7 kΩ |
| Response Time | 1 ms |
| Isolation | Optical isolation, channel-to-channel |
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP20 |
| Power Supply | Supplied via base unit |
Industry Applications
-
Manufacturing Automation: Detects inputs from various machinery and operator panels
-
Power Generation: Monitors control switches and safety interlocks in turbines and substations
-
Oil & Gas: Tracks equipment states in refining, pumping, and drilling operations
-
Chemical Processing: Interfaces with process safety systems and digital sensors
-
Water Treatment: Handles input signals from level switches, pumps, and valves
-
Pharmaceutical: Used in batch and process control systems for GMP-compliant manufacturing
The Yokogawa ADV159-P00 Digital Input Module is a robust and efficient solution for capturing a high volume of discrete inputs in industrial automation systems. Its high channel count, isolation, and fast response time ensure optimal performance in mission-critical applications.
