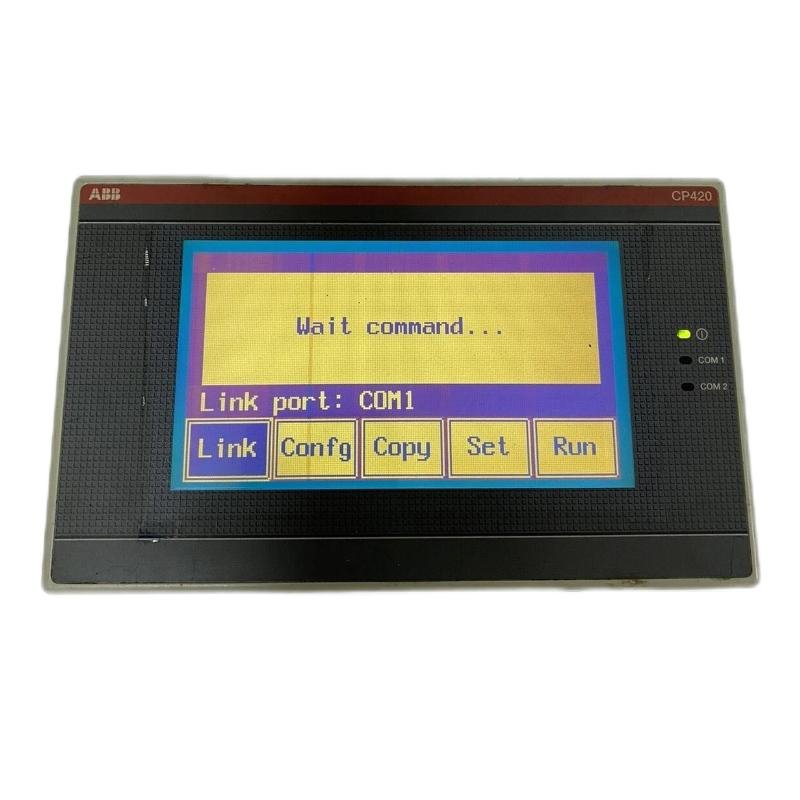

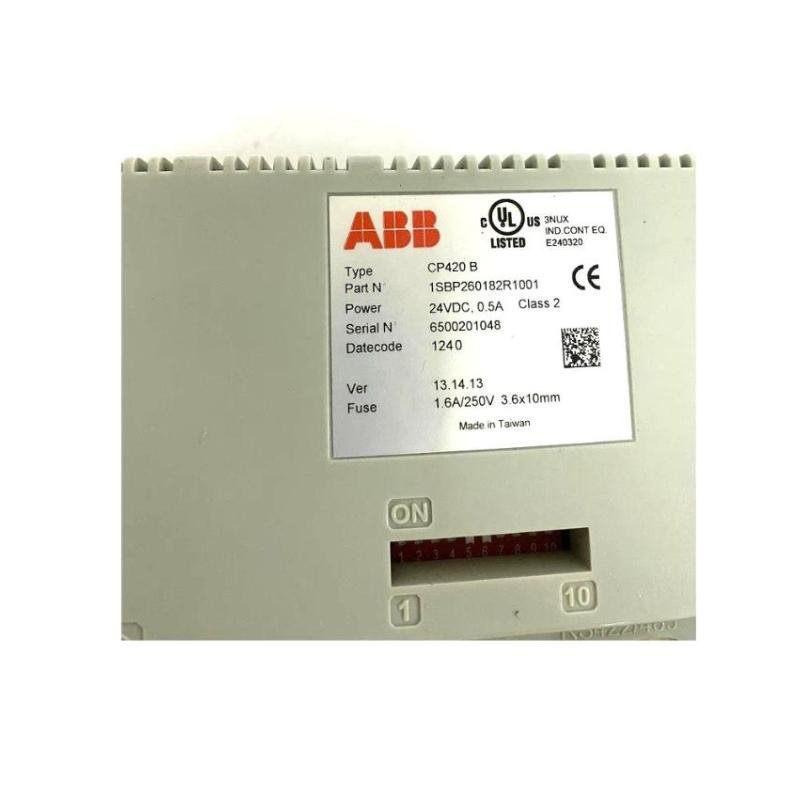

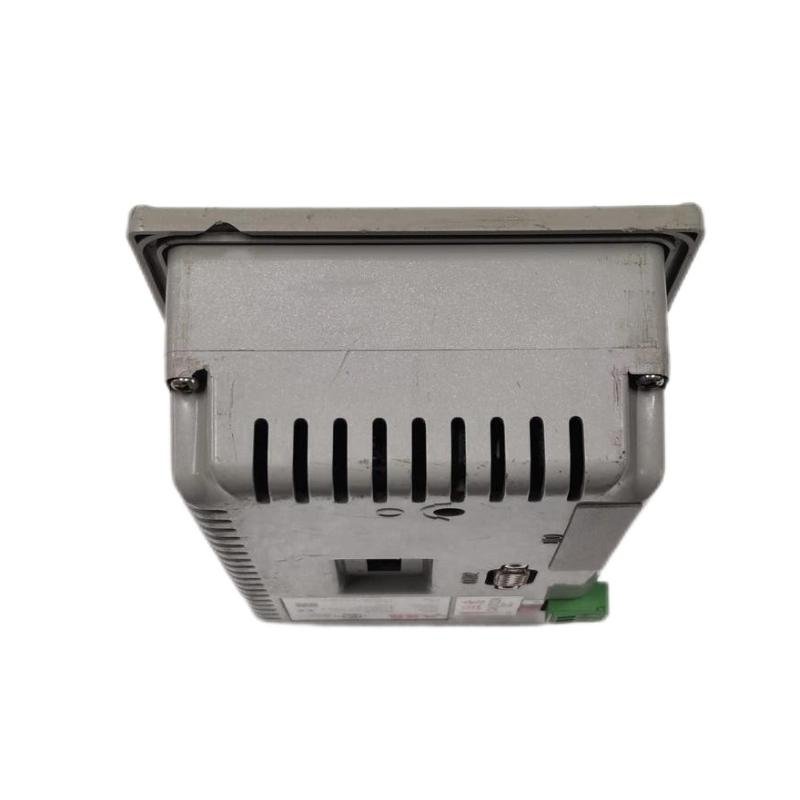

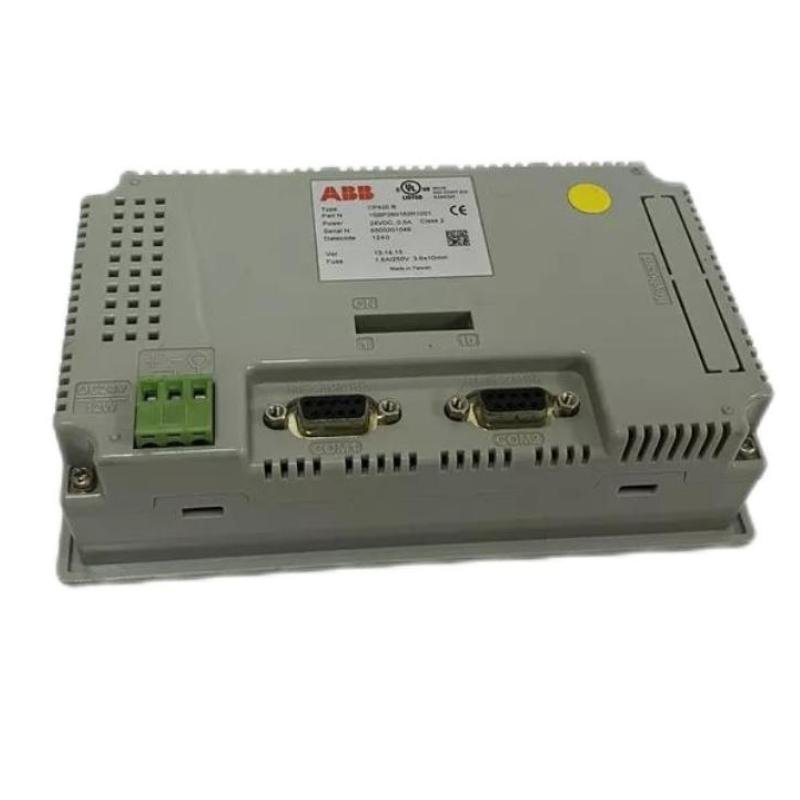

ABB CP420B 1SBP260182R1001 Touch Screen
Manufacturer: ABB
Product Number: CP420B (1SBP260182R1001)
Category: Touch Screen HMI (CP400 Series)
Function: High-performance human-machine interface (HMI) for intuitive and efficient operation
Application: Industrial automation systems requiring operator interaction
Product Description
The ABB CP420B 1SBP260182R1001 Touch Screen is a high-performance human-machine interface (HMI) designed to deliver intuitive and efficient operation for industrial automation systems. Featuring a large, vibrant display, this touch screen interface allows operators to seamlessly monitor and control industrial processes in real time. With its rugged design, the CP420B is suitable for use in harsh environments and ensures reliable operation in a variety of industrial applications.
The CP420B is designed to provide superior system integration, enhanced operator usability, and real-time data visualization, making it an essential component for improving productivity, reducing downtime, and increasing operational efficiency.
Key Features
-
Large High-Resolution Display: Provides clear, detailed visualization of system data, improving decision-making capabilities
-
User-Friendly Touchscreen Interface: Simplifies navigation with a highly responsive capacitive touchscreen for fast interaction
-
Industrial-Grade Durability: Built to withstand harsh industrial environments, including temperature extremes, vibrations, and dust
-
Versatile Communication Options: Supports multiple communication protocols for seamless integration with automation systems
-
Energy-Efficient: Designed with power-saving features to minimize energy consumption while maintaining performance
-
Flexible Mounting: Can be easily mounted on panels or in enclosures to fit a variety of industrial setups
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 96 x 96 x 41 mm |
| Weight | 0.21 kg |
Module Information
| Item | Specification |
|---|---|
| Model Number | CP420B 1SBP260182R1001 |
| Part Number | 1SBP260182R1001 |
| Module Type | Touch Screen |
| Mounting | Panel Mountable |
Electrical and Physical Characteristics
| Item | Specification |
|---|---|
| Operating Voltage | 24 V DC |
| Power Consumption | < 20 W |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity | 5% to 95% RH, non-condensing |
| Protection Class | IP65 |
Display and Interface
| Item | Specification |
|---|---|
| Screen Type | TFT LCD |
| Display Resolution | 1024 × 768 pixels |
| Touch Technology | Capacitive Touch |
| Communication Ports | 1 Ethernet port, 2 USB ports, 1 Serial port |
Industry Applications
-
Manufacturing Automation: Ideal for controlling machinery, robotics, and automated production lines in manufacturing plants
-
Process Control: Suitable for applications in industries such as chemical, food and beverage, and pharmaceuticals for real-time monitoring and process optimization
-
Energy Management: Used to monitor and control power systems, enhancing the efficiency of energy generation and distribution facilities
-
Building Automation: Integrated into HVAC, lighting, and security systems for centralized control of building operations
-
Water and Wastewater Treatment: Ensures effective management of water treatment processes, including pumps, filtration systems, and chemical dosing
The ABB CP420B 1SBP260182R1001 Touch Screen is designed to optimize operator efficiency, improve system control, and provide reliable performance in demanding environments. Its high-resolution display, rugged design, and flexible integration options make it the ideal choice for industrial automation applications that require advanced HMI capabilities.
