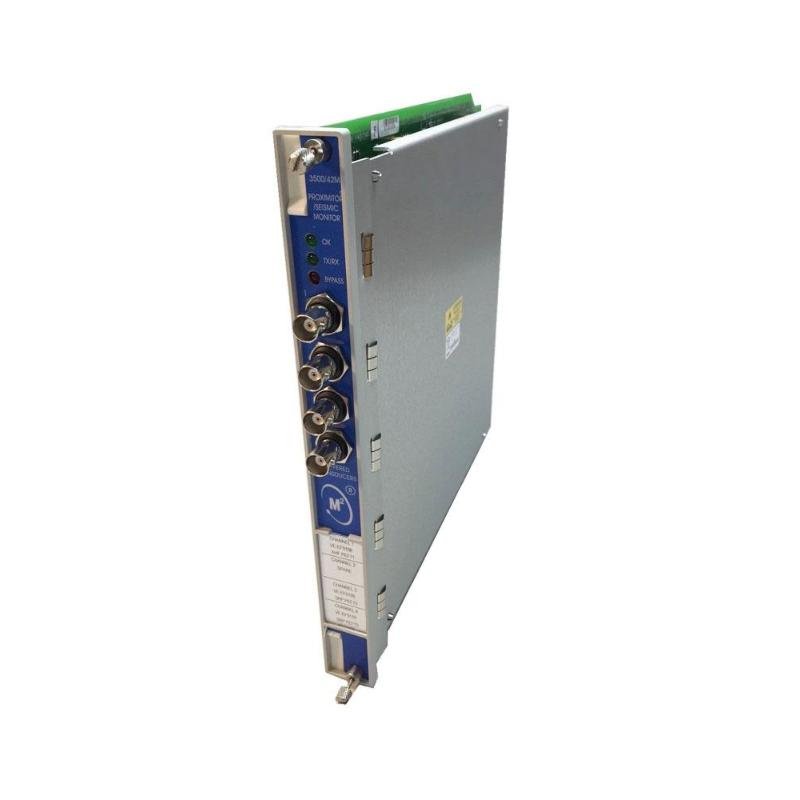

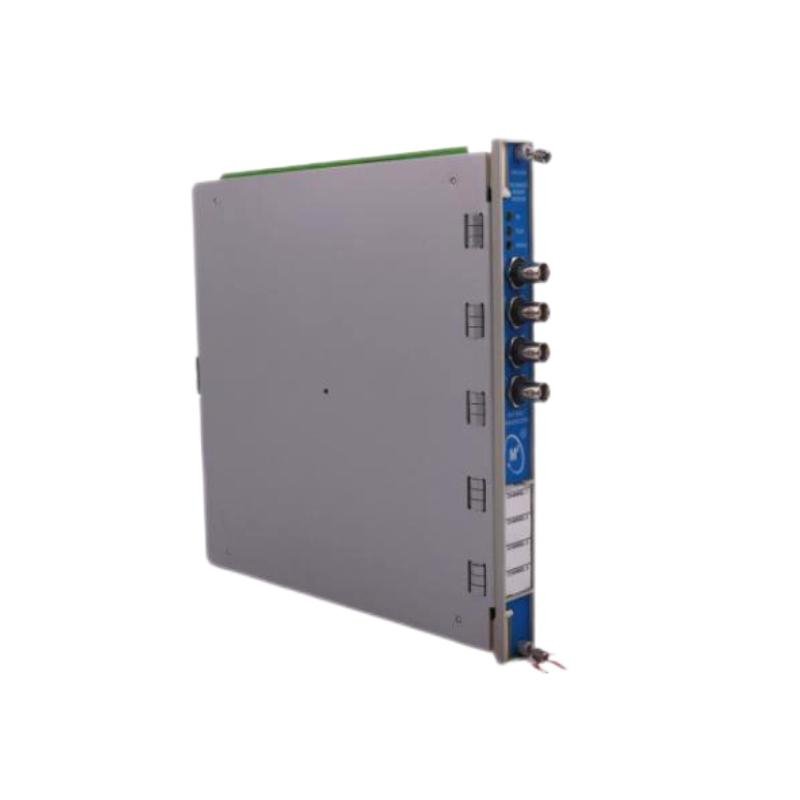

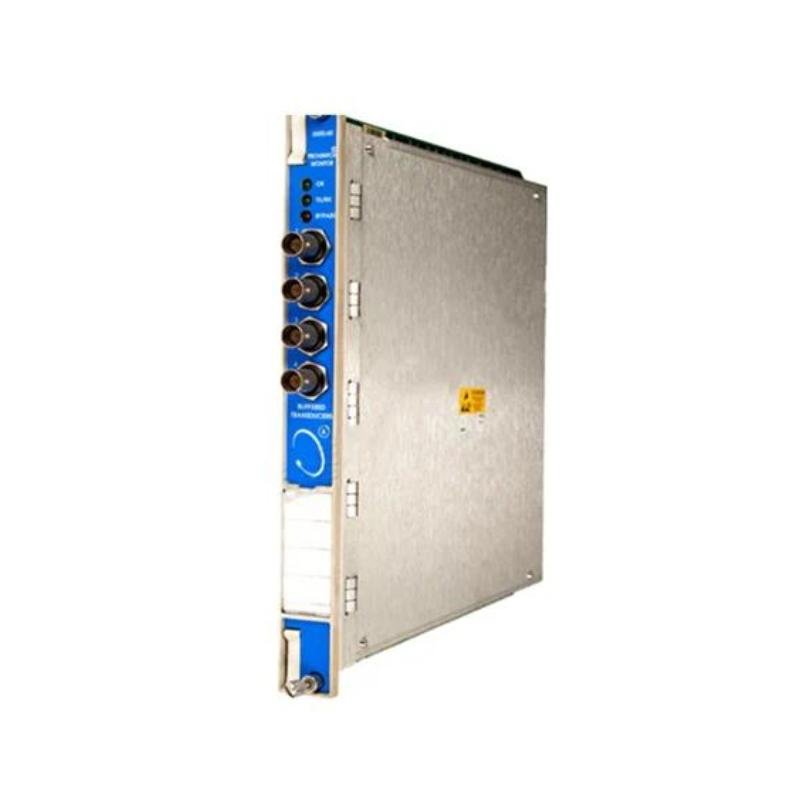

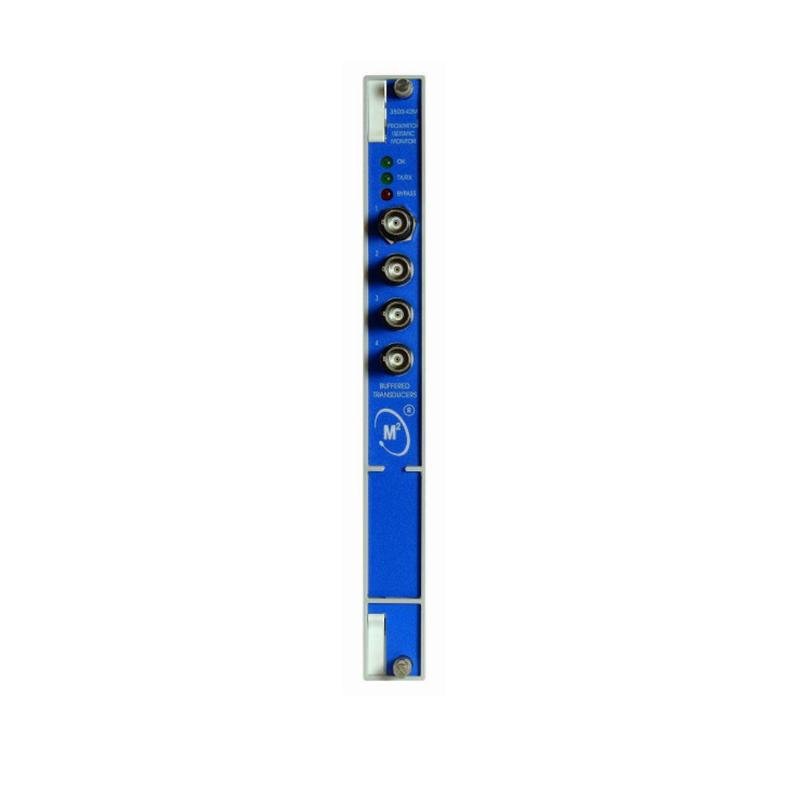

Bently Nevada 3500/42M 176449-02 Seismic Monitor Pre-Processor
Manufacturer: Bently Nevada
Product Number: 3500/42M (176449-02)
Category: Seismic Monitor Pre-Processor (3500 series)
Function: Advanced seismic monitoring for industrial asset protection
Input Channels: 4 seismic inputs (typical)
Frequency Range: 0.5-100 Hz
System Compatibility: Bently Nevada 3500 series
Product Description
The Bently Nevada 3500/42M 176449-02 Seismic Monitor Pre-Processor is an advanced seismic monitoring device that is designed for use in industrial asset protection systems. Part of the Bently Nevada 3500 series, the 3500/42M is specifically engineered for detecting seismic events that may indicate an anomaly or critical situation in equipment or infrastructure. This pre-processor integrates seamlessly into the Bently Nevada 3500 system, offering real-time seismic event detection, data analysis, and diagnostics, ensuring that critical machinery operates safely and efficiently.
The 3500/42M provides a robust, reliable solution for applications where seismic activity or shock events are significant indicators of equipment health. It is ideal for monitoring critical machinery in industries such as power generation, oil & gas, petrochemical, and manufacturing, where even minor seismic disturbances could signify mechanical failures or other operational risks.
This pre-processor can interface with various sensors such as accelerometers, geophones, and other seismic detectors, providing real-time data that allows operators to make informed decisions regarding the health of their machinery. The 3500/42M also features advanced diagnostics capabilities, enabling maintenance teams to quickly identify potential issues before they develop into costly or hazardous problems.
Key Features
- Seismic Event Detection: Monitors seismic activity, providing early detection of seismic events that could indicate machinery anomalies or risks.
- Real-Time Monitoring: Continuously tracks seismic data, providing real-time feedback to operators and control systems.
- Sensor Integration: Compatible with various seismic sensors, including accelerometers, geophones, and vibration sensors.
- Advanced Diagnostics: Offers in-depth diagnostic capabilities to detect issues with seismic sensors or potential failures in monitored equipment.
- Integration with 3500 System: Seamlessly integrates with the Bently Nevada 3500 series, enabling full system compatibility and advanced data analysis.
- Field-Proven Reliability: Designed for harsh industrial environments, the 3500/42M is built to withstand extreme conditions and offer long-term reliability.
- Customizable Alerts: Configurable alarm thresholds and warning signals allow for tailored responses to seismic events based on operational needs.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | Bently Nevada 3500/42M 176449-02 |
| Type | Seismic Monitor Pre-Processor |
| Sensor Inputs | Compatible with accelerometers, geophones, and seismic detectors |
| Output Channels | 2 relay outputs for alarm indications |
| Input Range | ±10 VDC, 4-20 mA (depending on sensor type) |
| Power Supply | 24V DC ±20% |
| Mounting Type | Rack-Mountable |
| Dimensions (W x H x D) | 241.3 x 24.4 x 241.8mm |
| Weight | 0.91kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Protection Class | IP20 |
| Isolation Voltage | 1500V (network to field I/O) |
| Diagnostic Features | Detailed sensor diagnostics, alarm status, and system health monitoring |
| LED Indicators | Power, communication, and event status indicators |
Additional Features
- Highly Reliable in Harsh Environments: Built to operate in demanding industrial environments, the 3500/42M is resistant to dust, moisture, and vibrations, ensuring high performance even in challenging conditions.
- Customizable Alarm Thresholds: Set user-defined thresholds for seismic event detection, allowing for tailored alarm settings to meet specific operational requirements.
- Real-Time Data Collection: Continuously monitors seismic data, providing immediate feedback on equipment health and environmental conditions.
- Remote Diagnostics: Enables remote diagnostics and troubleshooting via the Bently Nevada monitoring software.
- Low Power Consumption: Designed to operate efficiently, with minimal power consumption, ensuring it can be easily integrated into energy-conscious systems.
