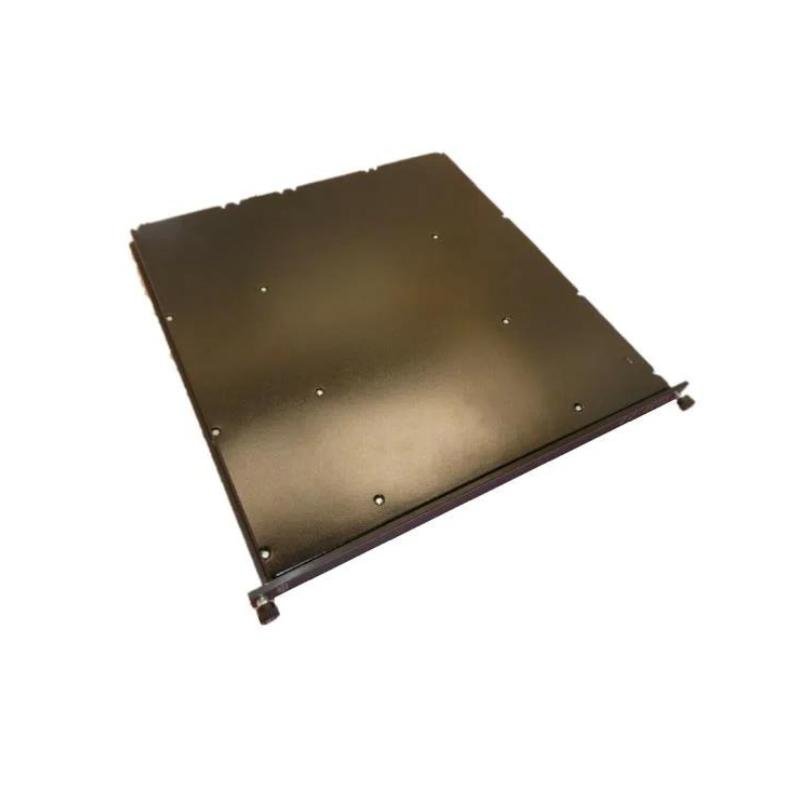

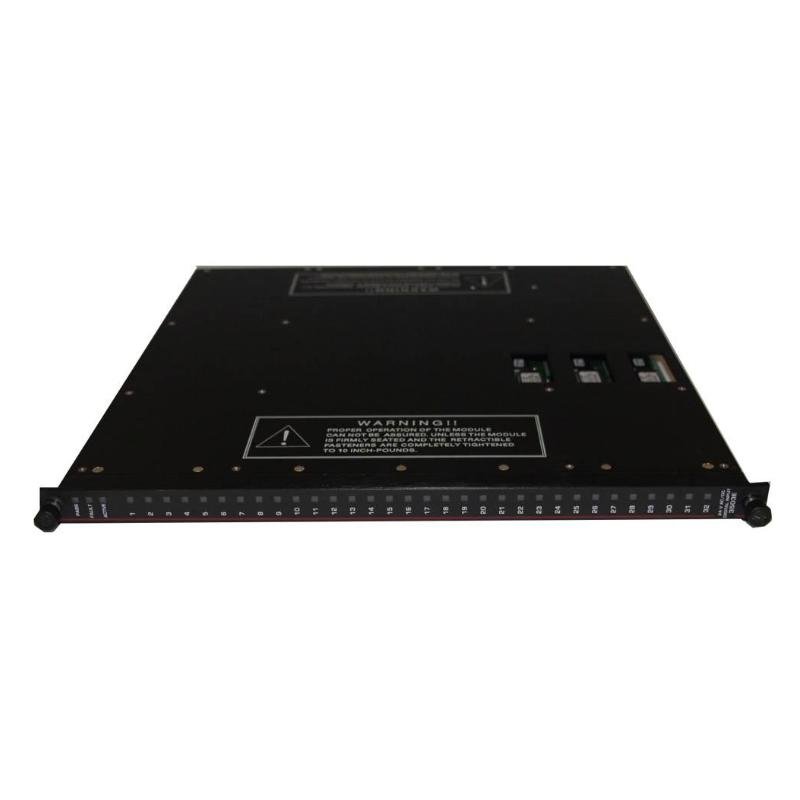

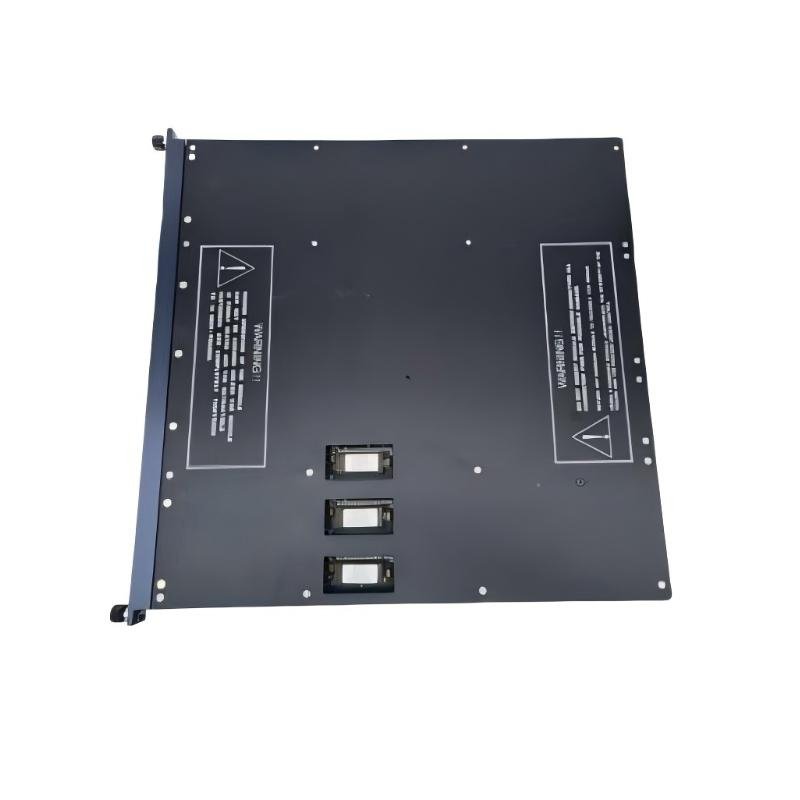

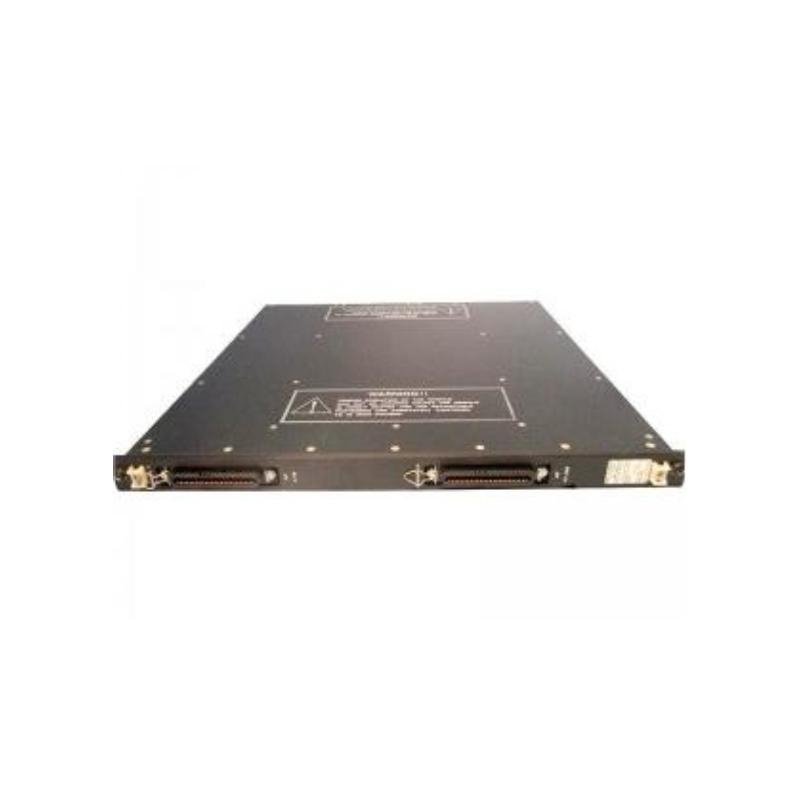

Triconex 3533E 24V AC/DC Digital Input Module
Manufacturer: Triconex (Schneider Electric)
Product Number: 3533E
Category: 24V AC/DC Digital Input Module (Tricon safety systems)
Number of Channels: 16
Input Voltage: 24V AC/DC
Architecture: Fault-tolerant, Triple Modular Redundancy (TMR)
Application: Critical input functions for industrial control in safety systems
Product Description
The Triconex 3533E is a 24V AC/DC digital input module designed for use with Tricon safety systems. The module is highly reliable and fault tolerant, providing critical input functions for industrial control applications. It provides 16 discrete inputs with diagnostic capabilities to ensure safety and operational integrity in harsh industrial environments.
The Triconex 3533E module is ideal for process industries where safety and uptime are critical, such as chemical plants, power generation facilities, and oil and gas operations. Its high-performance design enables fast response times and seamless integration into complex control systems.
Key Features
- 16 digital inputs: Support 24V AC and DC signals, suitable for a variety of applications.
- Wide operating voltage range: The module accepts both AC and DC input signals, ensuring compatibility with a wide range of field devices.
- Advanced Diagnostics: Integrated self-test and diagnostic features enhance system reliability.
- Redundant design: Provides redundancy features essential for mission-critical applications to ensure uninterrupted operation.
- HMI Interface: Easy-to-use configuration and diagnostics interface.
Technical specifications
| scope | value |
|---|---|
| model | Triconex 3533E |
| Input Type | 16 digital inputs (24V AC/DC) |
| Input voltage range | 24V AC/DC ±20% |
| Input Current | 4mA @ 24V DC (typical) |
| Input signal type | Dry contact, wet contact, DC voltage |
| Isolation voltage | 250V AC RMS (for system input) |
| Response time | Input signal changes 10ms |
| Operating temperature | -40°C to +70°C |
| Storage temperature | -40°C to +85°C |
| Relative humidity | 5% to 95% non-condensing |
| weight | 1.851 kg |
| Dimensions (W x H x D) | 115 mm x 230 mm x 50 mm |
| Installation Type | DIN Rail |
| Signal input protection | Reverse polarity, overvoltage protection |
| Diagnostic coverage | Provides comprehensive diagnostic coverage and fault reporting |
Other features
- Self-diagnostics: Continuously monitors input signals and module status.
- Redundant power supply: Optional redundant power supply capability ensures reliability.
- Safety Certified: Designed to meet international safety standards including IEC 61508 and SIL 3 compliance for safety-critical systems.
- User-friendly interface: Configuration and diagnostics can be easily performed via the integrated HMI.
