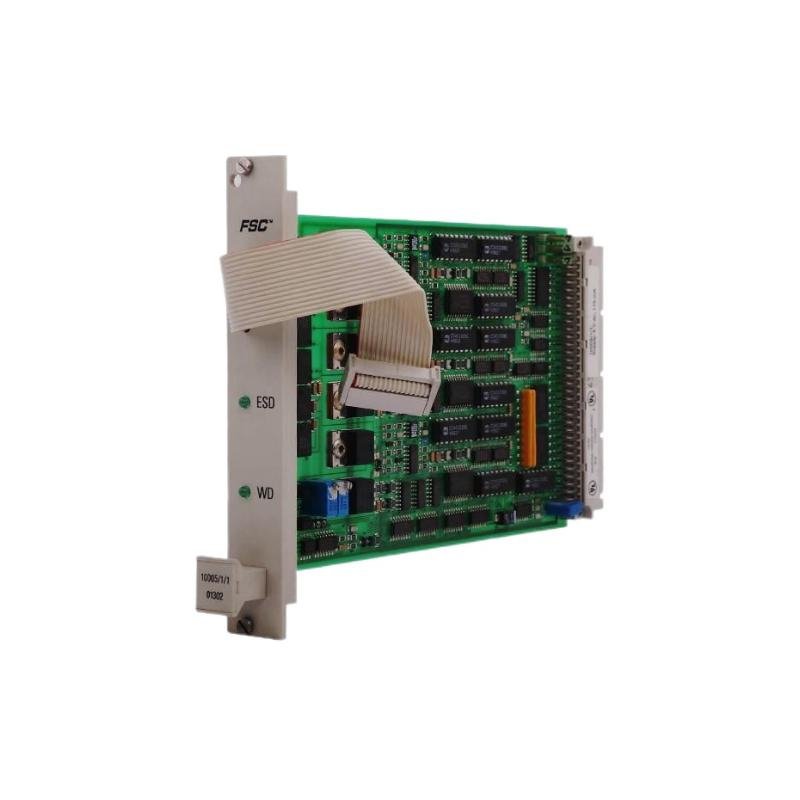

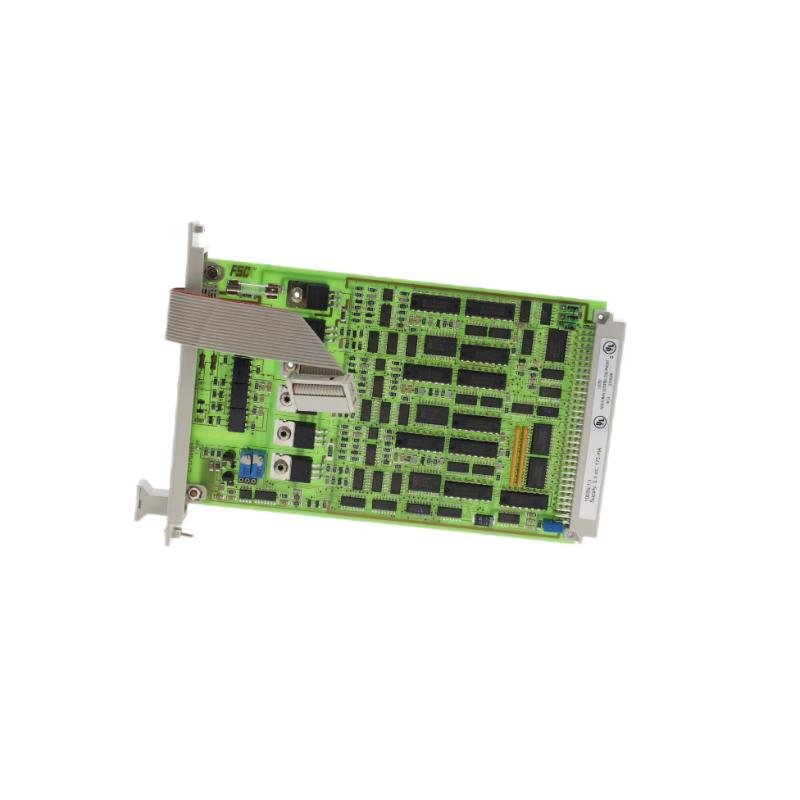

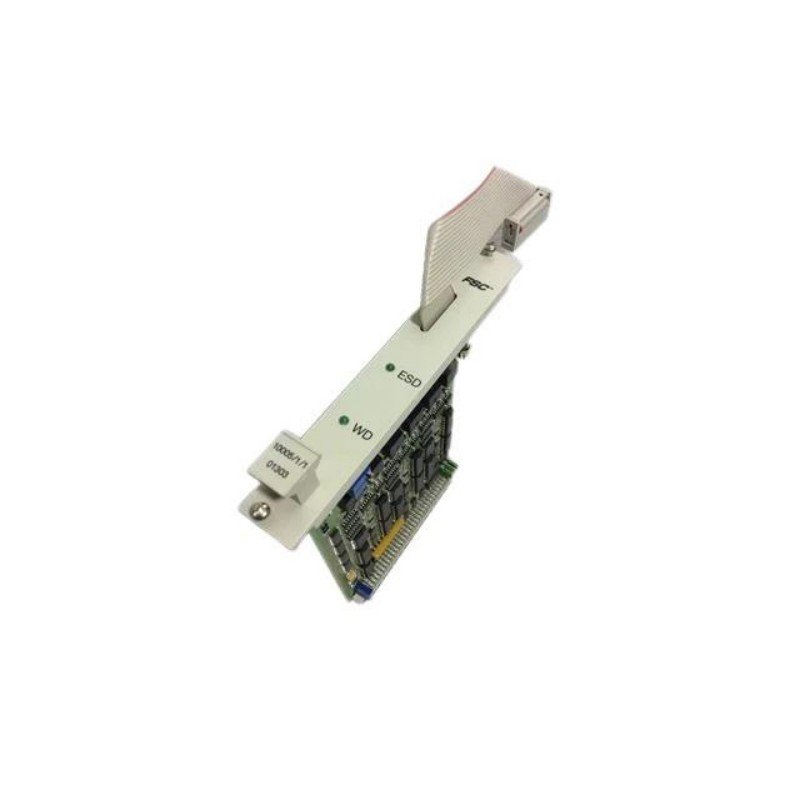

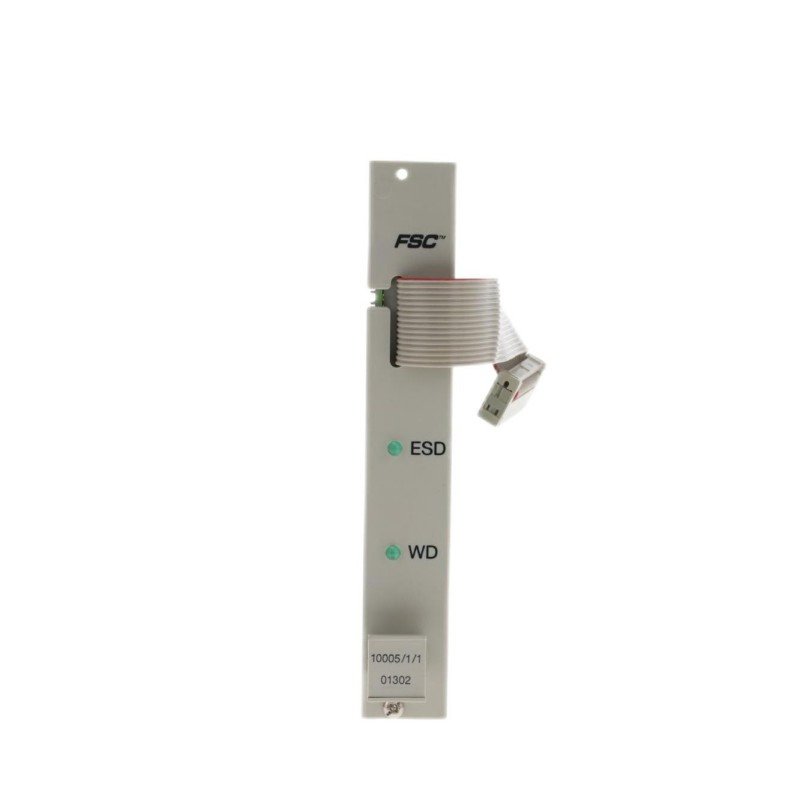

Honeywell 10005/1/1 Watch Dog Module
Manufacturer: Honeywell
Product Number: 10005/1/1
Category: Watch Dog Module (WD Module)
System Compatibility: Honeywell industrial automation and control systems
Function: Monitors and ensures normal operation of system components, providing watchdog functionality for fault detection
Product Description
The Honeywell 10005/1/1 Watchdog Module (WD Module) is a vital system monitoring component used extensively in industrial automation and control systems. Designed for high reliability, it effectively monitors and ensures the normal operation of systems, identifying and reporting any potential faults or irregularities in real time. This module offers exceptional fault tolerance, making it suitable for a variety of industrial applications that require high availability and reliability.
The Watchdog module is designed to monitor system health and issue alert signals, preventing downtime or control failure caused by system unresponsiveness. It complies with multiple international safety standards, including CE, TÜV, and UL certifications, ensuring stable performance in demanding industrial environments.
Key Features
- Reliable Monitoring: Real-time monitoring of the control system’s operational status, ensuring timely actions are taken when faults occur.
- Low Power Consumption: Consumes only 5 Vdc 175 mA (excluding WDGOUT output current), improving energy efficiency.
- Compact Size: With a space requirement of 4 TE, 3 HE (4 HP, 3U), it is ideal for control cabinets or racks with limited space.
- Low Ripple Requirement: Ensures stability with a ripple content of < 50 mV p-p.
- Multiple Certifications: Certified by CE, TÜV, and UL, meeting global industrial standards for safety.
- High Compatibility: Widely applicable in various industrial control systems, offering flexibility and adaptability.
Technical Specifications
Dimensions & Weight
| Parameter Name | Value |
| Dimensions (W x H x D) | 20.32 × 128.4 × 160 mm |
| Weight | 0.45 kg |
General Information
| Parameter Name | Value |
| Product Model | 10005/1/1 |
| Product Type | Watchdog Module (WD) |
| Voltage Requirement | 5 Vdc |
| Current Requirement | 175 mA (excluding WDGOUT output current) |
| Ripple Content | < 50 mV p-p |
| Certifications | CE, TÜV, UL |
Electrical Performance
| Parameter Name | Value |
| Input Voltage | 5 Vdc |
| Input Current | 175 mA (excluding WDGOUT output current) |
| Ripple Content | < 50 mV p-p |
Environmental Requirements
| Parameter Name | Value |
| Ambient Temperature | -20°C to +60°C |
| Relative Humidity | 5% to 95% (non-condensing) |
Industry Applications
The Honeywell 10005/1/1 Watchdog Module is ideal for a wide range of industrial control systems, particularly in applications that require high reliability and fault tolerance. Typical applications include but are not limited to:
- Automation Control Systems: Ensures systems are monitored and faults are addressed promptly in automated equipment.
- Energy Management Systems: Monitors power and energy equipment to ensure continuous stable operation.
- Manufacturing and Factory Automation: Widely used in production lines, robotic control systems, and other automated systems requiring high stability.
- Process Control Systems: Used in chemical, oil, and gas industries to ensure safe and stable process control.
- Transportation and Traffic Control: Ensures no system failure in high-security transportation control systems, such as railways and aviation.
