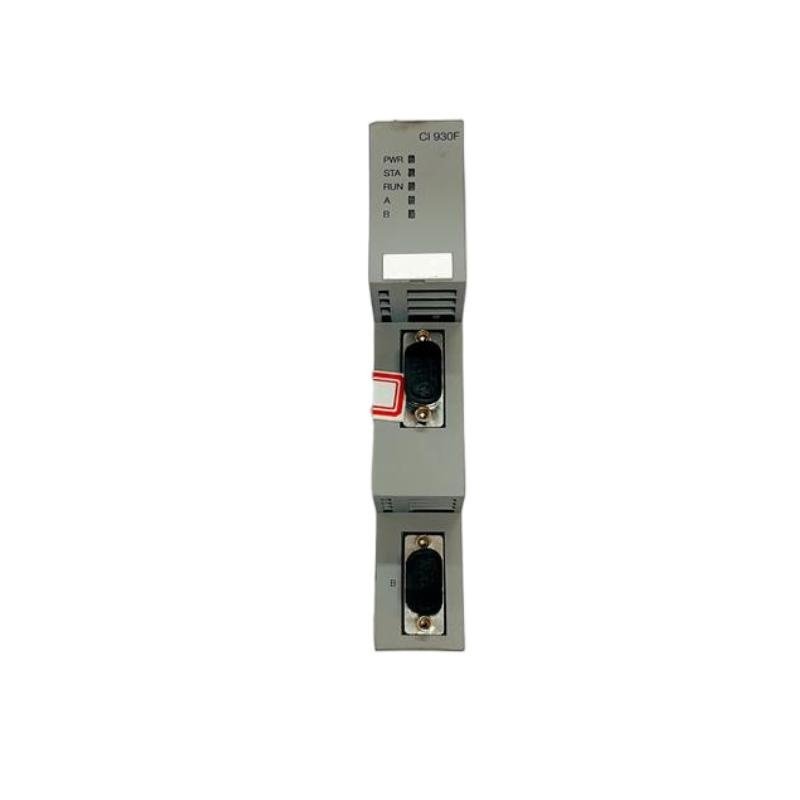

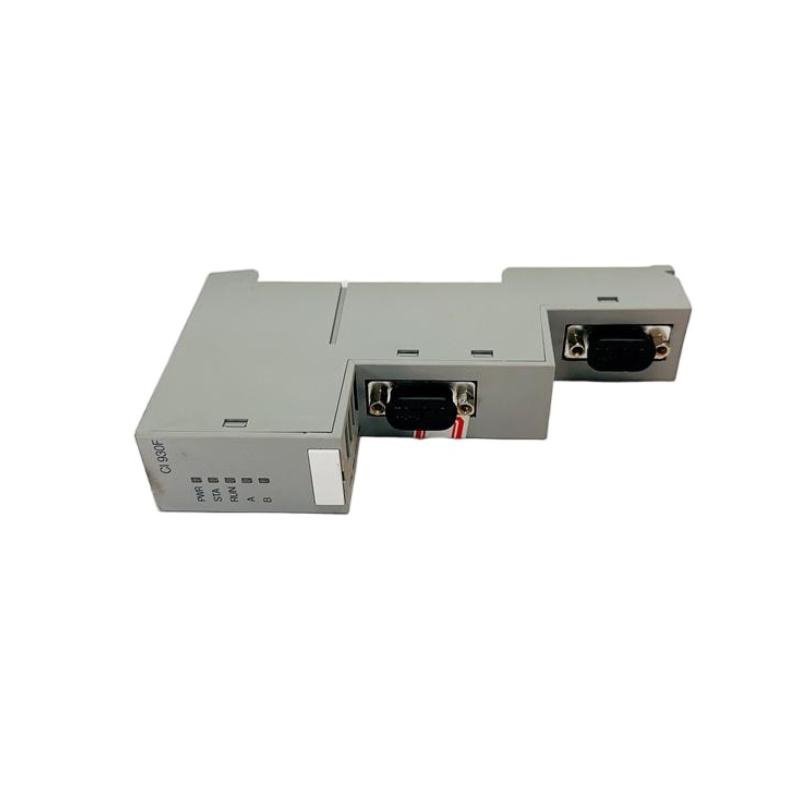

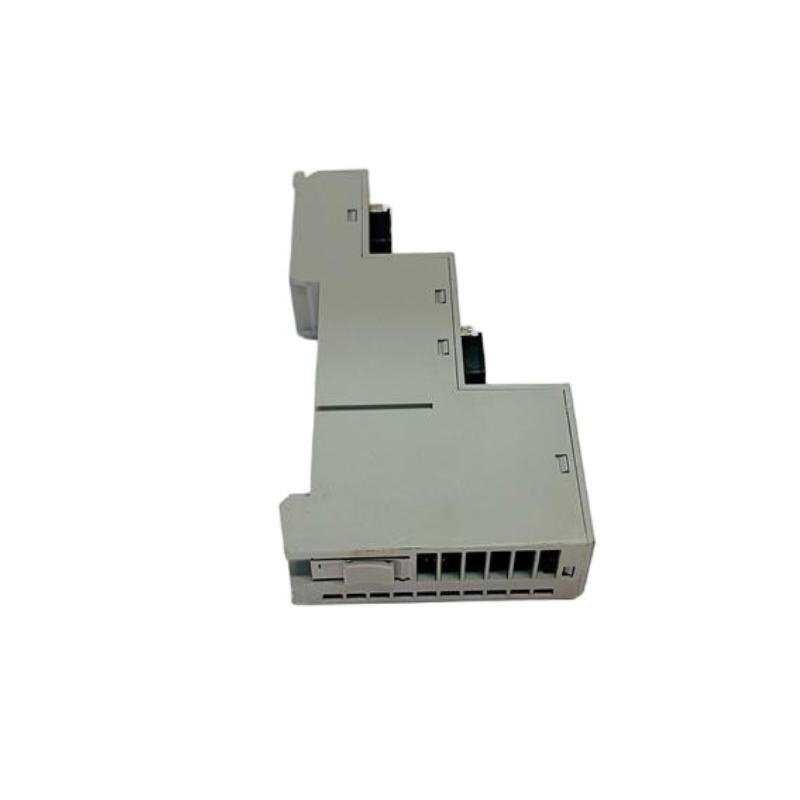

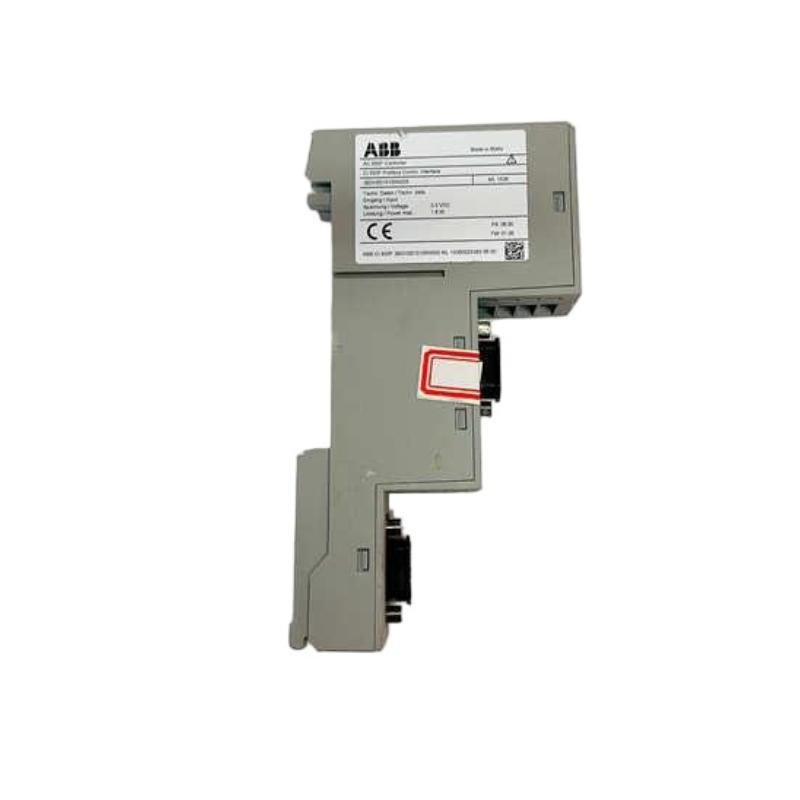

ABB CI930F 3BDH001010R0005 Communication Interface Module
Manufacturer: ABB
Product Number: CI930F (3BDH001010R0005)
Category: Communication Interface Module (Advant Controller 400 Series)
System Compatibility: ABB Advant Controller 400 Series
Function: Enables communication between Advant Controller and peripheral systems
Product Description
The ABB CI930F 3BDH001010R0005 Communication Interface Module is designed to enable seamless communication between ABB’s Advant Controller 400 Series and peripheral systems. It functions as an essential interface module for connecting distributed control components, supporting high-speed, dependable data exchange. With a compact and rugged form factor, the CI930F ensures stable operation even in demanding industrial environments such as power generation, petrochemical, and process automation.
Key Features
-
High-Speed Communication–Supports fast and stable data transfer for real-time control systems.
-
Advant Controller 400 Compatibility–Specifically designed for integration with the Advant Controller 400 Series.
-
Robust Industrial Design–Engineered to operate reliably under harsh conditions such as electrical noise and temperature extremes.
-
DIN Rail Mounting–Enables convenient installation and maintenance within control cabinets.
-
Error Detection Mechanisms–Includes diagnostics and fault detection features for enhanced system reliability.
-
Modular System Architecture–Facilitates flexible control system expansion and configuration.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 152 × 28 × 85 mm |
| Weight | 0.115 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 24 VDC (nominal) |
| Power Consumption | < 3 W |
| Isolation | Galvanic isolation between communication and system bus |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% RH (non-condensing) |
| Protection Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Controller | Advant Controller 400 Series |
| Communication Protocol | Proprietary ABB Advant Fieldbus or ModuleBus |
| Mounting Type | DIN rail |
Industry Applications
-
Power Generation–Ensures secure communication between control units in turbine and boiler management.
-
Petrochemical–Supports critical field communication in refinery and chemical plant systems.
-
Water & Wastewater–Facilitates reliable process data transmission in treatment plants.
-
Pulp and Paper–Enables control integration for large-scale automated paper production systems.
-
Manufacturing–Offers modular communication for distributed control in assembly lines and robotic systems.
The ABB CI930F 3BDH001010R0005 Communication Interface Module delivers stable, fast, and reliable communications for ABB Advant systems, making it a key component in complex, mission-critical automation environments.
