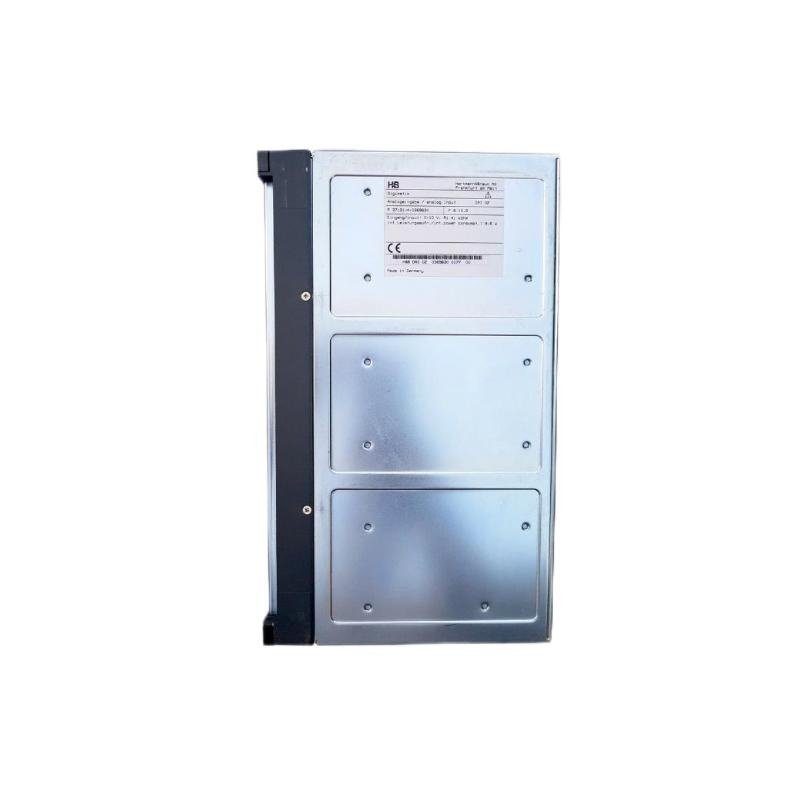

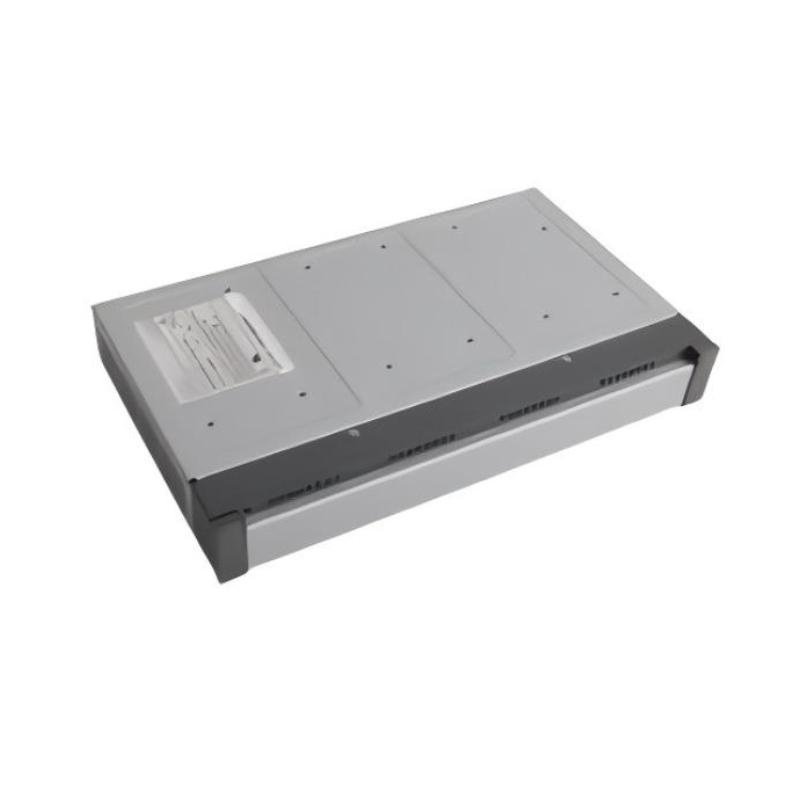

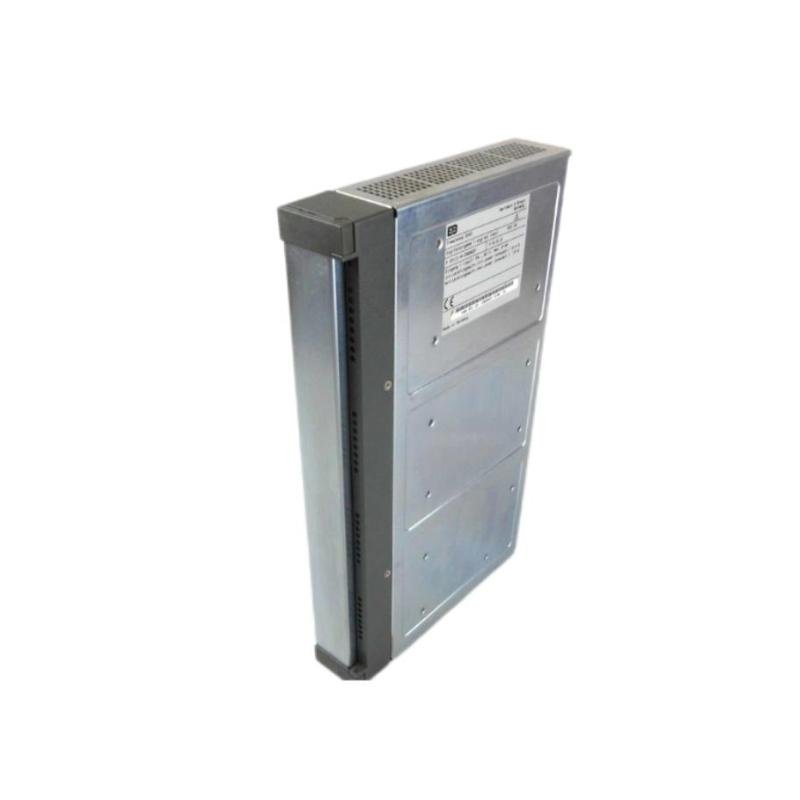

ABB DAI04 0369632M Analog Input Modules
Manufacturer: ABB
Product Number: DAI04 (0369632M)
Category: Analog Input Module
Number of Channels: 4 (typical)
Input Signal Types: 4-20 mA, 0-10 V
Resolution: 12-bit (typical)
System Compatibility: ABB industrial automation systems
Product Description
The ABB DAI04 0369632M Analog Input Module is a high-performance module designed to interface with various analog field devices and transmit precise analog signals to control systems in industrial automation applications. This module is engineered for use in ABB’s distributed control systems (DCS) and programmable logic controllers (PLC). The DAI04 module ensures reliable and accurate measurement of voltage and current signals, providing crucial data for process control, monitoring, and decision-making in industrial environments. With robust construction and high accuracy, this module is well-suited for demanding applications in industries such as manufacturing, power generation, and oil & gas.
Key Features
-
High Accuracy–Provides precise analog signal conversion for voltage and current inputs, ensuring reliable data for process control
-
Wide Input Range–Supports a wide range of input signals (0–10 V, 4–20 mA), making it highly flexible for different applications
-
Signal Conditioning–The module conditions the input signals to ensure clean, noise-free data transmission to the control system
-
Compact Design–Optimized for space efficiency, the module fits easily into control cabinets and systems with limited space
-
High-Quality Construction–Built to withstand the rigors of industrial environments, offering long-term reliability and durability
-
Easy Integration–Seamlessly integrates with ABB control systems, providing a plug-and-play solution for expanding or upgrading automation systems
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 326 x 216 x 20 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Voltage | 0–10 V (voltage), 4–20 mA (current) |
| Input Impedance | 250 kΩ (voltage), 50 Ω (current) |
| Output Signal | 4–20 mA (current) or 0–10 V (voltage) |
| Accuracy | ±0.1% of full scale |
| Conversion Time | 10 ms per channel |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | Up to 5 g (in application) |
| Enclosure Rating | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Compatible with ABB DCS and PLC systems |
| Mounting | DIN Rail or Panel Mounted |
Industry Applications
-
Industrial Automation–Used in automation systems to accurately measure and transmit analog signals from sensors, valves, and other field devices
-
Power Generation–Essential for precise measurement and control in power plants, ensuring efficient operation of critical systems
-
Oil & Gas–Provides accurate signal measurement in harsh environments, enabling reliable monitoring and control of industrial processes
-
Manufacturing–Ensures accurate process control in automated manufacturing lines, enhancing production efficiency and quality control
-
Building Automation–Used in HVAC and other building control systems for reliable temperature, humidity, and pressure monitoring
The ABB DAI04 0369632M Analog Input Module is an essential component for ensuring accurate and reliable analog signal measurement in industrial control systems. Its versatility, high accuracy, and seamless integration with ABB control platforms make it an ideal solution for a wide range of industrial applications.
