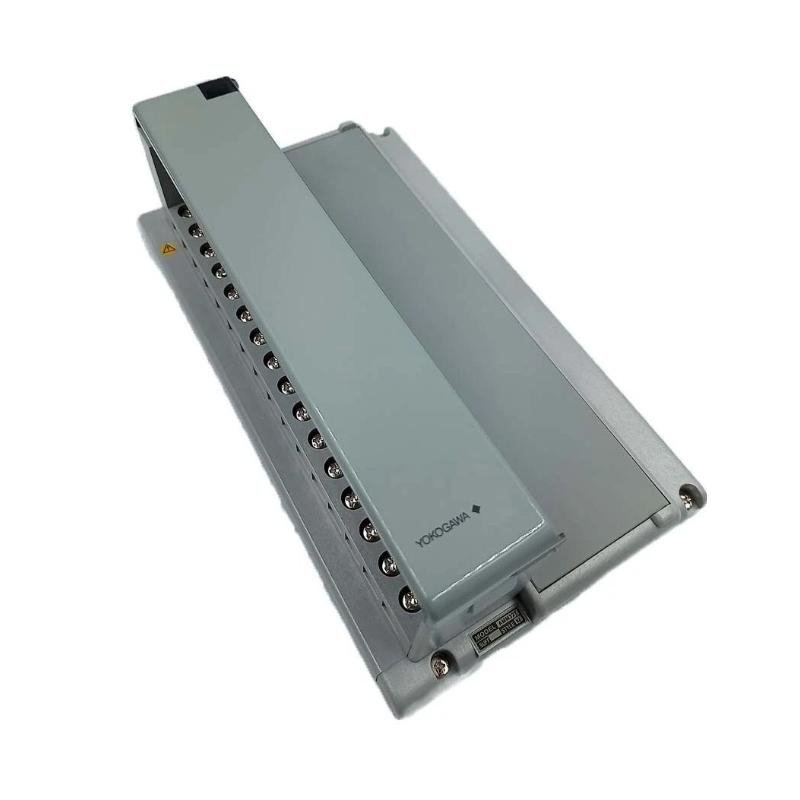

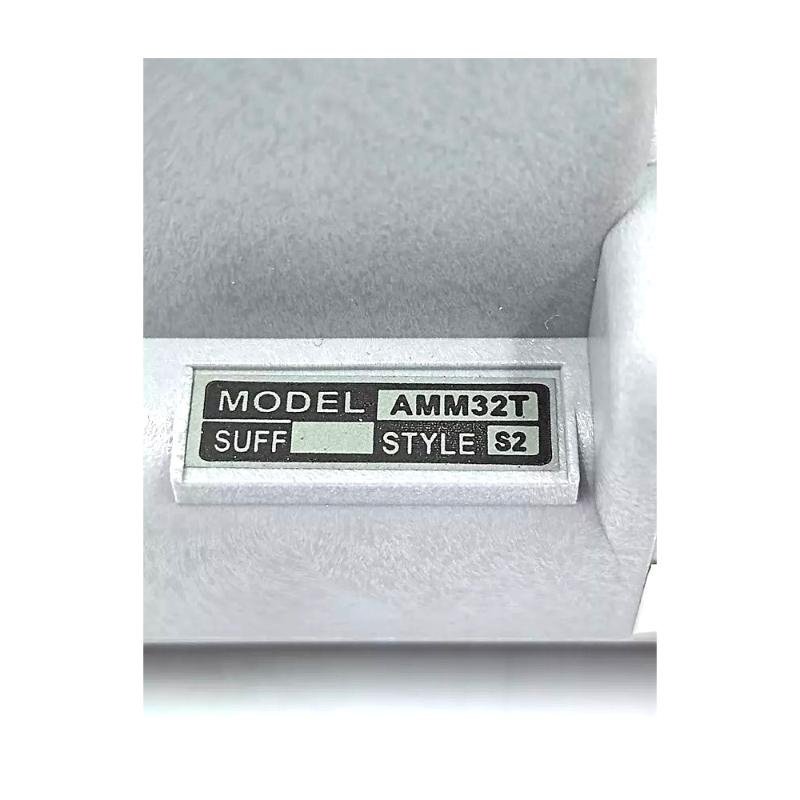

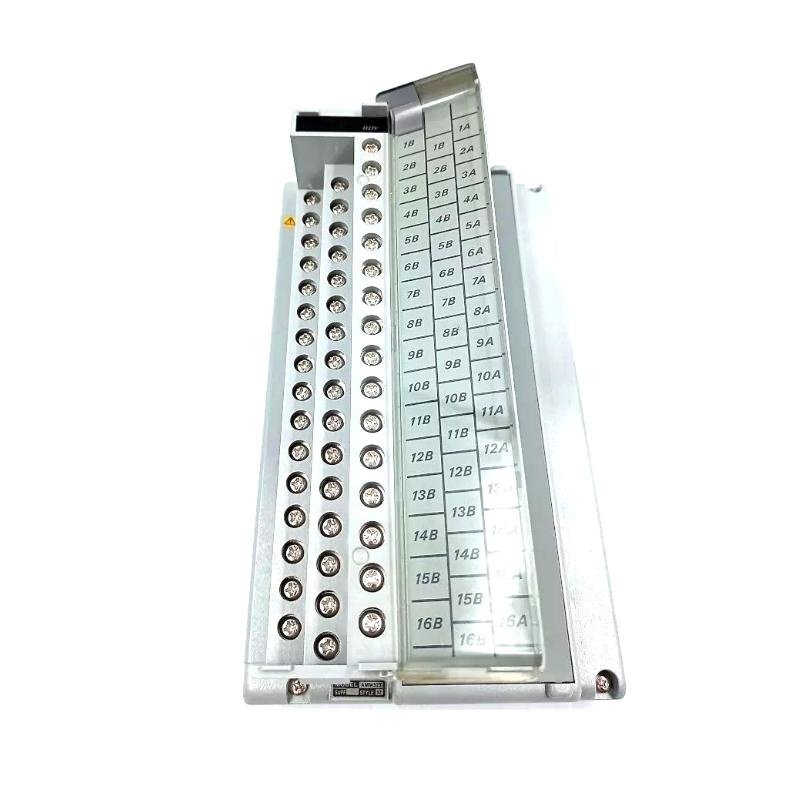

Yokogawa AMM32 Distributed Analog Modules
Manufacturer: Yokogawa
Product Number: AMM32
Category: Distributed Analog Modules
System Compatibility: Yokogawa large-scale industrial automation environments
Function: High-density analog signal acquisition for distributed installation
Product Description
The Yokogawa AMM32 Distributed Analog Modules are advanced analog input units designed for distributed installation in large-scale industrial automation environments. Built to support high-density analog signal acquisition, the AMM32 modules enable precise data collection from remote field devices across extensive plant areas. These modules integrate seamlessly with Yokogawa’s CENTUM VP and ProSafe-RS control systems, providing a robust and flexible solution for scalable process control architectures.
Key Features
-
High-Density Input–Supports multiple analog input channels in a compact footprint
-
Distributed Architecture–Enables remote deployment near field instruments to reduce wiring
-
Multi-Signal Compatibility–Accepts voltage, current, thermocouple, and RTD inputs
-
High Accuracy and Resolution–Delivers 16-bit A/D conversion for precise measurement
-
Modular and Scalable–Easily integrates into large distributed systems
-
Channel Isolation–Ensures signal integrity and protects against electrical interference
-
Self-Diagnostics–Continuous health monitoring of inputs and internal circuitry
-
System Compatibility–Fully integrates with Yokogawa CENTUM VP and ProSafe-RS systems
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 125 x 130 x 248 mm |
| Weight | 2 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 analog input channels |
| Input Signal Types | Voltage (0–10 VDC), Current (4–20 mA), RTD, TC |
| Resolution | 16-bit analog-to-digital conversion |
| Input Impedance | Voltage: >1 MΩ; Current: 250 Ω (internal shunt) |
| Power Supply | Supplied via remote I/O system |
| Isolation | Channel-to-channel and channel-to-system |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +50°C |
| Storage Temp | -20°C to +70°C |
| Humidity | 5%–95% RH (non-condensing) |
| Shock/Vibration | IEC 60068-2 compliant |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Yokogawa CENTUM VP and ProSafe-RS systems |
| Module Type | Distributed Analog Input Module |
| Communication | Remote I/O and backplane interfaces |
Industry Applications
-
Oil & Gas–Distributed monitoring of pressure, temperature, and flow in field operations
-
Chemical and Petrochemical–Precision analog input for batch and continuous processes
-
Power Generation–Scalable data acquisition for distributed control strategies
-
Water and Wastewater–Remote sensing of process variables in large treatment facilities
-
Pulp and Paper–Integration of analog signals from mill-wide field instrumentation
The Yokogawa AMM32 Distributed Analog Modules deliver flexible, accurate, and scalable analog input acquisition across large industrial sites. Their distributed design and system compatibility make them ideal for high-performance automation and monitoring applications.
