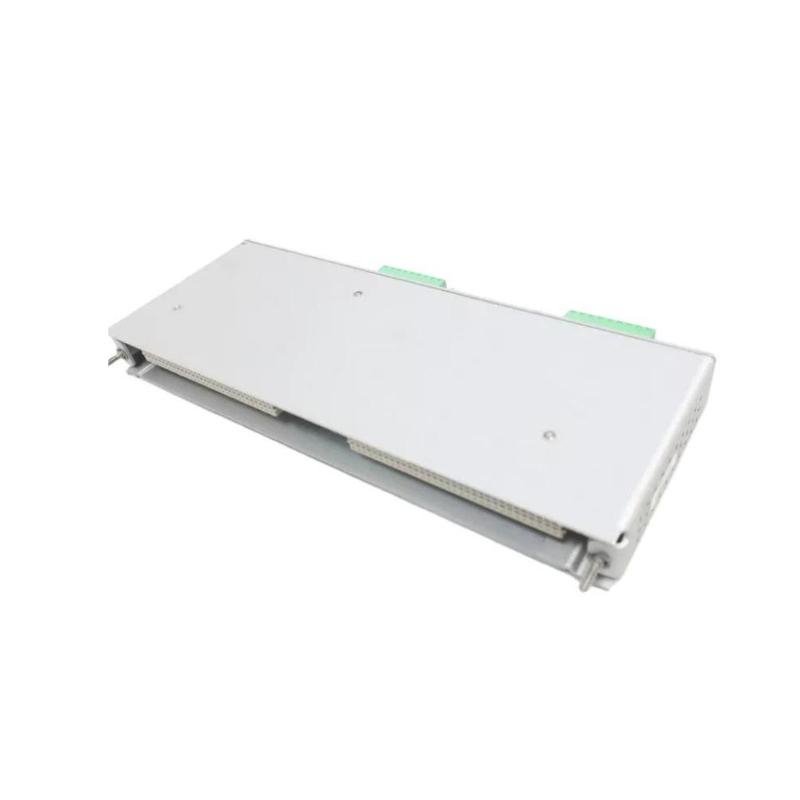

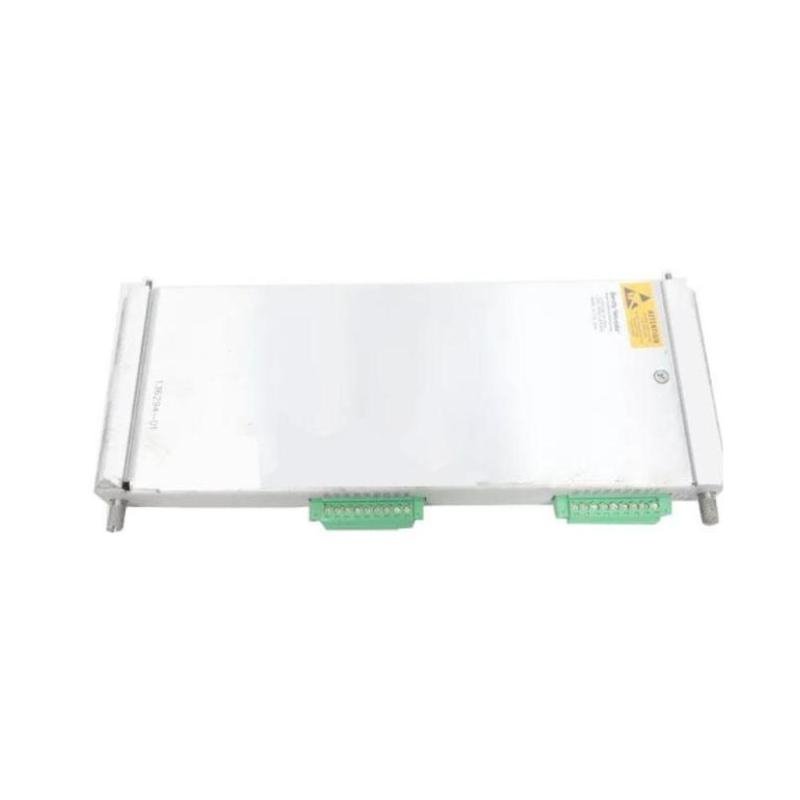

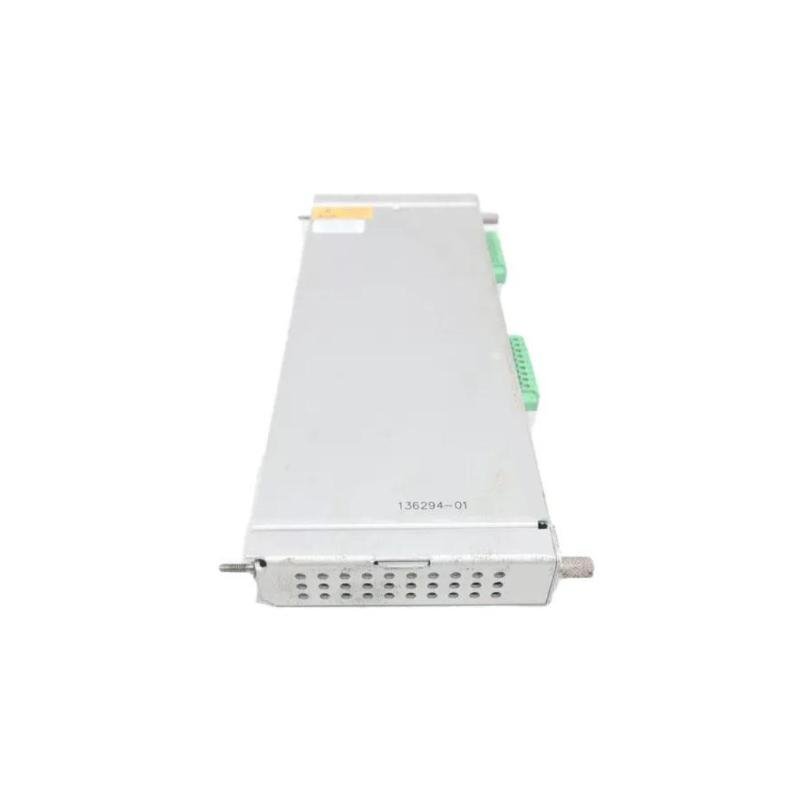

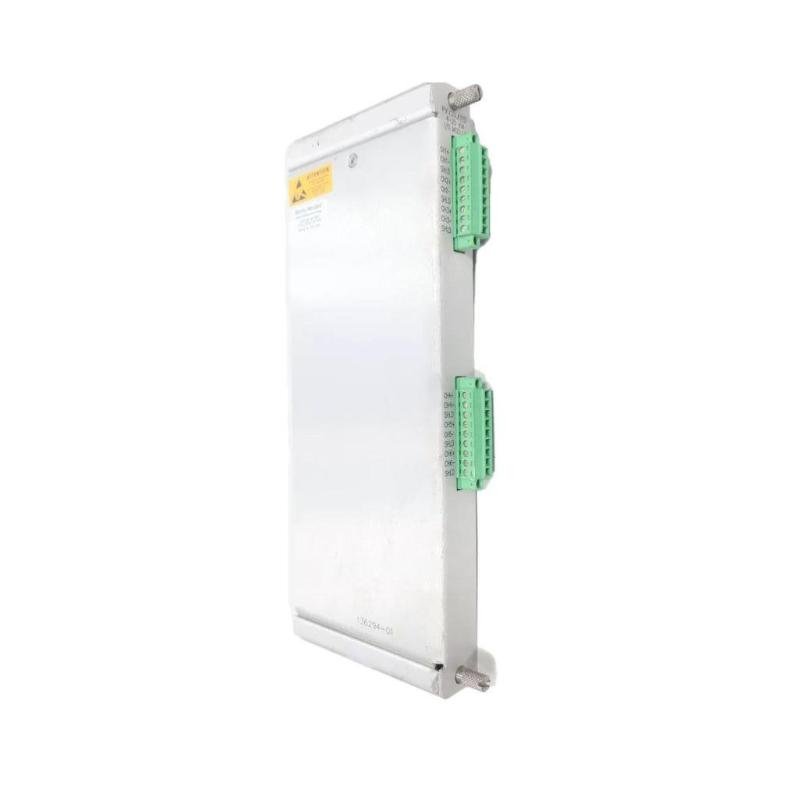

Bently Nevada 3500/62 136294-01 Temperature Monitor Modul
Manufacturer: Bently Nevada
Product Number: 3500/62 (136294-01)
Category: Dual-channel Temperature Monitor (3500 System)
Number of Channels: 2
Input Types: RTD, thermocouple
System Compatibility: Bently Nevada 3500 Machinery Protection System
Product Description
The Bently Nevada 3500/62 136294-01 is a dual-channel temperature monitor designed for precise and reliable temperature measurement of critical machinery and process equipment.It is a core component of the Bently Nevada 3500 Machinery Protection System, providing high-accuracy temperature data for machine protection, performance monitoring, and control applications.
The module accepts input from Resistance Temperature Detectors (RTDs) and Thermocouples (TCs), performing signal conditioning, linearization, and alarm comparison for each channel independently.
Each channel can be configured to measure a specific temperature point — such as bearing metal temperature, stator winding, or process temperature — and trigger Alert or Danger alarms when thresholds are exceeded.
Key Features
-
Two fully independent input channels (RTD or Thermocouple).
-
High-accuracy digital temperature measurement with linearization.
-
Dual programmable alarm levels per channel (Alert and Danger).
-
Provides 4–20 mA proportional outputs for each channel.
-
Field-configurable via 3500 configuration software.
-
Compact full-height module designed for 3500 rack installation.
-
Complies with API 670, CE, and CSA industrial standards.
-
Ideal for turbine, compressor, motor, and generator temperature monitoring.
Technical Specifications
| Parameter | Specification | Description / Notes |
|---|---|---|
| Model Number | 3500/62 | Dual-channel temperature monitor |
| Assembly Number | 136294-01 | Monitor module assembly |
| System Compatibility | Bently Nevada 3500 Series | Full-height slot required |
| Number of Channels | 2 channels | Independently configurable |
| Input Types | RTD or Thermocouple | Configurable per channel |
| Supported RTDs | Pt100, Nickel, Copper | 2-, 3-, or 4-wire |
| Supported Thermocouples | Type E, J, K, T | Software configurable |
| Input Isolation | Channel-to-channel and channel-to-backplane | Reduces electrical noise |
| Recorder Output | 4–20 mA per channel | Proportional to temperature measurement |
| Accuracy | ±3 °C typical | Depending on sensor type and calibration |
| Alarm Setpoints | Two per channel (Alert and Danger) | Field-programmable |
| Power Consumption | Approx. 7 W | Typical operational load |
| Operating Temperature Range | –30 °C to +65 °C | Continuous industrial operation |
| Storage Temperature Range | –40 °C to +85 °C | Non-operating condition |
| Relative Humidity | 5% to 95% non-condensing | Suitable for harsh environments |
| Dimensions (H × W × D) | 241.3 × 24.4 × 241.8 mm (9.50″ × 0.96″ × 9.52″) | Full-height module |
| Weight | Approx. 0.91 kg (2.0 lb) | Typical module weight |
| Mounting Type | Full-height rack slot | Installs in 3500 rack chassis |
| Compliance | API 670, CE, CSA, ATEX | Meets industrial monitoring standards |
