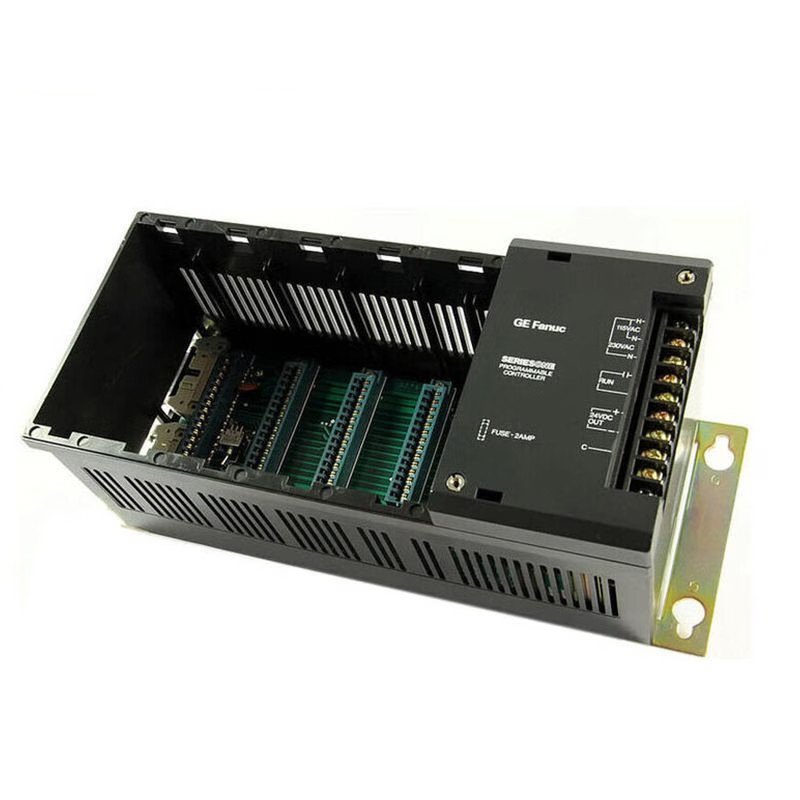

The GE Fanuc IC610CHS110A is a 5-slot PLC rack chassis designed for use with the GE Fanuc Series One programmable logic controllers (PLCs). This robust system integrates a power supply to support up to five Series One modules, providing a reliable platform for industrial control applications. The rack is commonly used in industries such as manufacturing, automotive, and food processing to control machinery, processes, and complex systems.

Technical Specifications

• Part Number: IC610CHS110A
• Manufacturer: GE Fanuc (now part of FANUC Corporation)
• Product Type: 5-Slot Rack with High Capacity Power Supply
• Platform: GE Fanuc Series One PLC System
• AC Power Input:
  • 115 VAC, ±15%
  • Frequency: 47 to 63 Hz
• Output Voltages:
  • 5 VDC: 0.8 A max
  • 9 VDC: 0.8 A max
  • 24 VDC: 0.5 A max
• Maximum Load: 0.8 A at 5 VDC, 0.8 A at 9 VDC, 0.5 A at 24 VDC
• Dimensions: 35.6 cm x 2.0 cm x 1.3 cm (14.0 in x 0.8 in x 0.5 in)
• Weight: 1.8 kg (4 lbs)
