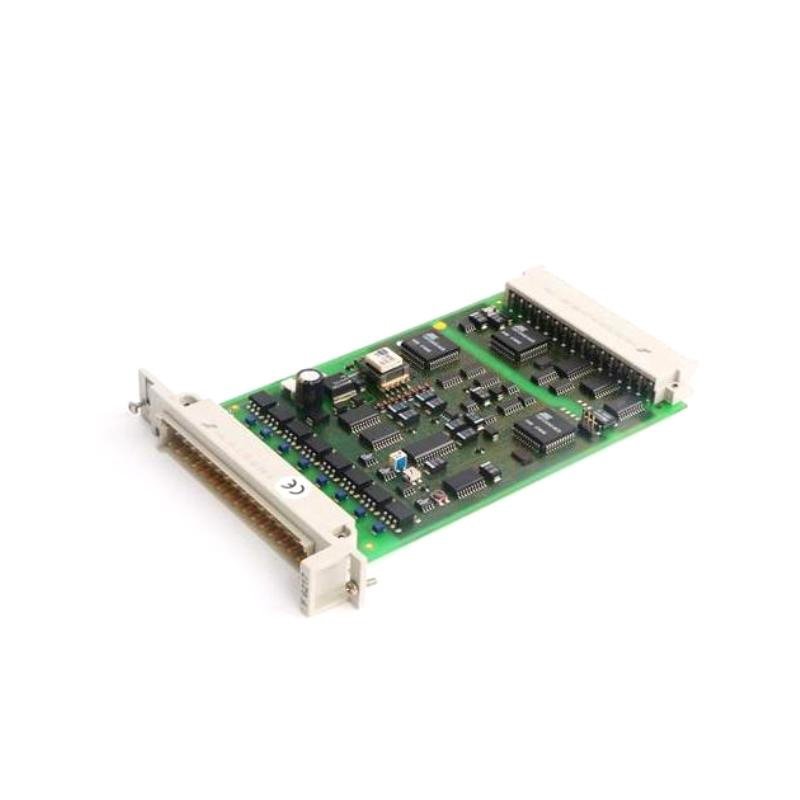

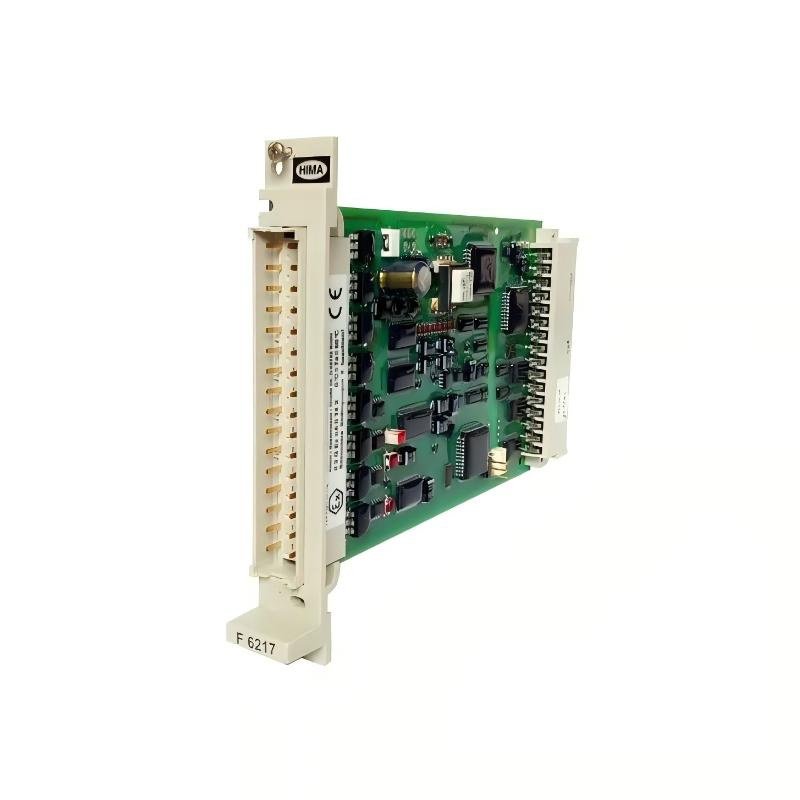

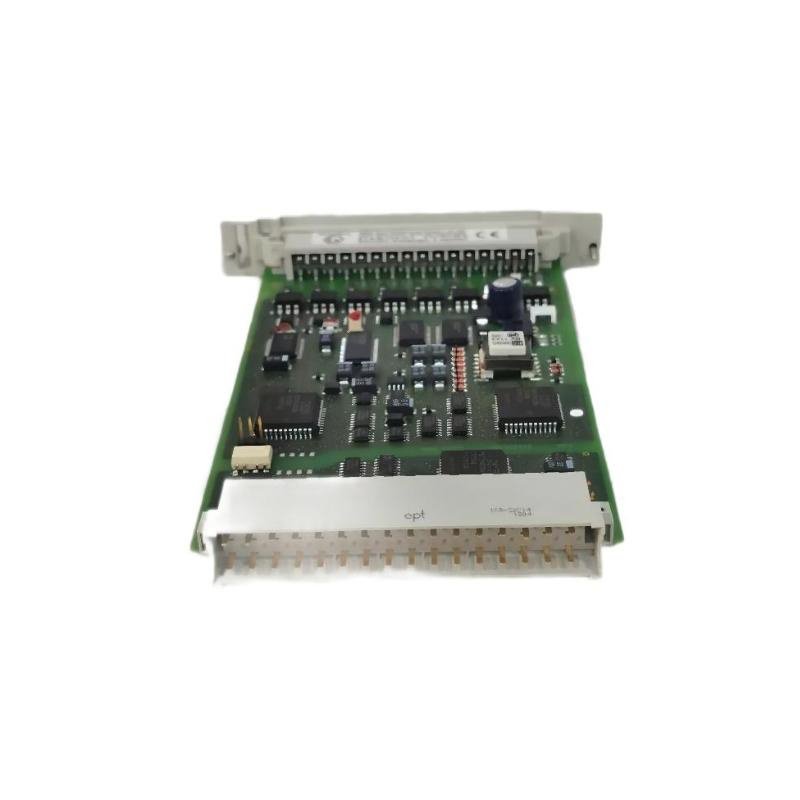

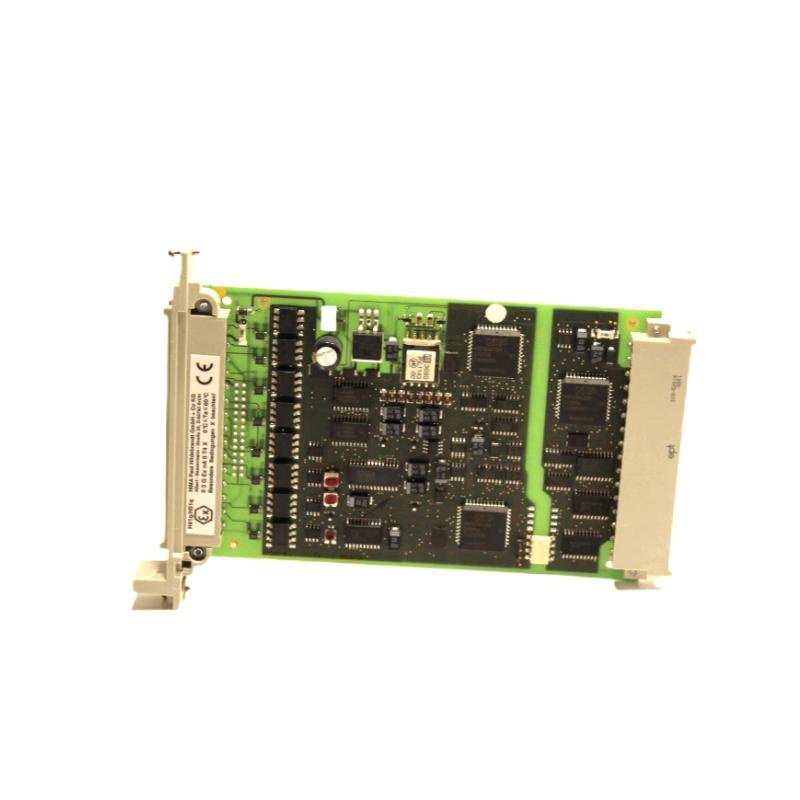

Hima F6217 Analog Input Module
Manufacturer: HIMA
Product Number: F6217
Category: 8-channel Analog Input Module (Safety-related control systems)
Number of Channels: 8
Input Signals: 0/4-20 mA, 0-5/10 V
Features: Integrated safe isolation between channels
System Compatibility: HIMA safety-related control systems
Product Description
The HIMA F6217 is an eight-channel analog input module designed for use in safety-related control systems. It supports both current (0/4…20 mA) and voltage (0…5/10 V) signal inputs and features integrated safe isolation between channels, making it suitable for high-integrity applications (up to SIL 3 according to IEC 61508). The module contains a redundant, safety‐related processor system which carries out continuous self-tests of analog-to-digital converters, input filters, cross-talk between channels and I/O bus communication. It is optimized for use in process control, industrial automation and safety instrumentation systems where modular analog input integration is required.
Key functional advantages include:
-
Eight fully configurable analog input channels for either current or voltage signals.
-
Safe isolation between channels to minimise interference and enhance system safety.
-
12-bit resolution on each channel for high measurement fidelity.
-
Self‐diagnostic capability and safety time < 450 ms for fast fault detection.
-
Modular design for installation in safety I/O racks and integration into fail-safe automation architectures.
Technical Specifications
| Parameter | Specification | Notes |
|---|---|---|
| Model Number | F6217 | 8-channel analog input module |
| Signal Inputs | Current: 0/4…20 mA; Voltage: 0…5/10 V | Supports both common signal ranges |
| Resolution | 12 bits | 0 mV = 0 counts, 5.5 V = 4095 counts |
| Measurement Update Time | ≈ 50 ms | Time between conversions |
| Safety Time | < 450 ms | Time to safe state upon fault |
| Basic Error (at 25 °C) | 0.1 % | Reference condition |
| Operating Error (0…+60 °C) | 0.3 % | In operating temperature range |
| Safety-related Error Limit | 1 % | For safety loop design |
| Input Resistance (voltage input) | ~100 kΩ | Load on sensors |
| Time Constant of Input Filter | Approx. 10 ms | On input filtering |
| Max Input Voltage | 7.5 V | Absolute maximum for voltage input |
| Max Input Current | 30 mA | For current input via shunt |
| Operating Power | 5 V DC / 80 mA and 24 V DC / 50 mA | Typical supply values |
| Space Requirement | 4 SU (slot units) | For rack mounting |
| Dimensions (H × W × D) | 160 mm × ~80 mm × ~120 mm (example: 16 cm × 16 cm × 12 cm) | Typical module envelope from supplier data |
| Weight | Approx. 0.6 kg to 0.8 kg | Module weight for mounting calculations |
| Safety Integrity Level | Up to SIL 3 | Safety certified per IEC 61508 |
| Country of Origin | Germany | Manufactured by HIMA Paul Hildebrandt GmbH |
