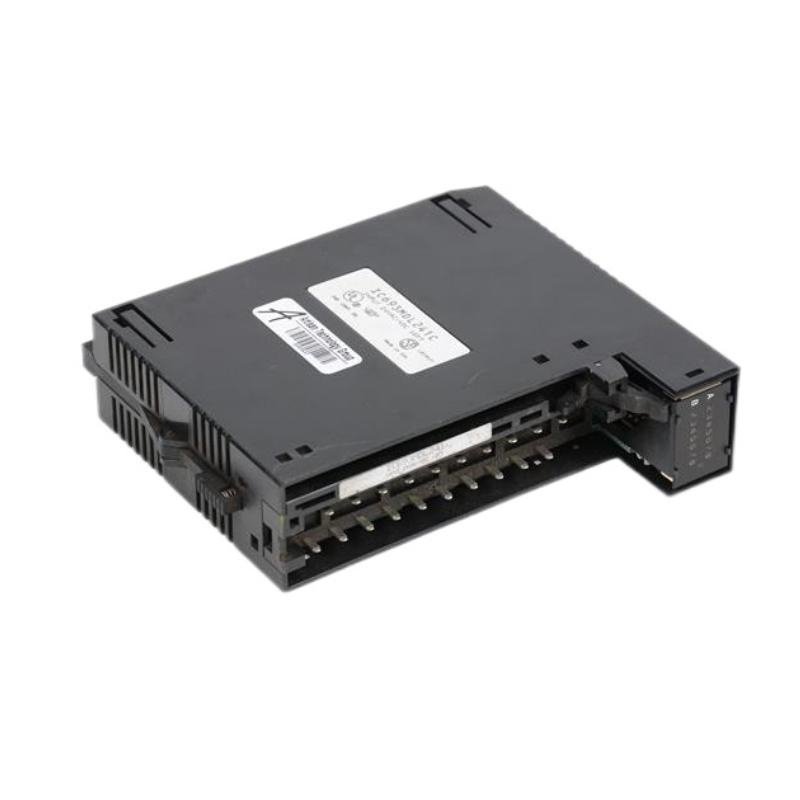

GE Fanuc IC693ACC300D Input Module
Manufacturer: GE Fanuc
Product Number: IC693ACC300D
Category: Input Module (Series 90-30 PLC)
Number of Channels: 16 (typical)
Input Type: Digital input
System Compatibility: GE Fanuc Series 90-30 PLC systems
Function: Provides reliable and precise input signal processing for PLC
Product Description
The GE Fanuc IC693ACC300D Input Module is a high-performance digital input module designed for use with the GE Fanuc Series 90-30 PLC systems. This module provides reliable and precise input signal processing, allowing the PLC to receive information from a variety of field devices such as switches, sensors, and relays. It supports a broad range of input voltages and is ideal for use in applications that require fast, accurate input signal processing, making it an essential component in industrial control systems.
Key Features
-
Multiple Input Channels–Offers 16 digital input channels for connecting field devices, enabling versatile input signal management
-
Wide Input Voltage Range–Supports a variety of input voltage ranges, providing flexibility in integration with different field devices
-
High-Speed Input Processing–Capable of handling fast input signals with quick response times to ensure accurate control and monitoring
-
LED Indicators–Equipped with on-board LEDs for each input channel, allowing easy monitoring of input statuses for troubleshooting and diagnostics
-
Galvanic Isolation–Provides electrical isolation between field devices and the PLC, ensuring signal integrity and protection against electrical noise
-
Compact Design–Optimized for installation within the GE Fanuc Series 90-30 PLC rack, maximizing space efficiency in control panels
-
Reliable Performance–Built for demanding industrial environments, offering high reliability and durability over extended operational periods
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 142 x 30 x 130 mm |
| Weight | 0.3 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 digital input channels |
| Input Voltage Range | 24 VDC ± 10% |
| Input Type | Dry contact (NO/NC) |
| Response Time | ≤ 10 ms per channel |
| Power Supply Voltage | 24 VDC ± 10% |
| Power Consumption | 1 W (typical) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
| Protection | IP20 (when installed) |
System Compatibility
| Item | Specification |
|---|---|
| Platform | GE Fanuc Series 90-30 PLC |
| Compatible Modules | Integrated with GE Fanuc PLC I/O modules |
| Module Type | Digital Input Module |
Industry Applications
-
Process Automation–Monitors signals from field devices such as limit switches, relays, and proximity sensors in process control systems
-
Manufacturing–Captures digital inputs from various production line devices, ensuring smooth operation and system reliability
-
Safety Systems–Detects input signals from safety devices, providing critical feedback for emergency shutdown systems and alarms
-
Building Automation–Receives digital input signals from building management systems such as HVAC, lighting, and security systems
-
Test and Measurement–Utilized for monitoring and testing various field devices in industrial control systems and laboratory setups
The GE Fanuc IC693ACC300D Input Module is an integral part of the GE Fanuc Series 90-30 PLC platform, providing reliable and fast input signal processing for a wide range of industrial applications. With its high performance, flexibility, and robust design, this module ensures accurate monitoring and control of digital input devices in industrial automation systems.
