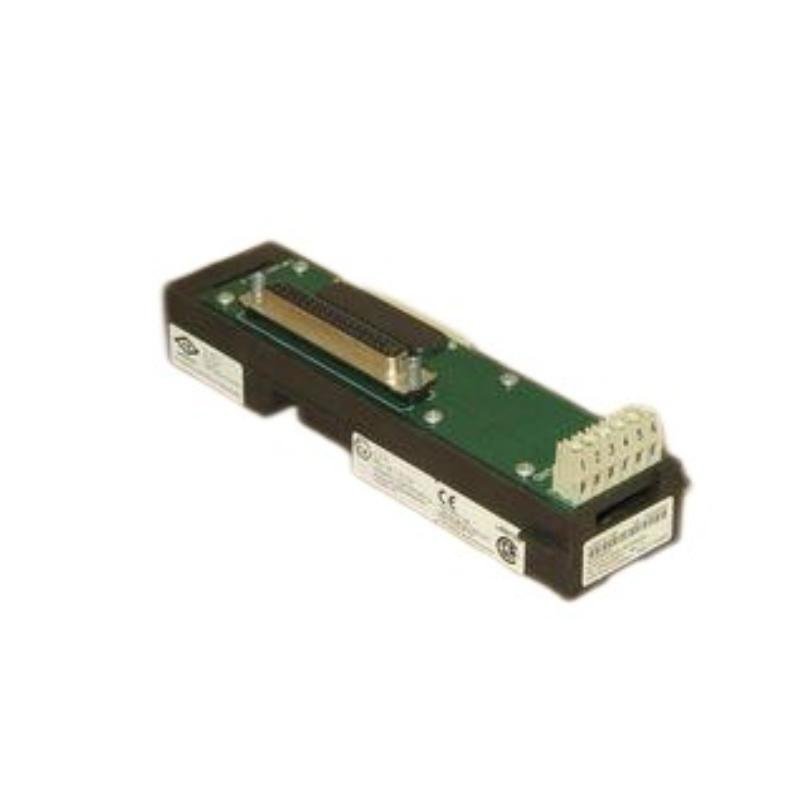

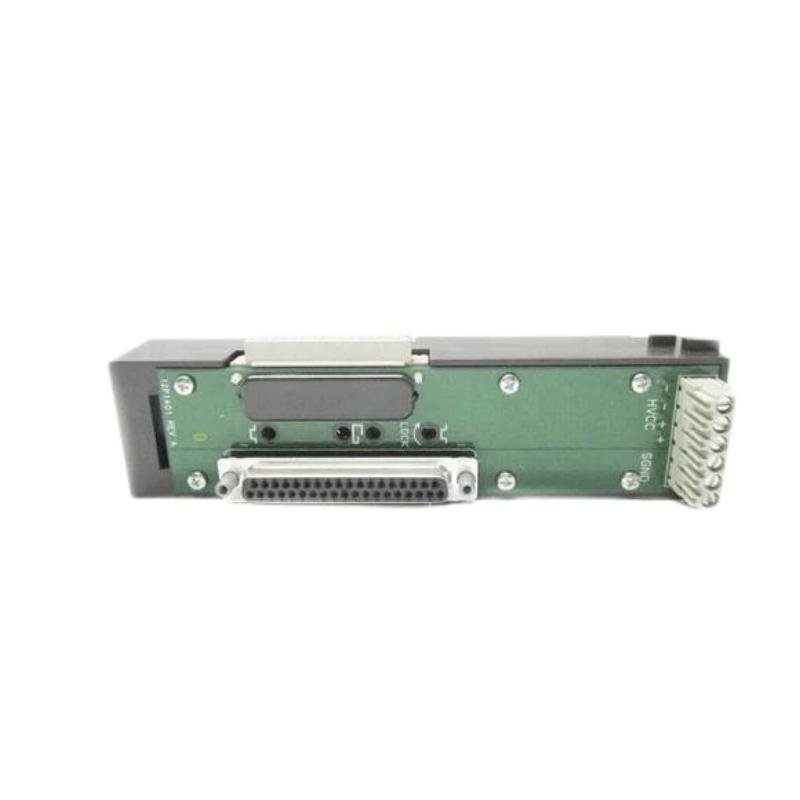

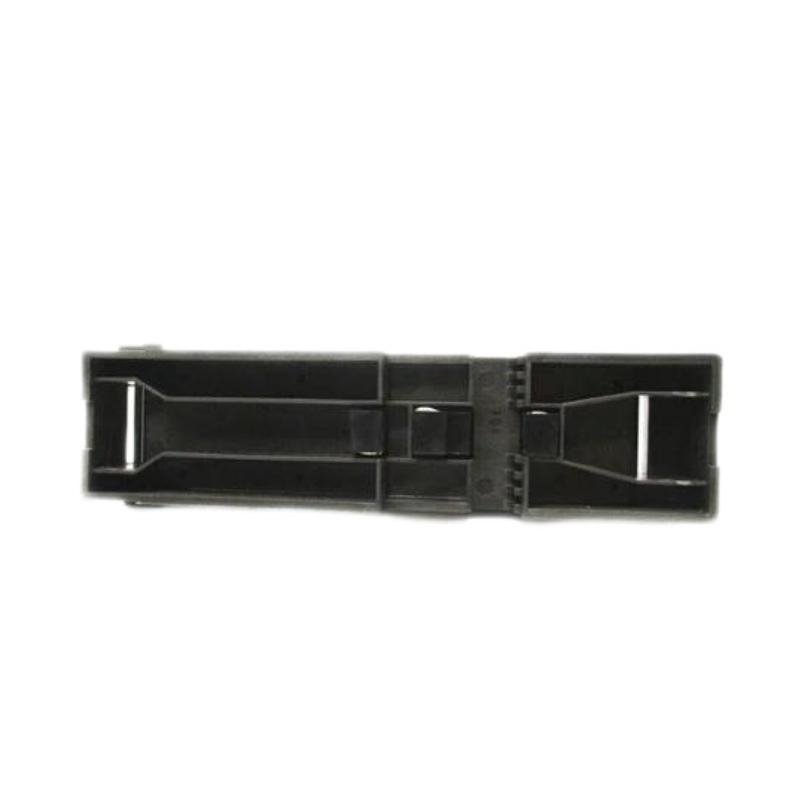

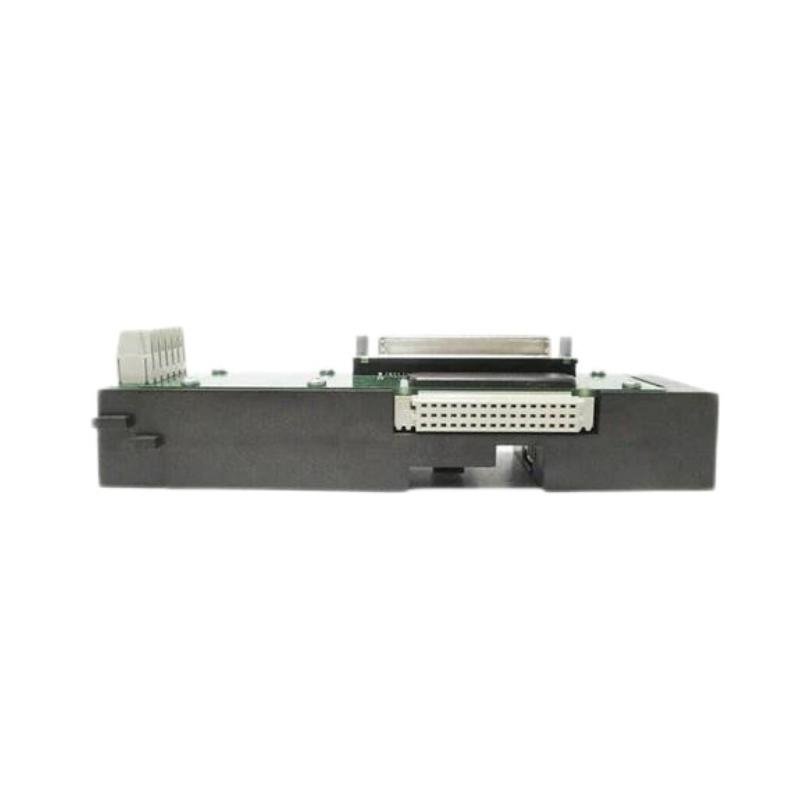

Emerson KJ4001X1-HB1 PLC Module/Rack
Manufacturer: Emerson
Product Number: KJ4001X1-HB1
Category: PLC Module/Rack (DeltaV I/O)
System Compatibility: Emerson DeltaV I/O and controller modules
Function: Baseplate or rack assembly serving as mechanical and electrical foundation for DeltaV node, facilitating robust backplane communication
Product Description
The Emerson KJ4001X1-HB1 is a baseplate or rack assembly designed to house and interface Emerson DeltaV I/O and controller modules. Serving as the mechanical and electrical foundation of a DeltaV node, it facilitates robust backplane communication, power distribution, and module connectivity. Engineered for high reliability and long service life, the KJ4001X1-HB1 ensures seamless system scalability and simplified module installation in both process and factory automation environments.
Key Features
-
DeltaV System Backbone–Acts as the core structure for hosting multiple I/O and controller modules
-
Integrated Backplane Communication–Ensures high-speed, fault-tolerant data transfer between modules
-
Simplified Module Installation–Snap-in design for quick and secure module mounting
-
Power Distribution Support–Distributes power efficiently to all connected modules
-
DIN Rail Mountable–Allows flexible and compact panel layout
-
Field-Replaceable Design–Supports easy maintenance and expansion without system shutdown
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 330 x 100 x 50 mm |
| Weight | 0.13 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Voltage Supply | Receives power from DeltaV system power supply |
| Current Handling | Supports multiple I/O modules (varies by load) |
| Backplane Type | DeltaV standard communication bus |
| Power Distribution | Integrated to all connected modules |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -40°C to +70°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Protection | IP20 (when installed in enclosure) |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Modules | Emerson DeltaV I/O, power, and controller modules |
| Mounting | DIN rail or enclosure back panel |
Industry Applications
-
Oil & Gas Production–Forms the core of DeltaV control nodes in upstream and midstream systems
-
Chemical Processing–Supports scalable I/O systems for continuous and batch operations
-
Pharmaceutical Manufacturing–Enables validated automation architectures in cleanroom environments
-
Power Generation–Used in turbine, boiler, and plant-wide control systems
-
Pulp & Paper–Provides the backbone for distributed process automation
The Emerson KJ4001X1-HB1 baseplate/rack is a mission-critical infrastructure component for DeltaV control systems, offering dependable support, communication, and power delivery for a wide range of automation modules.
