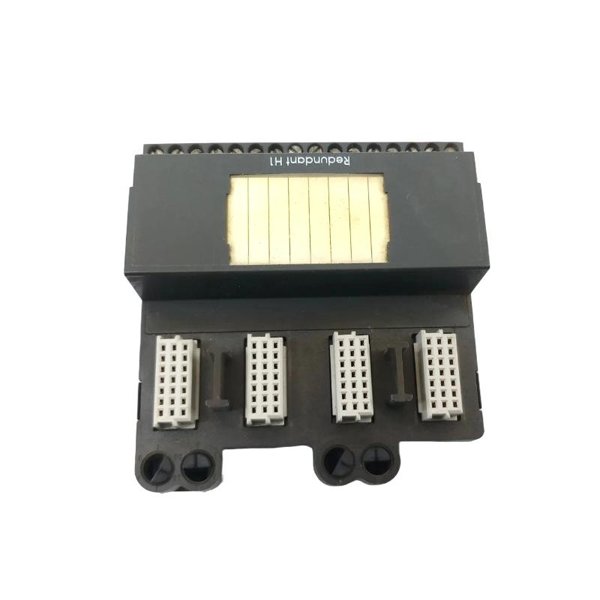

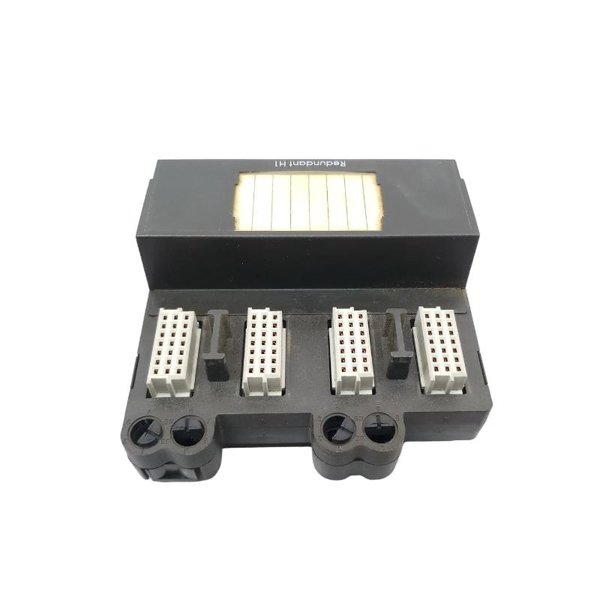

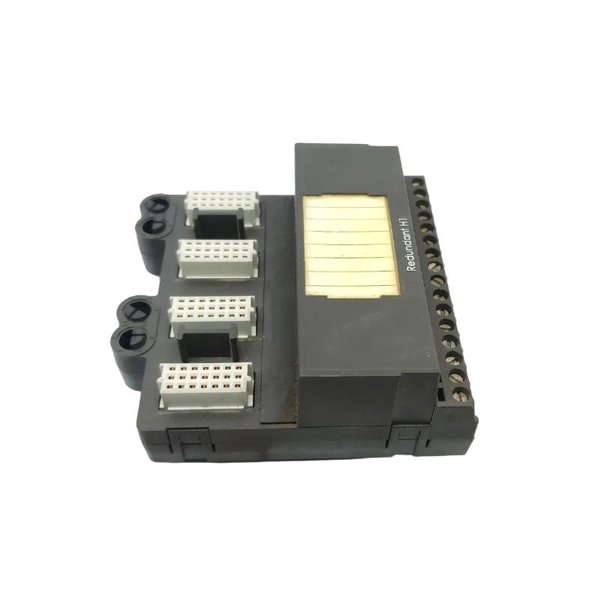

The Emerson KJ3242X1-FA1 Fieldbus Redundant H1 Terminal Block is a critical interface module designed for DeltaV distributed control systems that require high reliability in process automation environments. This terminal block provides redundant H1 Fieldbus communication paths, ensuring uninterrupted data exchange between the control system and Fieldbus-enabled devices.

Designed for high-availability applications, the KJ3242X1-FA1 supports redundant network architecture, maintaining communication integrity in the event of a single path failure. It serves as a bridge between Fieldbus devices and the DeltaV system, managing data routing, error detection, and fault isolation while supporting high-speed deterministic signal transmission.

Its industrial-grade design ensures reliable performance in environments with electrical noise, vibration, and temperature extremes, making it suitable for mission-critical process control applications in oil & gas, chemical, and power industries.

Product Specifications

Applications

The KJ3242X1-FA1 terminal block is widely used in industrial environments where reliable Fieldbus communication is critical:

• Chemical and Petrochemical Plants: Ensures continuous data exchange between controllers and Fieldbus instruments.

• Oil & Gas Facilities: Maintains redundant communication paths for pipelines, compressors, and processing units.

• Power Generation Plants: Provides reliable H1 Fieldbus connections for turbine and generator monitoring.

• Water and Wastewater Treatment: Supports redundant Fieldbus networks for continuous system operation.

• Pharmaceutical Manufacturing: Maintains accurate and reliable communication for batch process automation.

• Food & Beverage Processing: Enables high-availability Fieldbus communication for production line control.

Advantages

• Redundant Communication Paths: Dual H1 channels prevent data loss in case of path failure.

• High Reliability: Industrial-grade design ensures robust performance in harsh environments.

• Fault Detection and Isolation: Embedded mechanisms monitor data integrity and isolate faults automatically.

• Flexible Integration: Supports a wide range of DeltaV Fieldbus devices and protocols.

• Maintenance-Friendly: Terminal block design allows easy wiring, replacement, and service.

• Industrial Compliance: CE, UL, and CSA certifications ensure operational safety and standards compliance.

• Noise Immunity: Designed to reduce effects of electromagnetic interference (EMI).

• Deterministic Data Flow: Guarantees timely delivery of critical process control signals.

FAQ

1. What is the primary function of the KJ3242X1-FA1?

   It provides redundant H1 Fieldbus communication between DeltaV controllers and Fieldbus-enabled devices.

2. Which Fieldbus protocol does this terminal block support?

   It supports H1 Fieldbus protocol with dual redundant paths.

3. How does the module ensure redundancy?

   It maintains dual independent H1 communication paths to prevent disruption in case of a single path failure.

4. Can this terminal block be replaced while the system is running?

   It supports modular replacement within the DeltaV cabinet with minimal impact on system operation.

5. What types of devices can be connected?

   Fieldbus-enabled sensors, actuators, and analyzers are supported.

6. Does it include error detection mechanisms?

   Yes, it monitors signal integrity and isolates faults automatically.

7. What power supply does it require?

   It draws +5 VDC and +24 VDC from the DeltaV backplane.

8. Is it suitable for high-vibration industrial environments?

   Yes, it meets IEC industrial vibration standards.

9. How is it integrated into a DeltaV system?

   It mounts in DeltaV I/O cabinets and connects via standard terminal block wiring.

10. What certifications does this terminal block meet?

    CE, UL, and CSA industrial safety and performance standards.
