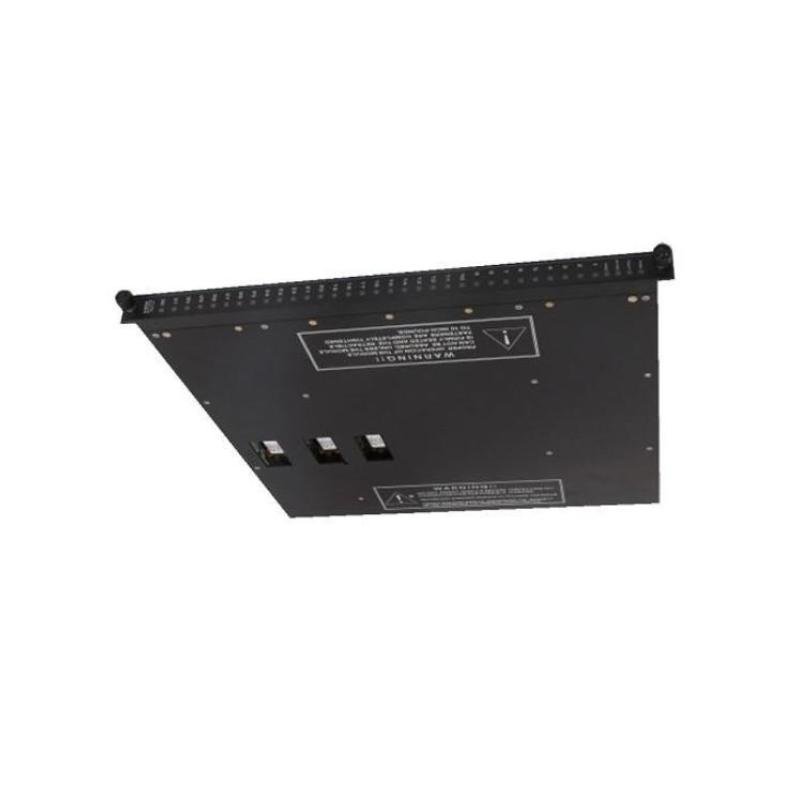

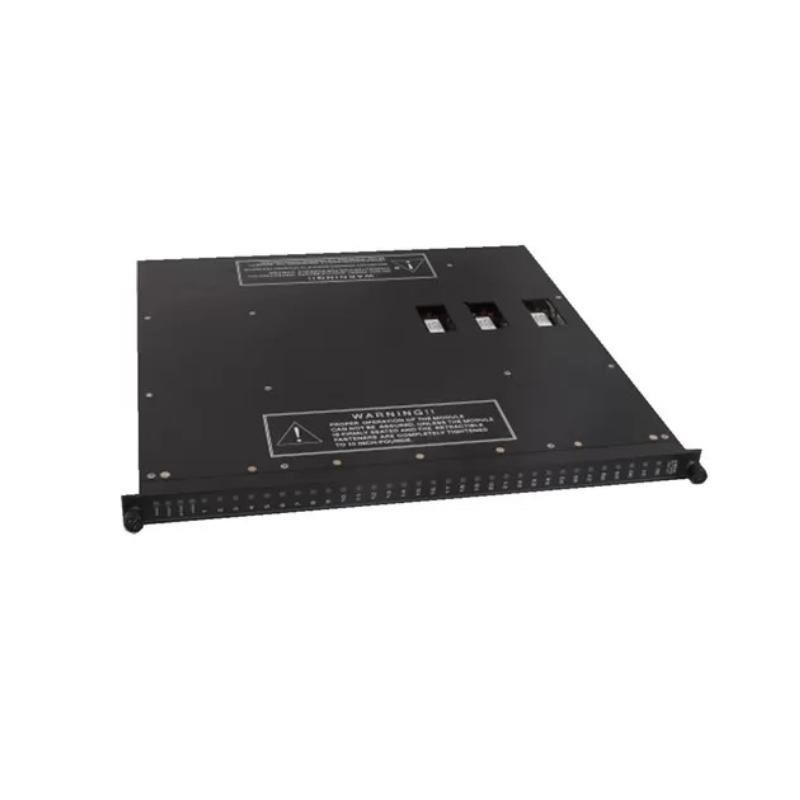

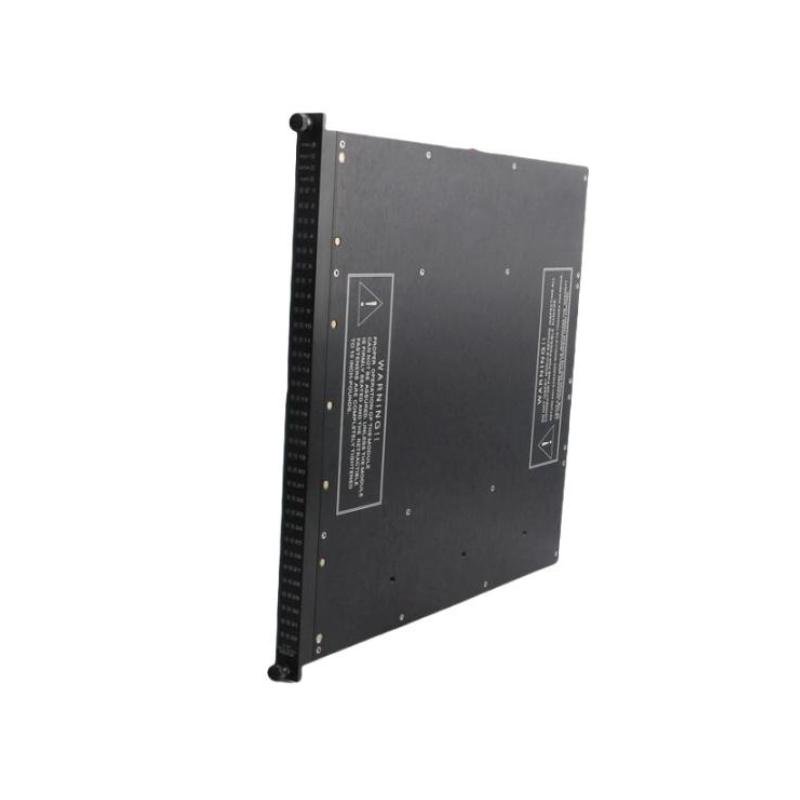

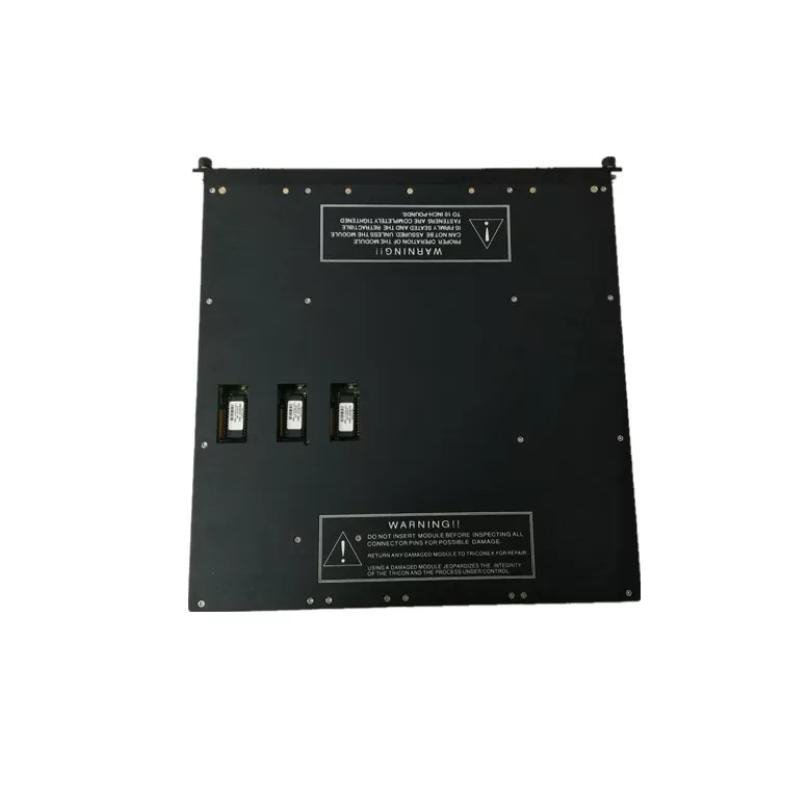

Triconex 3664 Digital Output Modules
Manufacturer: Triconex (Schneider Electric)
Product Number: 3664
Category: Digital Output Module (Triconex safety systems)
Number of Outputs: 16 (typical)
System Compatibility: Triconex safety and control systems
Application: Safety-critical industrial environments requiring high-integrity digital output
Product Description
The Triconex 3664 is a high-integrity Digital Output (DO) module designed for use with the Triconex safety and control systems. Built to meet the stringent requirements of safety-critical industrial environments, the 3664 module ensures secure and reliable actuation of field devices such as relays, solenoids, and actuators. It provides isolated, fault-tolerant digital outputs and integrates seamlessly into Tricon systems for high availability and deterministic response in mission-critical applications.
Key Features
-
Fault-Tolerant Output Channels–Supports up to 32 digital outputs with fault tolerance for maximum system reliability.
-
Hot Replacement–Allows for module replacement without shutting down the system, enhancing uptime and maintainability.
-
Built-In Diagnostics–Constantly monitors output channel integrity and reports status for rapid troubleshooting.
-
Isolated Outputs–Each output channel is electrically isolated to prevent interference and ensure field device protection.
-
Safety-Critical Design–Fully compliant with SIL 3 safety requirements for use in safety instrumented systems (SIS).
-
High-Speed Switching–Supports fast output response times, making it suitable for real-time control systems.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 160 x 100 x 40 mm |
| Weight | 1.87 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Output Type | Digital (Discrete) |
| Number of Channels | 32 channels |
| Output Voltage | 24 VDC nominal |
| Output Current | 0.5 A per channel max |
| Power Supply | Supplied via system backplane |
| Isolation | Channel-to-channel and channel-to-ground |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | 0°C to +60°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% non-condensing |
| Environmental Seal | IP20 |
System Compatibility
| Item | Specification |
|---|---|
| Compatible Systems | Triconex safety and control systems |
| Mounting | Chassis-mounted via Tricon backplane |
Industry Applications
-
Oil & Gas–Actuates field devices in pipeline control, emergency shutdown (ESD), and blowout prevention systems.
-
Chemical and Petrochemical–Drives safety outputs in reactor controls and hazard mitigation systems.
-
Power Generation–Provides reliable digital outputs for turbine, boiler, and auxiliary system control.
-
Pharmaceuticals–Ensures safe control of batch processes and cleanroom automation.
-
Water Treatment–Controls pumps and valves in safety-critical segments of water and wastewater systems.
The Triconex 3664 Digital Output Module offers secure, reliable, and fault-tolerant operation tailored for safety-instrumented systems. With comprehensive diagnostics and support for high-availability applications, it is an ideal solution for industries demanding the highest levels of functional safety and control reliability.
