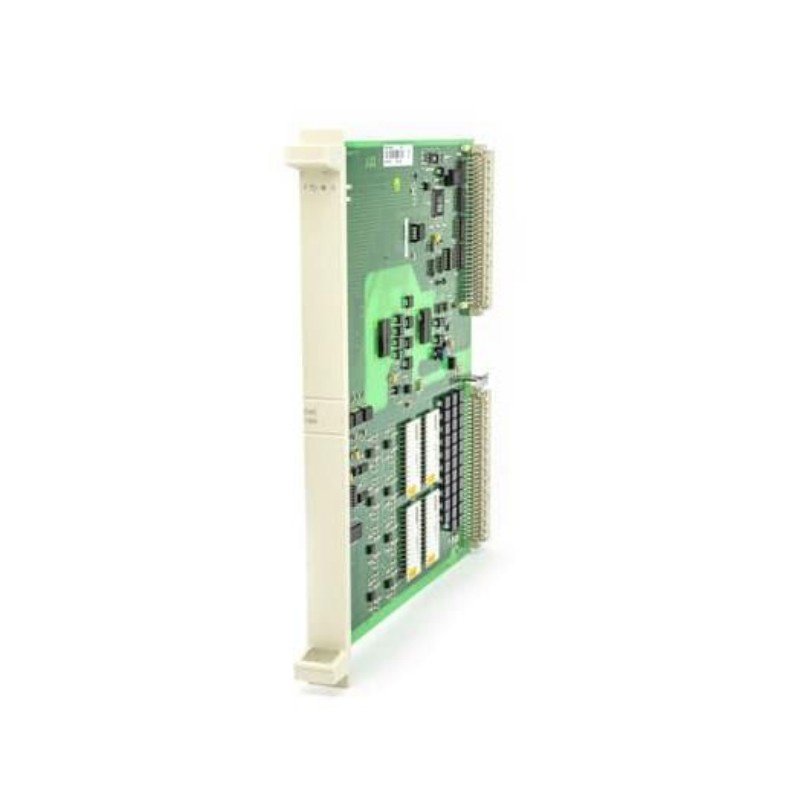

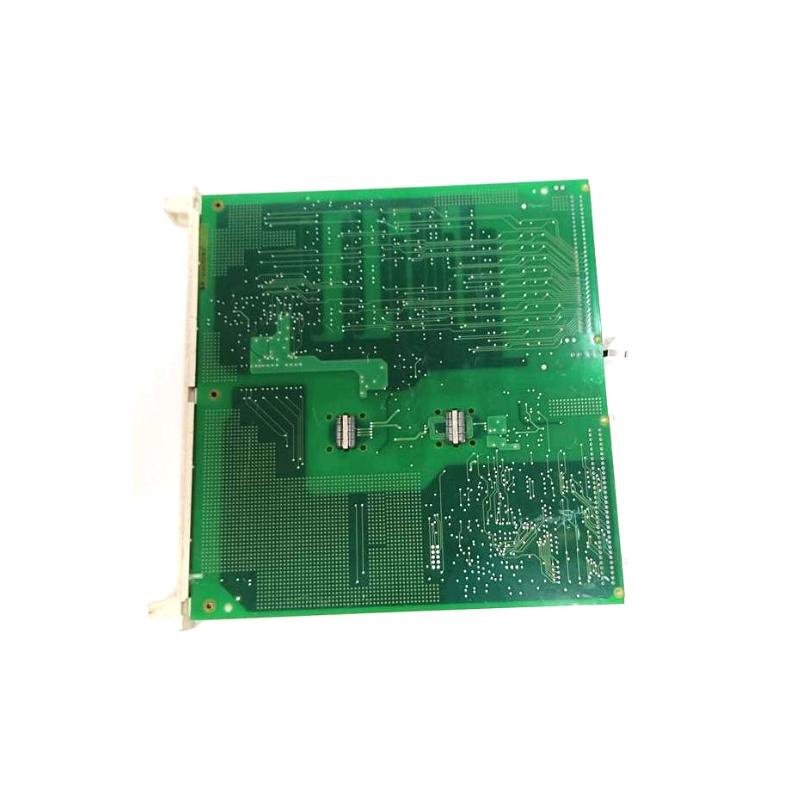

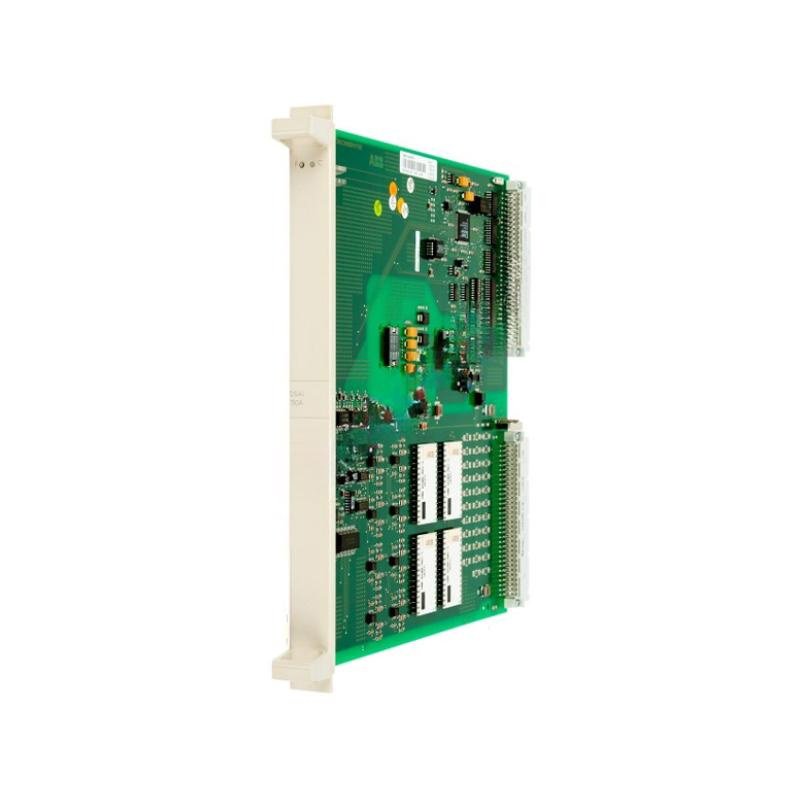

ABB DSAI130A 3BSE018292R1 digital signal analog input module
Manufacturer: ABB
Product Number: DSAI130A (3BSE018292R1)
Category: Digital Signal Analog Input Module
System Compatibility: ABB distributed control systems
Function: Provides accurate signal conversion from field instruments to digital data for process control
Product Description
The ABB DSAI130A 3BSE018292R1 is a digital signal analog input module designed for industrial automation and process control applications. It provides accurate signal conversion from field instruments to digital data for ABB’s distributed control and monitoring systems. With its robust design and precise processing capabilities, the module ensures reliable performance in critical process environments.
Main Features
-
High-Performance Signal Conversion: Converts analog signals from various sensors to digital data.
-
Wide Signal Compatibility: Supports mV, V, and mA input types.
-
Advanced Noise Rejection: Ensures stable and accurate measurements in electrically noisy environments.
-
Hot-Swappable Design: Allows easy maintenance without shutting down the system.
-
Self-Diagnostic Functions: Provides internal monitoring for enhanced reliability.
-
Industrial Safety Compliance: CE certified for adherence to international standards.
-
Seamless System Integration: Compatible with ABB automation and control systems.
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
General Information
| Item | Specification |
|---|---|
| Manufacturer | ABB |
| Model Number | DSAI130A 3BSE018292R1 |
| Product Type | Analog Input Module |
| Mounting Options | DIN rail or rack mount |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | CE |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 16 |
| Signal Types | mV, V, mA |
| Resolution | 16-bit |
| Accuracy | ±0.1% of span |
| Conversion Rate | 10 ms/channel |
| Power Supply | 24 V DC ±10% |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 10-90% RH (non-condensing) |
| Vibration Resistance | 5-150 Hz, 2G |
| Shock Resistance | 15G, 11ms |
| Protection Class | IP20 |
Industry Applications
The ABB DSAI130A 3BSE018292R1 module is widely used in:
-
Oil & Gas: Monitoring process parameters in refineries and pipelines.
-
Chemical Plants: Reactor control and batch process monitoring.
-
Power Generation: Boiler, turbine, and auxiliary equipment monitoring.
-
Pharmaceutical: Precise control of production parameters.
-
Water Treatment: Flow and quality monitoring systems.
