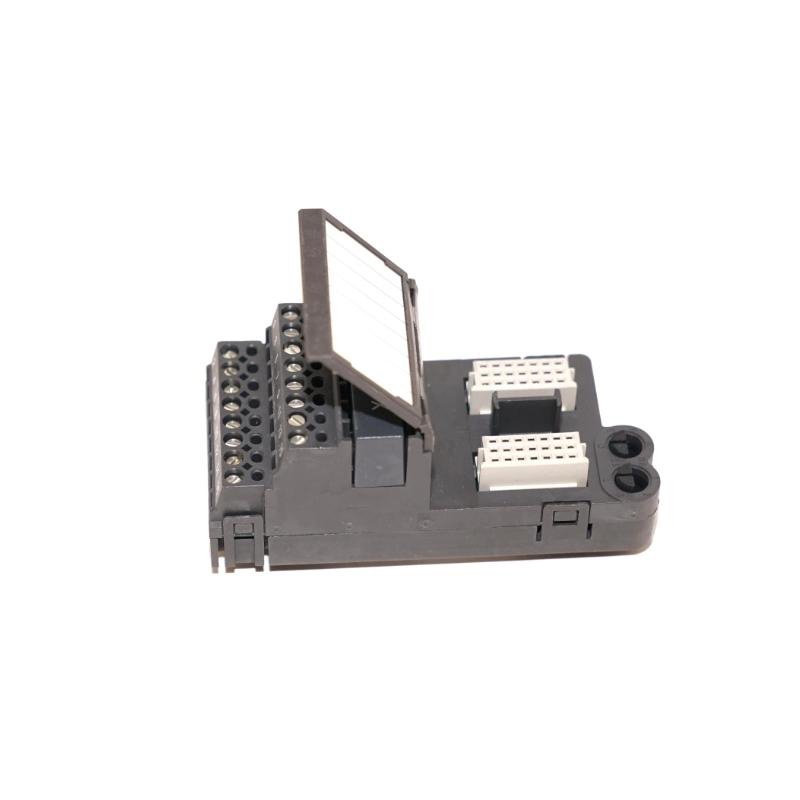

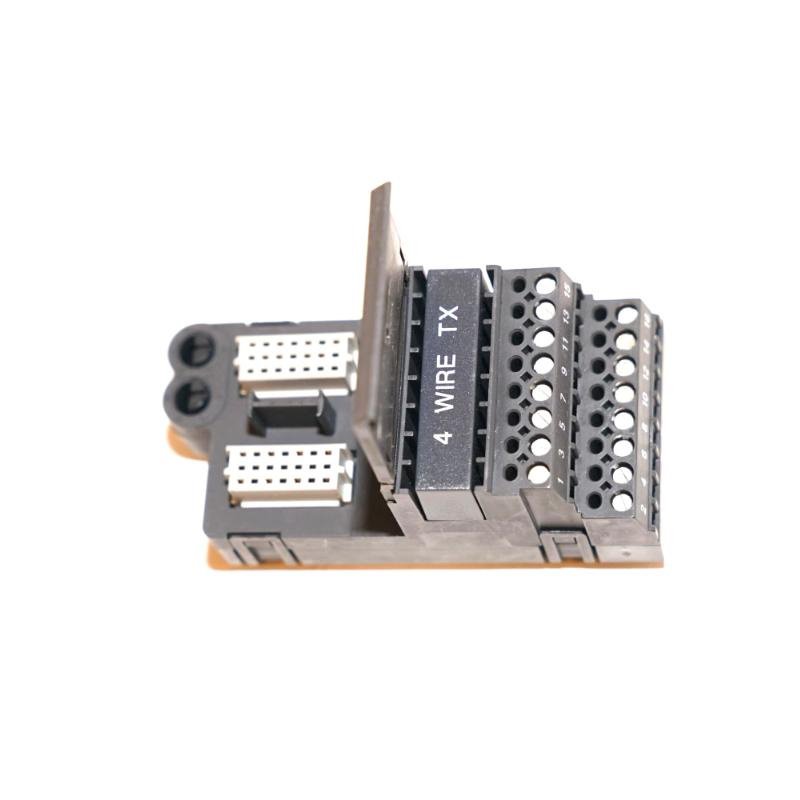

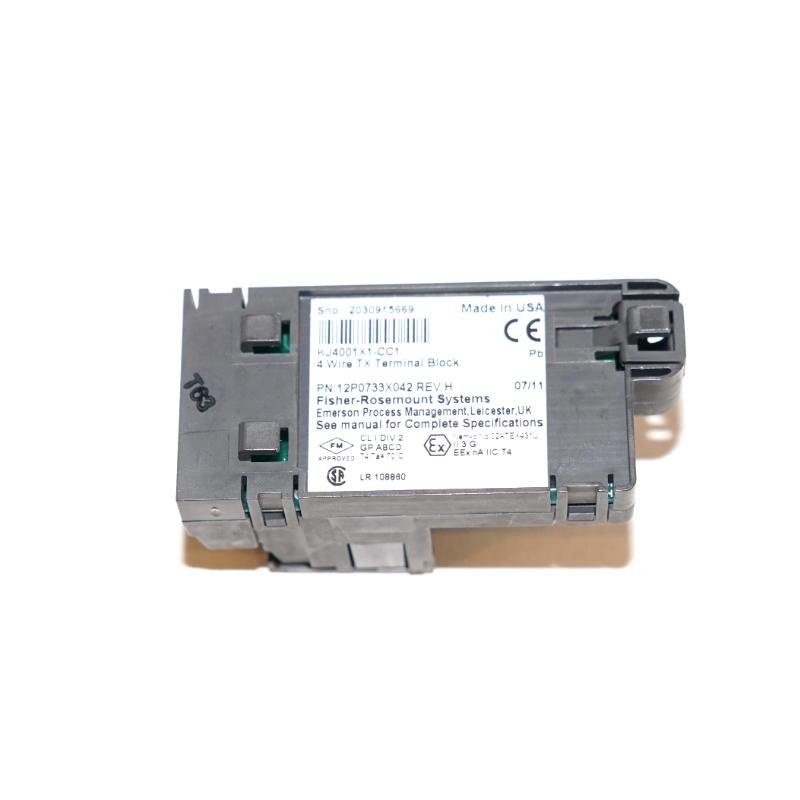

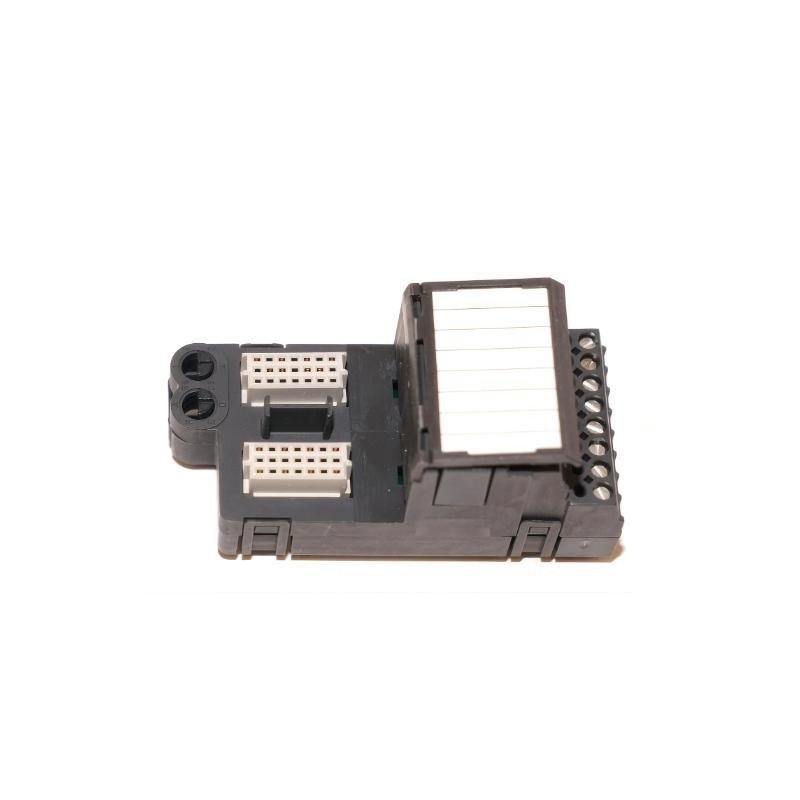

Emerson KJ4001X1-CC1 Terminal Blocks
Manufacturer: Emerson
Product Number: KJ4001X1-CC1
Category: Terminal Blocks (DeltaV DCS)
System Compatibility: Emerson DeltaV distributed control system
Function: Enables reliable and high-density wiring for field input and output signals
Product Description
The Emerson KJ4001X1-CC1 Terminal Blocks are precision-engineered components designed for use within the Emerson DeltaV™ distributed control system (DCS). These terminal blocks enable reliable and high-density wiring for field input and output signals, providing a critical interface between DeltaV I/O cards and connected sensors, actuators, or instruments. Engineered for long-term performance in harsh industrial environments, the KJ4001X1-CC1 supports quick installation, secure signal transmission, and simplified maintenance across a broad range of applications.
Key Features
-
Direct DeltaV Integration–Engineered specifically for seamless connection to Emerson DeltaV I/O modules
-
High-Density Design–Compact footprint supports space-saving wiring in control cabinets
-
Robust Electrical Contacts–Maintains secure connections in high-vibration and high-temperature conditions
-
Simplified Wiring–Terminal labeling and accessibility reduce setup time and wiring errors
-
Tool-Free Maintenance–Enables rapid replacement or modification with minimal downtime
-
Durable Construction–Built to withstand the demands of continuous industrial operations
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 120 × 72 × 26 mm |
| Weight | 0.09 kg |
Electrical Characteristics
| Item | Specification |
|---|---|
| Supported Signals | Analog/Digital Input and Output |
| Voltage Range | 0–30 VDC typical (signal level) |
| Insulation Resistance | ≥ 100 MΩ at 500 VDC |
| Dielectric Strength | ≥ 1500 VAC (1 minute) |
| Terminal Contact Type | Screw-clamp or spring-clamp (model-dependent) |
Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Enclosure Rating | IP20 (when properly installed) |
System Compatibility
| Item | Specification |
|---|---|
| Platform | Emerson DeltaV™ Controllers and I/O Modules |
| Application Type | Signal interfacing for analog/digital I/O cards |
Industry Applications
-
Oil & Gas–Used in DCS cabinets for critical process signal interfacing
-
Chemical Processing–Provides reliable connections for hazardous area instrumentation
-
Power and Utilities–Supports automated control and monitoring in generation facilities
-
Pharmaceuticals–Facilitates validated process control wiring in GMP environments
-
Water Treatment–Ensures stable signal transmission in distributed control systems
The Emerson KJ4001X1-CC1 Terminal Blocks deliver dependable signal interfacing and field wiring support for DeltaV automation systems. Their compact design, electrical reliability, and ease of use make them an essential element in any high-performance industrial control infrastructure.
