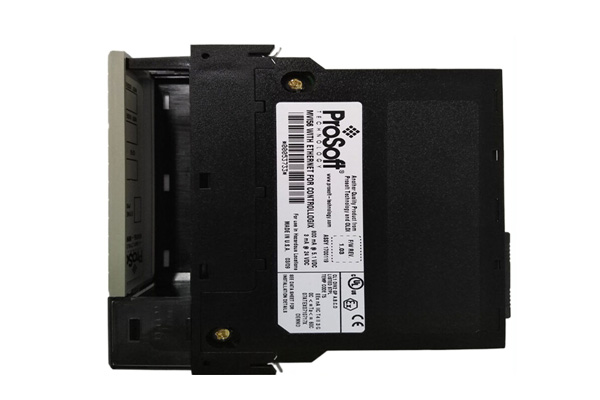

MVI56-MNETC is a TCP/IP client communication module from ProSoft Technology, with multiple functions and application areas, especially in industrial automation systems. The following is a detailed introduction about MVI56-MNETC:

Main features

High speed communication: supports high-speed data transmission, can quickly receive and send pulse signals, suitable for control applications that require high precision and speed.

High reliability: Using high-quality materials and manufacturing processes, it can operate stably in harsh industrial environments, ensuring the reliability and stability of communication.

Easy to integrate: Provides standard interface specifications and communication protocols for easy integration into existing industrial automation control systems.

Strong scalability: With a pluggable design, it is easy to replace and maintain. In addition, stacking multiple switch modules can expand communication capabilities and improve system scalability.

Strong compatibility: Compatible with various industrial automation equipment and systems, such as PLC (Programmable Logic Controller), DCS (Distributed Control System), etc.

Easy to maintain: Provides status indicator lights and fault diagnosis functions, making it convenient for users to discover and solve problems in a timely manner.

Technical parameters

Interface: Comes with a 10/100 Mbits RJ 45 Ethernet port and an RJ 45 CFG port, making it easy to connect to Modbus devices.

Compatibility: Fully compatible with Allen-Bradley’s ControlLogix processor and backward compatible with the ControlLogix backplane.

Power supply: The backplane current load is 800 mA (5 VDC) and 3 mA (24 VDC).

Indicator light: The front of the module has LED indicators for displaying battery status (ERR), application status (APP), and module status (OK).

Working temperature: The working temperature should be between 0 and 60 degrees Celsius. When not in use, it can be stored at a temperature of -40 to 85 degrees Celsius.

Data Memory: With user-defined data memory mapping, it can support up to 5000 15 bit registers.

Server Connection: Supports up to 10 independent server connections using Service Port 502 (MBAP) or Service Port 2000 (encapsulated).
