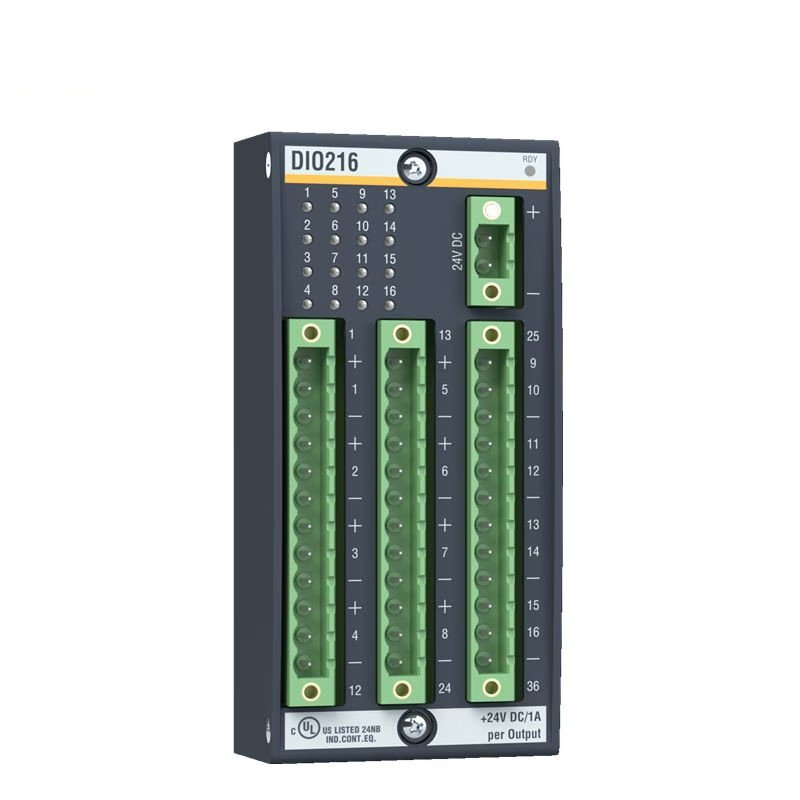

Bachmann DIO216 Digital Input/Output Module

The Bachmann DIO216 is a versatile digital input/output module for industrial automation. It features 16 channels that can be configured as inputs or outputs, offering flexibility for various applications.

Technical Specifications

• Manufacturer: Bachmann electronic GmbH
• Part Number: DIO216
• Product Type: Digital Input/Output Module
• Number of Channels: 16 (configurable as inputs or outputs)
• Input Voltage Range: 15 V DC to 34 V DC
• Low-Level Input Voltage Range: 0 V DC to 5 V DC
• Input Filter: 600 μs (typical)
• Internal Resistance: 6.8 kΩ
• Output Voltage Range: 18 V DC to 34 V DC
• Output Current per Channel: 1 A (max)
• Total Current: 12 A (max)
• Switching Frequency: 1 kHz (max ohmic inductive load)
• Status Indication: LED for each channel (green)
• Interrupt Inputs: 8
• Supply Voltage: 18 V DC to 34 V DC (protected against reverse polarity)
• Galvanic Isolation: 500 V
• Operating Temperature Range: -30°C to +60°C
• Relative Humidity (Operation): 5% to 95% (non-condensing)
• Relative Humidity (Storage): 5% to 95% (with condensation)
• Pollution Degree: 2 (non-condensing)
