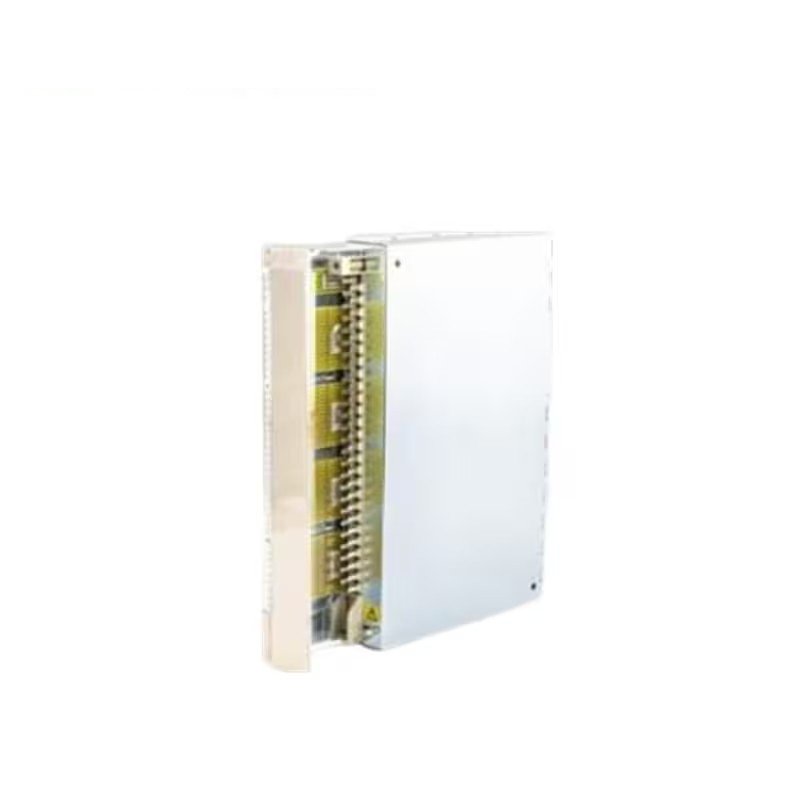

ABB DO610 3BHT00006R1 Digital Output Module

The ABB DO610 3BHT00006R1 is a digital output module designed for industrial applications. It is part of the ABB Advant Master Process Control System. This module features 32 digital outputs, each capable of driving a load up to 200 mA at 24 VDC.

Key Features

• 32 Digital Outputs: Control various devices or processes with 32 channels.
• 24VDC Output: Operates efficiently on a 24 VDC power supply.
• 200mA Output Current: Each channel delivers up to 200 mA of current.
• Non-Isolated: The outputs are not electrically isolated from each other.
• RoHS Compliance: This module meets RoHS directives, restricting hazardous substances.
• WEEE Category: Classified as small equipment under the WEEE directive.

Technical Specifications

• Part Number: 3BHT00006R1
• Product Type: Control System Accessory
• Dimensions:
  • Depth/Length: 252 mm
  • Height: 273 mm
  • Width: 40 mm
• Weight: 1.195 kg
• HS Code: 853890 – Parts suitable for use solely or principally with apparatus of heading 85.35, 85.36, or 85.37 – Other.
• Customs Tariff Number: 85389091

Applications

The DO610 module commonly supports various industrial automation and process control applications, such as:

• Controlling valves and actuators.
• Monitoring and controlling pumps and motors.
• Signaling alarms and indicators.
• Implementing safety interlocks.
