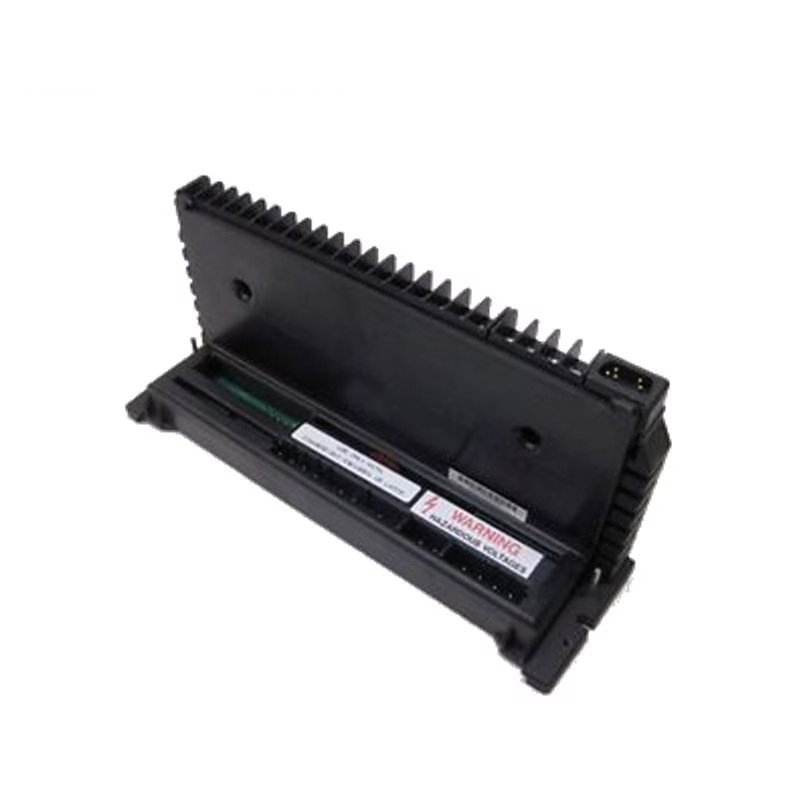

GE Fanuc IC660TBA105 Genius Terminal Assembly

The IC660TBA105 is a terminal assembly designed for the GE Fanuc Genius I/O system. It connects to the IC660BBA105 I/O module, which provides current-source analog outputs for industrial automation. This terminal assembly serves as the physical interface between the control system and field devices such as sensors and actuators.

With a focus on industrial reliability, the IC660TBA105 supports diagnostic capabilities and offers robust environmental protection, making it well-suited for demanding process control environments.

Technical Specifications

• Part Number: IC660TBA105
• Brand: GE Fanuc
• Series: Genius I/O
• Type: Terminal Assembly
• Block Type: Six current-source analog outputs (typically 4-20mA)

Electrical Specifications

• Rated Voltage:
  • 115V AC / 125V DC
• Power Supply Voltage:
  • 93 to 132V AC
  • 105 to 145V DC
• Maximum Current:
  • 250 milliamps (AC)
  • 140 milliamps (DC)
• Power Supply Dropout Time:
  • 1 cycle (AC)
  • 10 milliseconds (DC)
• Frequency: 47 to 63 Hz
• Ripple: 10% maximum

Accuracy and Performance

• Output Signal Accuracy: 0.15% at full-scale reading
• Update Frequency: 25 milliseconds

Environmental and Mechanical Specifications

• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature: -40 to 100°C (-40 to 212°F)
• Relative Humidity: 5% to 95% (non-condensing)
• Vibration Resistance: 5 to 10 Hz with 5.08 mm (0.2 in) displacement

Physical Dimensions

• Dimensions: 224 x 88 x 100 mm (8.8 x 3.5 x 3.9 inches)
• Weight: 1.3 lbs
