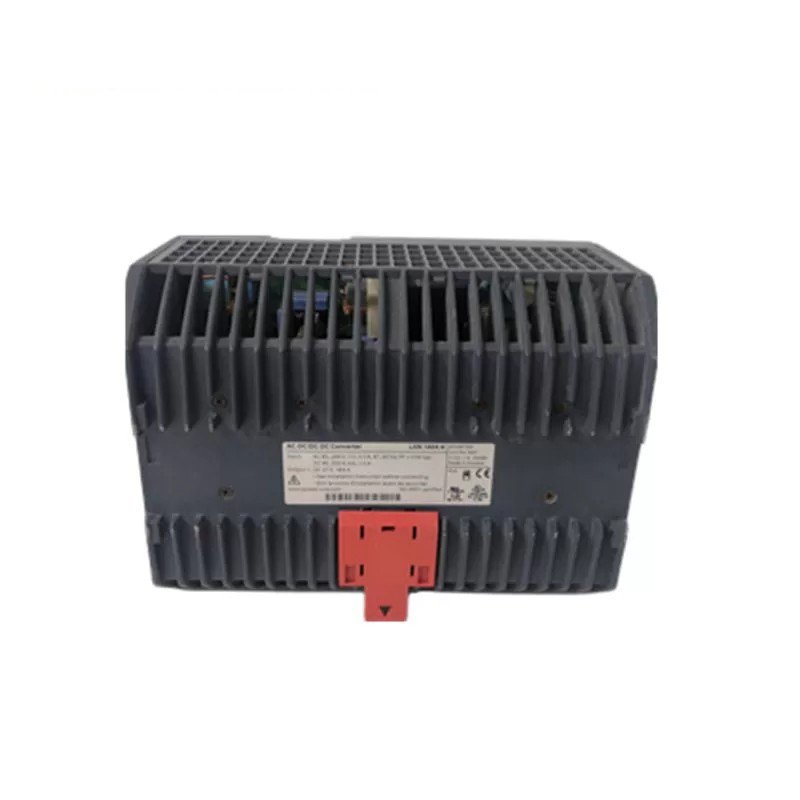

The ABB LXN1604-6 LXN1604-6 3BHL000986P7000 is a robust power module designed for industrial applications. It functions as either an AC-DC or DC-DC converter, delivering a stable 27V output at 500W. This unit powers ABB drives, characterized by its high efficiency, reliability, and compatibility with demanding industrial environments.

Technical Specifications

Design: Rugged 35 mm DIN-rail snap-fit, Class I equipment

Input: Universal AC input (90-350V) or DC input (90-350V)

Output: Single output, 27V, 500W

Efficiency: Up to 89%

Features

• Power factor correction
• Low inrush current
• High immunity to electrical disturbances (IEC/EN 61000-4-2, -3, -4, -5, -6, -11)
• Low electromagnetic emissions (EN 55011/022)
• Short-term output peak power capability
• Rectangular current limiting
• Output protection: no-load, overload, short-circuit
• PCB protection: lacquer coating
