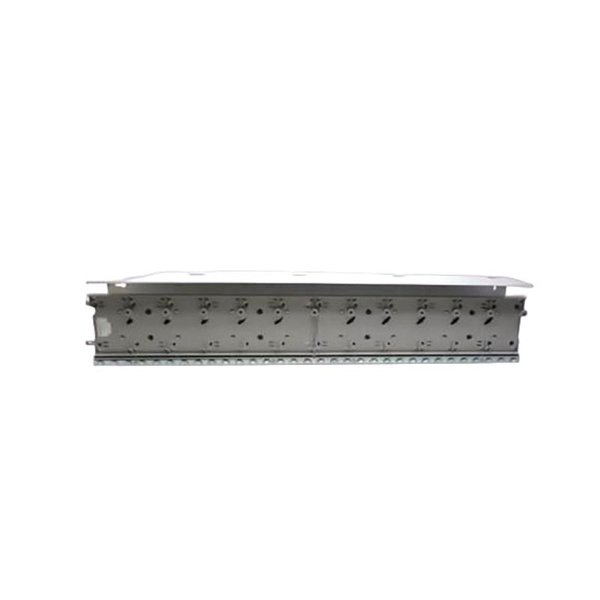

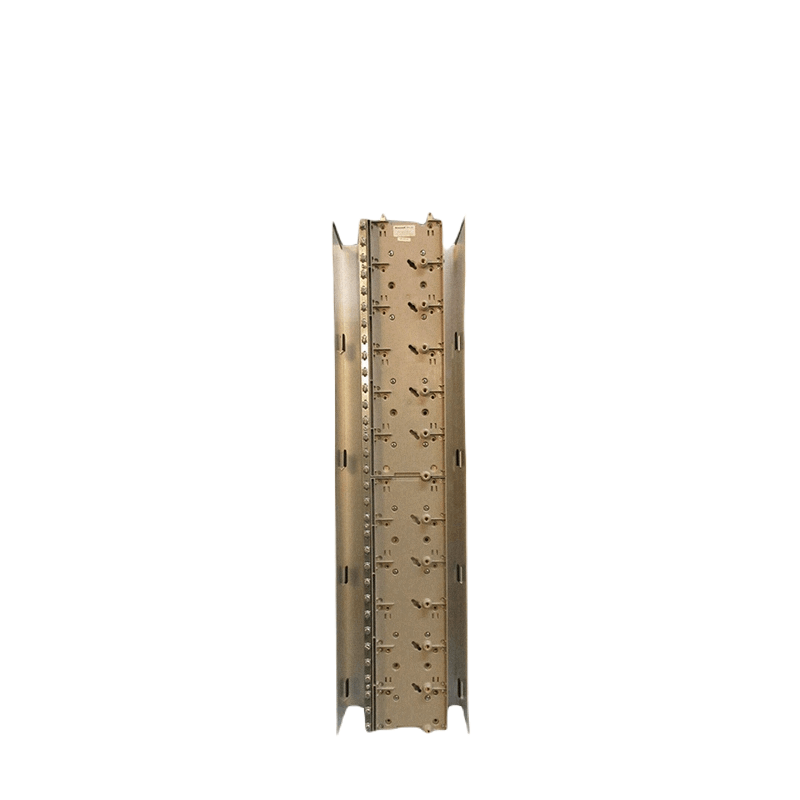

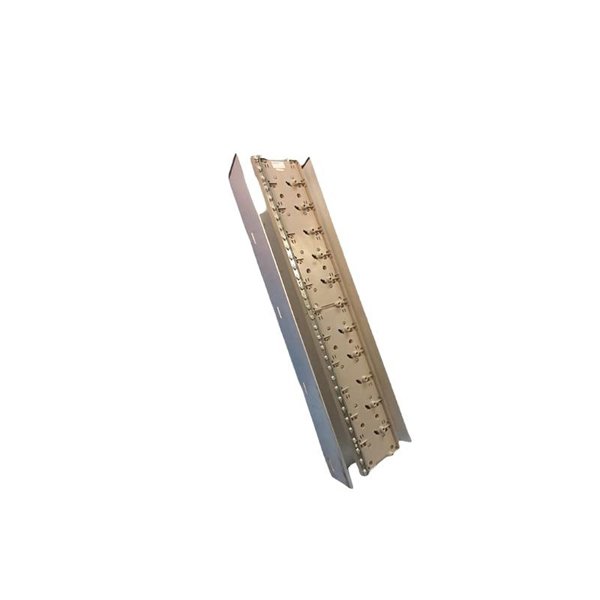

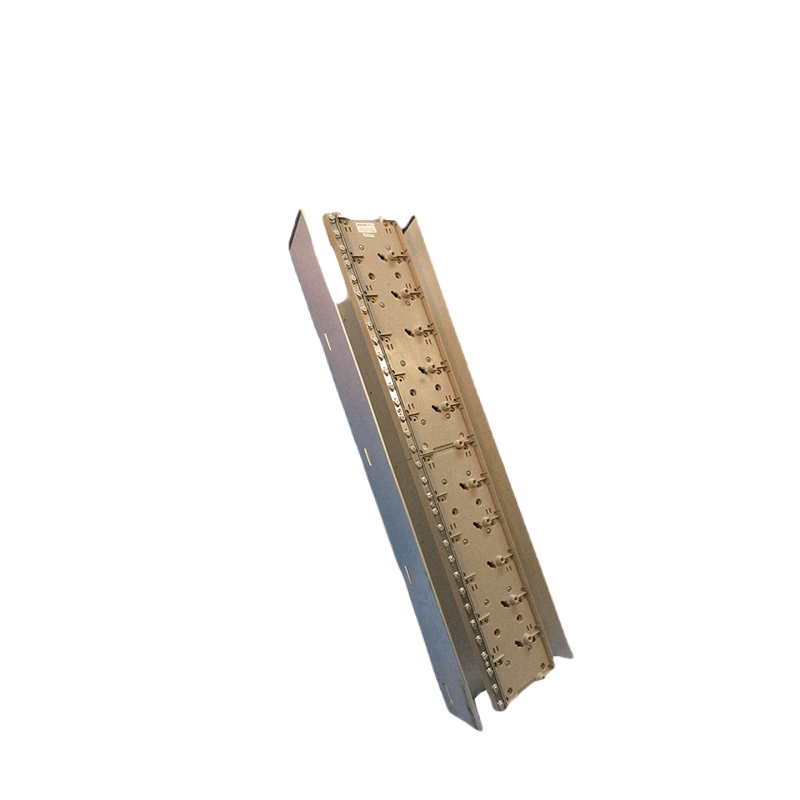

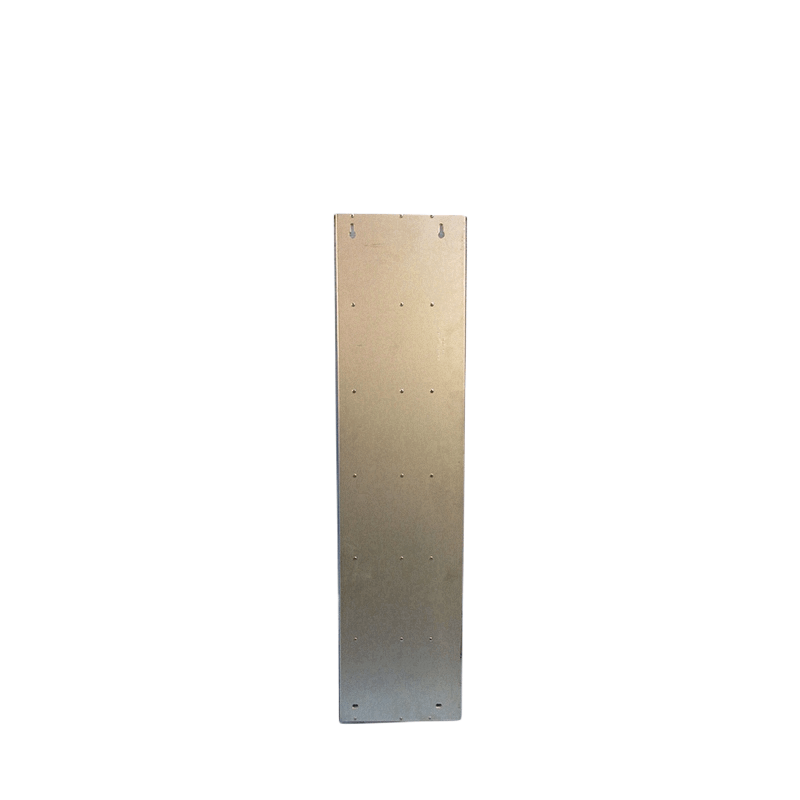

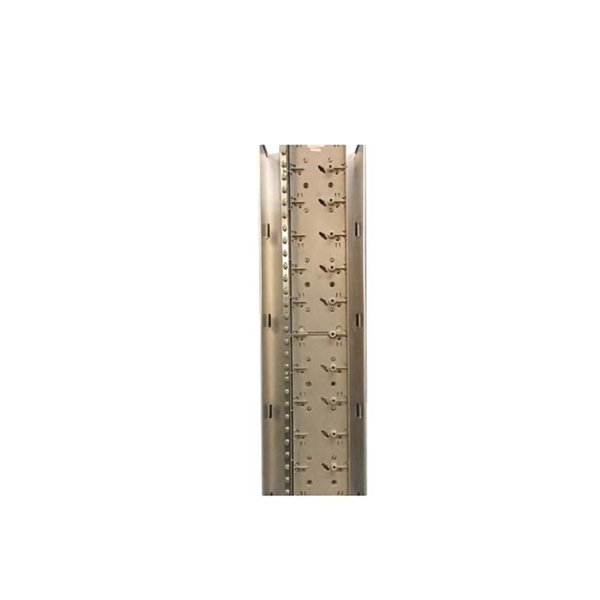

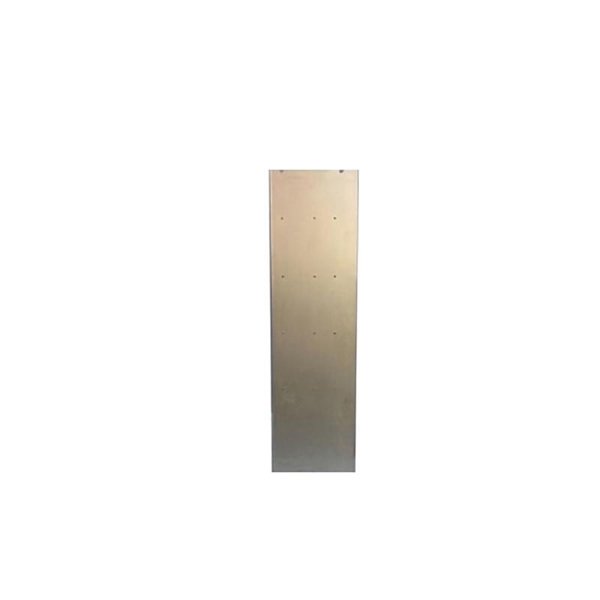

Honeywell CC-MCAR01 51403892-100 Carrier Channel Assy Assembly

The Honeywell CC-MCAR01 Carrier Channel Assembly (part number 51403892-100) is a precision-engineered component designed for use in advanced control systems within industrial automation and process control environments. This assembly acts as a robust mechanical and electrical interface, facilitating secure mounting and reliable connectivity for Honeywell’s range of controllers and modules. Manufactured to meet stringent quality and durability standards, the CC-MCAR01 supports seamless integration into existing systems, enhancing overall equipment performance and serviceability.

Product Specifications

Product Applications

• Industrial Automation Control Racks

• Distributed Control Systems (DCS)

• Safety Instrumented Systems (SIS)

• Process Control Panels in Oil & Gas, Petrochemical, and Power Plants

• Manufacturing Execution Systems (MES) hardware assemblies

• Replacement part in Honeywell Experion and other automation suites

The CC-MCAR01 is designed to provide mechanical stability and maintain electrical continuity for complex control systems operating in demanding industrial environments.

Product Advantages

• Robust Build Quality: Constructed from durable aluminum alloy with a corrosion-resistant coating, ensuring long service life even in harsh industrial conditions.

• Precision Engineering: Enables precise alignment and stable mounting of modules, minimizing vibrations and mechanical stress.

• Compatibility: Fully compatible with Honeywell’s broad range of controller modules, enabling flexible system upgrades and maintenance.

• Ease of Installation: Designed for quick installation on standard DIN rails with minimal tools required, reducing downtime during system upgrades or repairs.

• Thermal Stability: Withstands a wide operating temperature range, maintaining structural integrity and connection reliability.

• Regulatory Compliance: Meets international standards such as RoHS and CE, assuring users of safety and environmental responsibility.

• Serviceability: Modular design simplifies troubleshooting and replacement without disturbing other system components.

Frequently Asked Questions (FAQ)

1. Q: What is the primary function of the Honeywell CC-MCAR01 Carrier Channel Assembly?

   A: It serves as a mechanical and electrical interface for mounting and connecting Honeywell control modules securely.

2. Q: Is the CC-MCAR01 compatible with all Honeywell controller modules?

   A: It is compatible with most Honeywell modules designed for DIN rail mounting but should be verified against specific model requirements.

3. Q: What are the environmental limits for using this assembly?

   A: It operates safely between -40°C and +70°C and can be stored between -50°C and +85°C.

4. Q: How is the assembly mounted?

   A: The assembly mounts onto standard DIN rails using screw fasteners for a secure fit.

5. Q: Can the CC-MCAR01 be used in explosive or hazardous environments?

   A: While the assembly itself is rugged, suitability for hazardous environments depends on the overall system certification; please consult Honeywell’s hazardous area documentation.

6. Q: What is the material of the carrier channel?

   A: It is made from a high-grade aluminum alloy with a corrosion-resistant finish.

7. Q: Does the assembly include electrical connectors?

   A: It includes standard interface connectors compatible with Honeywell modules but does not supply power or signal on its own.

8. Q: How weigh is the CC-MCAR01?

   A: It weighs 9.07 kg.

9. Q: Is the assembly RoHS compliant?

   A: Yes, it complies with RoHS directives and CE certification.

10. Q: Can I order replacement parts for the CC-MCAR01?

    A: Yes.
