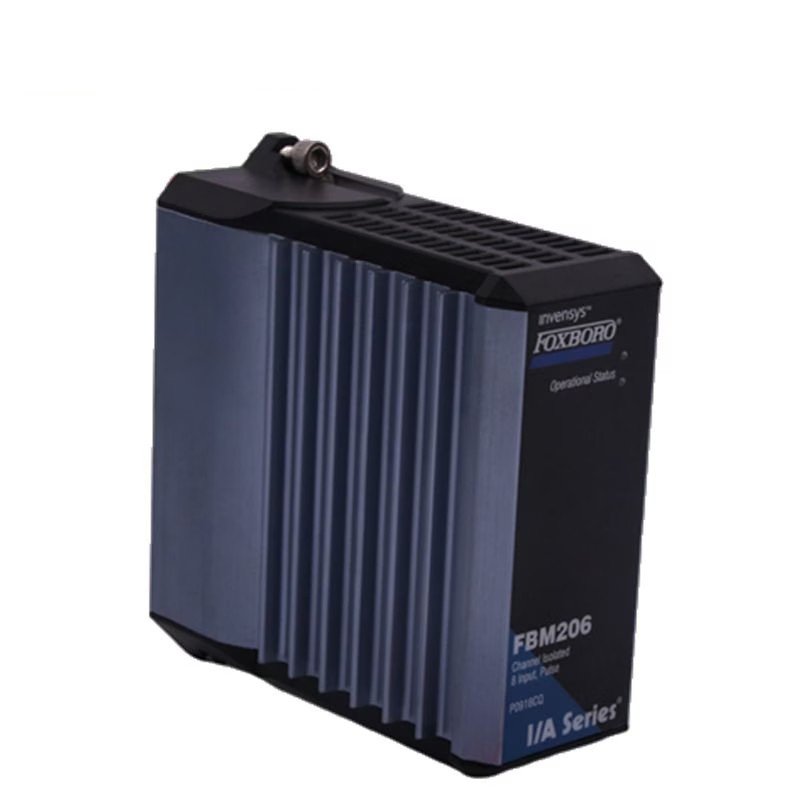

Foxboro FBM206 P0916CQ Pulse Input Module

The Foxboro FBM206 P0916CQ is an 8-channel pulse input module designed for use with Foxboro I/A Series Distributed Control Systems (DCS). It accepts pulse signals from various devices, including vortex meters, turbine meters, and solid-state or electromechanical contacts. The module is essential for accurately measuring rotational speed or frequency in industrial processes. It offers reliable data acquisition with high-speed pulse input and isolation between channels to prevent interference.

Technical Specifications

• Manufacturer: Foxboro (Schneider Electric)
• Model Number: FBM206 P0916CQ
• Product Type: Pulse Input Module
• Number of Channels: 8 pulse input channels
• Input Signal Range: Configurable from 7 to 27 VDC
• Maximum Input Frequency: 25 kHz per channel
• Isolation: Galvanic isolation between channels and ground
• Signal Types: Pulse input from devices such as vortex meters, turbine meters, and electromechanical contacts
• Data Conversion: Sigma-Delta conversion for high accuracy
• Update Rate: 25 ms per channel
• Power Consumption: ≤ 3 W
• Operating Temperature Range: -40°C to +70°C (-40°F to +158°F)
• Dimensions: 4.5 cm x 11.5 cm x 11 cm
• Weight: 0.3 kg
