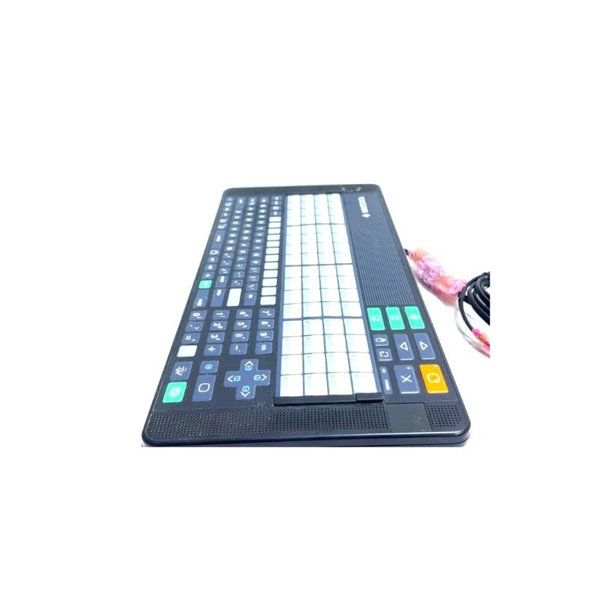

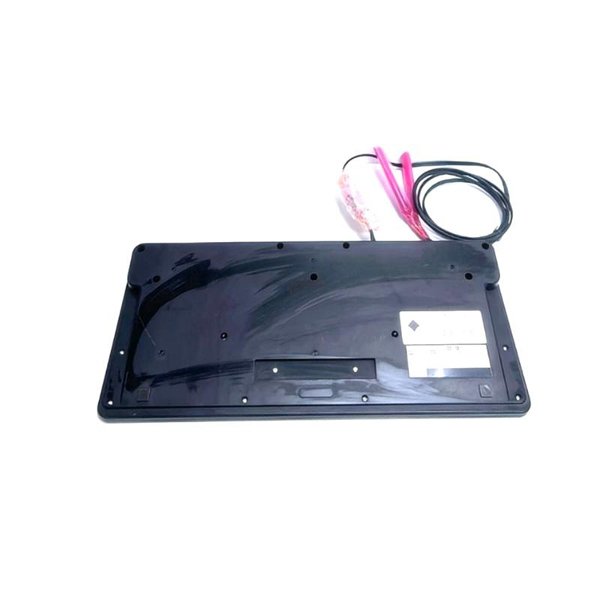

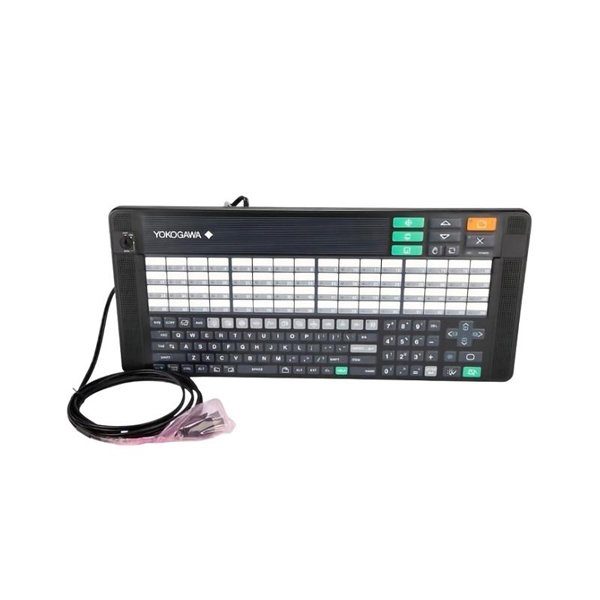

YOKOGAWA AIP830-101 Operation Keyboard for Single

The Yokogawa AIP830-101 is a specialized operation keyboard designed for single-loop operation in desktop-type Human Interface Stations (HIS). This compact and user-friendly device helps interact with and control various industrial processes and systems.

Key Features and Specifications

Independent USB Speaker: The AIP830-101 includes a built-in USB speaker, offering clear and audible alerts and notifications. This feature provides a more robust user experience compared to traditional buzzer sounds.

Dedicated Desktop Use: Each AIP830 keyboard is designed for use with a single desktop HIS, ensuring optimal performance and control.

USB Interface: The keyboard connects to a computer via a standard USB interface, enabling easy integration into existing systems.

Durable Construction: Built to withstand harsh industrial environments, the AIP830 offers reliable and long-lasting operation.

Customizable: The AIP830 provides various configuration options, including different key layouts and functionality, to meet specific application requirements.

Technical Specifications

• Type: Flat-panel keyboard with USB speaker functionality
• PC Interface: USB Type A connector x 2
• Operation Keyboard Functions: USB 2.0 (full speed, bus powered)
• Sound Functions: USB 1.1 (full speed, bus powered)
• Input Voltage: 5V ± 5% (from PC USB port)
• Maximum Consumption Current: 1A
• Weight: Approximately 2.0 kg (without VESA bracket), approximately 2.5 kg (with VESA bracket)
• Operating Environment:
  • Temperature: 5 to 40°C (normal operation), -20 to 60°C (storage and transportation)
  • Humidity: 20% to 80% relative humidity (non-condensing)

Model Code Breakdown

The model code AIP830-101 includes several components:

• AIP830: Basic model designation
• -1: Indicates the presence of a mode selection switch
• 0: Specifies the type of connection for the 15th key (according to operation CON connection rules)
• 1: Always set to 1
• /VESA: Optional VESA bracket for mounting

Additional Information

For more detailed specifications and information, refer to the official Yokogawa product documentation: GS33J50C32-01EN. This document provides a comprehensive overview of the AIP830‘s hardware specifications and operating guidelines.

Applications

The Yokogawa AIP830-101 is commonly used in a wide range of industries, including:

• Process Control: Monitoring and controlling industrial processes such as temperature, pressure, and flow rate.
• Power Generation: Operating power plants and managing energy distribution.
• Oil and Gas: Monitoring and controlling operations in oil and gas production facilities.
• Chemical Processing: Overseeing chemical reactions and processes.
• Pharmaceutical Manufacturing: Controlling production processes in pharmaceutical plants.
