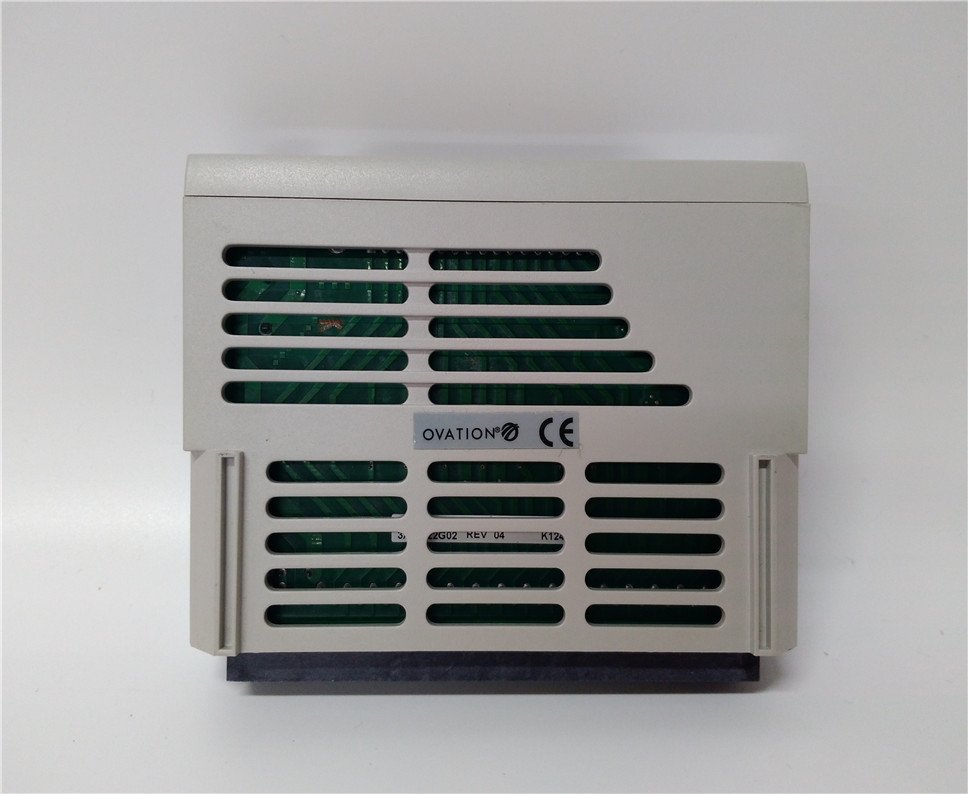

Ovation 1C31238H01 Digital Input Module

The OVATION 1C31238H01 serves as a PMOD cavity insert, intended for use alongside a PMOD header board, which is designed to establish electrical connections between the 1C31238H01 and the host system. PMOD, a standard for interfacing peripherals with microcontrollers and embedded systems, is the foundation of this configuration.

This versatile component, the 1C31238H01, facilitates the monitoring of various digital inputs, encompassing switches, sensors, and encoders. It incorporates numerous features that render it well-suited to diverse applications:

• Supporting 16 channels of digital input
• Incorporating optically isolated inputs
• Enabling programmable interrupt generation
• Facilitating programmable input edge detection
• Allowing for customizable filter time settings
