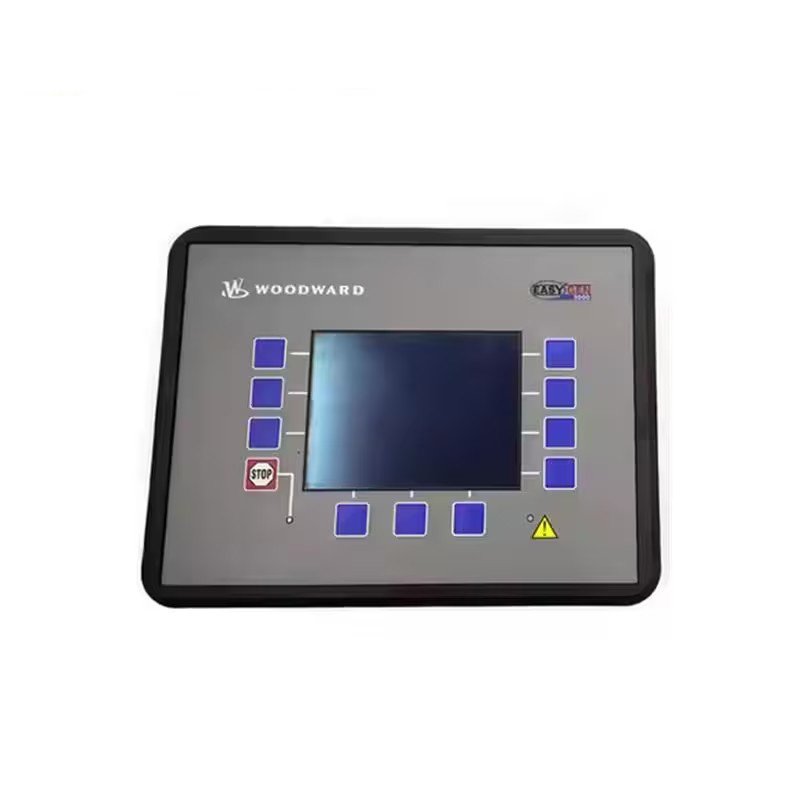

Woodward 37532 easYgen-3100/3200 Generator Set Controller

The Woodward 37532 easYgen-3100/3200 is a sophisticated controller for managing engine-generator systems. It belongs to the easYgen-3000 series, known for its flexibility and reliable performance across diverse applications. This controller supports everything from backup power solutions to complex co-generation setups, ensuring efficient control in both grid-connected and islanded environments.

Technical Specifications

• Engine Control: Supports precise speed and load regulation.
• Generator Control: Adjusts output voltage, frequency, and synchronization.
• Engine Protection:
  • Overspeed protection
  • Overtemperature alerts
  • Fault detection
• Generator Protection:
  • Overcurrent monitoring
  • Overvoltage safeguards
  • Fault isolation
• Communication Protocols:
  • CAN bus
  • RS-232
  • RS-485
• User Interface:
  • LCD Display for real-time monitoring
  • Alarm Indicators for system alerts
  • Intuitive Menu Navigation
• Power Management:
  • Load Sharing: Balances power between multiple generators.
  • Peak Shaving: Reduces power demand during peak times.
• Inputs and Outputs:
  • Multiple analog and digital inputs
  • Configurable relay outputs for flexible connections
• Power Consumption:
  • Max Power Consumption Per Path: < 0.15 W
• Primary Setting Range: 50 – 650,000 Vac
• Front Panel Dimensions: 282W x 217H x 99D mm
• Operating Temperature Range: Suitable for harsh industrial environments.
