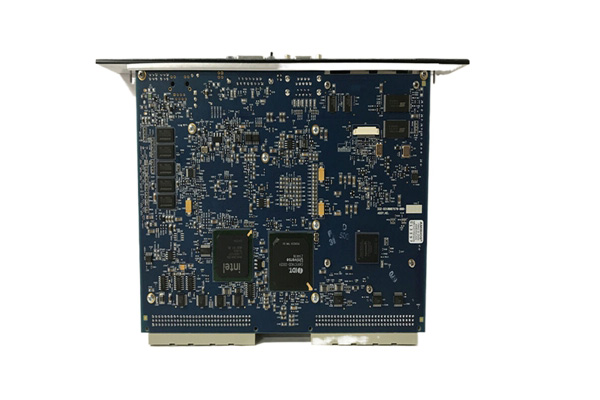

General Electric IC698CPE040 Input Voltage Processor

GE IC698CPE040 is a product developed by General Electric, The central processing unit (CPU) manufactured by GE is mainly used in industrial automation and control systems. The following is detailed information and features about the processor:

Basic parameters and specifications

Input voltage range: 12-48VDC

Output voltage range: 5VDC

Output current: maximum 10A

Efficiency: greater than 90%

CPU: Equipped with a Pentium M microprocessor, the specific model may be a 32-bit RISC processor

Size and weight

• Dimensions: 170mm x 105mm x 32mm (length x width x height)
• Weight: Approximately 120g (according to some information, the weight may also be 1.66kg, but 120g seems to be more in line with the general weight of a circuit board)

Functional characteristics

PLC control: IC698CPE040 is designed for use in RX7i PACSystem PLCs or programmable logic controllers to perform real-time control of equipment, processes, and material handling structures.

Processing power: The processor is equipped with 64 MB of user memory and 64 MB of user flash memory to support complex control logic and data processing tasks.

Communication interface: equipped with multiple communication interfaces, such as Ethernet, serial communication, etc., for data exchange with other devices and systems.

Fault diagnosis and monitoring: capable of detecting and reporting equipment or system failures, improving system reliability and maintainability.

Scalability: The rack mounted backplane design allows for communication with input/output and intelligent optional modules through the VME64 standard format, supporting system expansion and upgrades.
