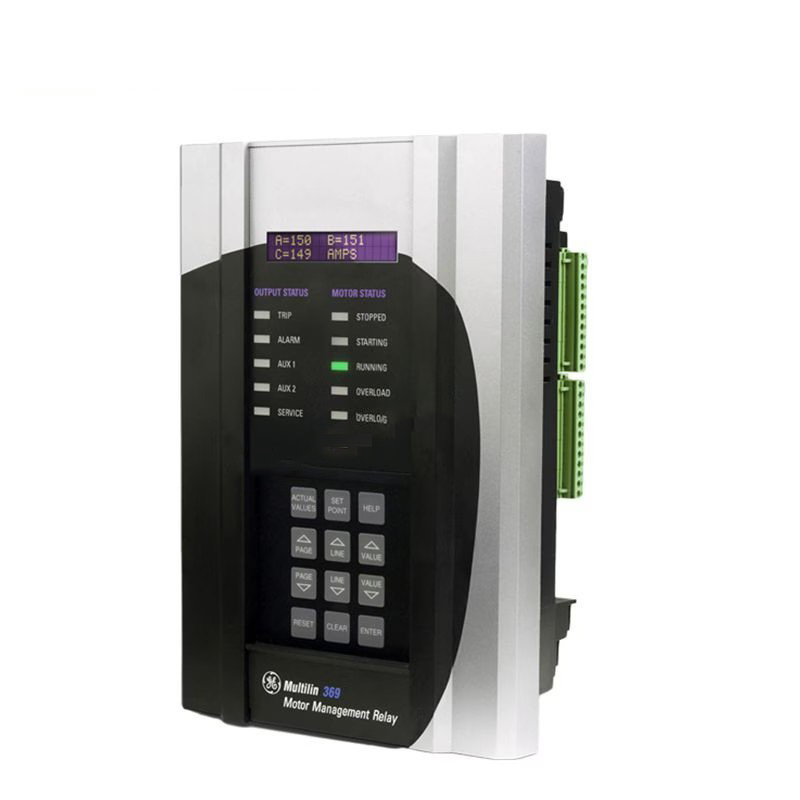

The GE Multilin 369-LO-R-M-0-0-0-E is a rugged motor protection relay. It protects medium-sized AC motors in tough industrial settings. The relay provides continuous monitoring, control, and diagnostic capabilities. With reliable protection, it minimizes downtime and extends motor life. Additionally, its flexible configuration supports a wide range of applications.

Technical Specifications

• Product Type: Motor Protection Relay
• Manufacturer: General Electric (GE)
• Model Number: 369-LO-R-M-0-0-0-E
• Mounting Type: Panel-mounted
• Operating Voltage: 20–60 VDC / 20–48 VAC (LO Control Power)
• Operating Temperature: Suitable for harsh environments
• Maximum Altitude: 2000 m
• Insulation Class: I
• Dimensions: 29.6 cm (H) × 10.7 cm (W) × 20.5 cm (L)
• Phase Current Inputs: 1 A and 5 A secondary
• RTD Inputs: Supports up to 12 RTDs
• Display: 40-character alphanumeric with LED status indicators
• Event Triggers: Power fail, alarm, trip, inhibit, waveform capture
• Communication Ports: RS232 (front), RS485 (rear)
• Optional Communication: Profibus DP/DPV1 or DeviceNet
