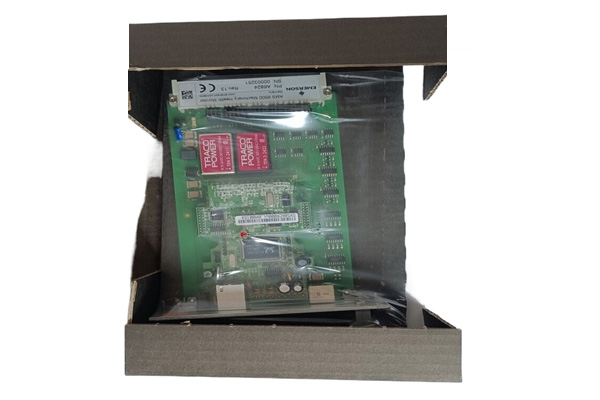

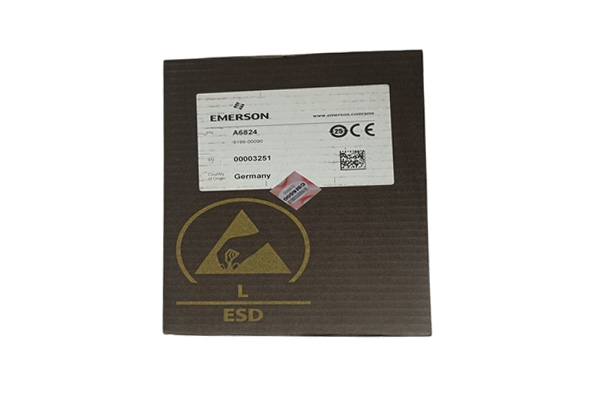

The Emerson A6824 module is a high reliability ModBus and rack interface module designed specifically for factory environments, primarily used for monitoring and protecting the most critical rotating machinery in factories. The following is a detailed introduction to the module:

Basic functions and features

High reliability: Designed specifically for the high reliability requirements of factories, suitable for applications such as steam, gas, compressors, and hydraulic turbine machinery.

Parameter reading and output: Read parameters from all AMS 6500 modules and output them via ModBus TCP/IP and/or ModBus RTU (serial).

Seamless integration: Provides seamless integration of mechanical health parameters for operators in a controlled environment, facilitating real-time monitoring and management.

Space optimization: The 3U size, 1-slot plug-in module design reduces cabinet space requirements by half compared to traditional 6U cards.

Technical parameters

Data output:

ModBus RTU (serial): 19.2 kbaud, data bit 8, even parity, stop bit 1.

ModBus Ethernet: RJ 45 socket, 10BaseT.

Default address: IP address 192.168.255.1, subnet mask 255.255.255.0.

Power and power consumption: The green LED indicates that the power supply is normal, with a maximum power consumption of 5W.

Environmental adaptability:

Working temperature: 0 ° C -65 ° C (32 ° F -149 ° F).

Storage temperature: -30 ° C -85 ° C (-22 ° F -185 ° F).

Relative humidity: 5% -95%, no condensation.
