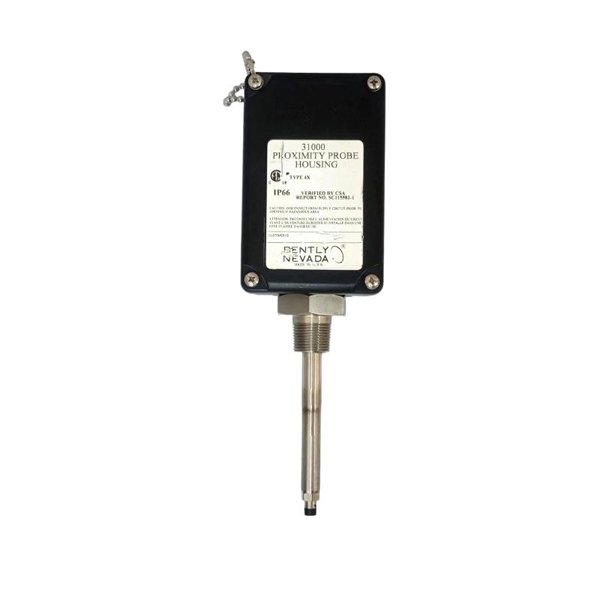

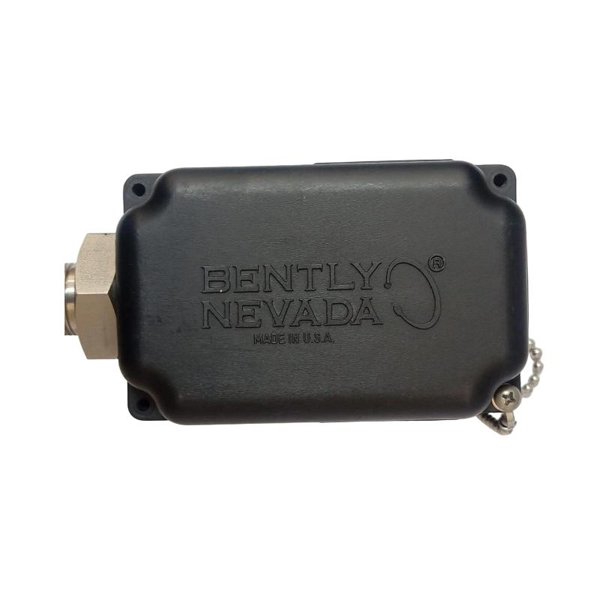

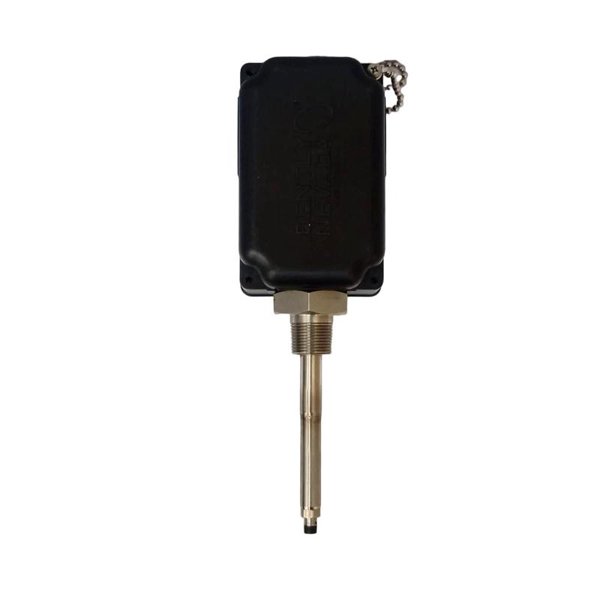

The Bently Nevada 330881-28-00-150-03-02 PROXPAC Proximity Sensor is a highly reliable and precision-engineered sensor designed for measuring proximity in industrial settings. Part of Bently Nevada’s PROXPAC series, this sensor is specifically designed to offer high precision for monitoring the position of rotating machinery components like turbines, motors, and pumps.

Built with durability in mind, the 330881-28-00-150-03-02 proximity sensor features stainless steel housing and is IP66 rated, ensuring it is dustproof and waterproof for use in harsh environments. It operates effectively across a broad temperature range, from -40°C to +85°C, making it suitable for a variety of industrial applications.

With 91.4 x 144.8 mm dimensions and 1.44 kg weight, this proximity sensor is compact and easy to install in limited space, without compromising on functionality or reliability.

Product Specifications

Product Applications

The Bently Nevada 330881-28-00-150-03-02 PROXPAC Proximity Sensor is commonly used in industrial environments for precise measurement of proximity in various applications:

1. Rotating Machinery Monitoring

   The PROXPAC proximity sensor is used extensively to monitor rotating machinery, such as turbines, compressors, and motors. It detects changes in position and identifies misalignment or potential issues before they cause damage, helping prevent costly downtime.

2. Vibration Monitoring Systems

   This sensor is integral to vibration monitoring systems, providing real-time proximity data to assess the health of rotating equipment. It assists in detecting imbalances, misalignments, and other anomalies that can lead to mechanical failure.

3. Condition Monitoring and Predictive Maintenance

   The 330881-28-00-150-03-02 is crucial in condition-based maintenance (CBM) programs. It helps in monitoring equipment health by detecting proximity shifts that indicate wear, misalignment, or excessive vibration, enabling timely maintenance actions.

4. Position Feedback for Automated Systems

   The PROXPAC sensor is used for position feedback in automated systems that require high-accuracy measurements of rotational components or movable machinery. It ensures optimal performance and longevity of actuators and control valves.

5. Shaft Speed and Alignment Monitoring

   For applications where precise shaft speed and alignment are critical, the PROXPAC sensor provides accurate proximity data to maintain correct alignment and rotational speed, ensuring efficiency and preventing mechanical failure.

6. Turbine Monitoring

   In turbine protection systems, the 330881-28-00-150-03-02 is utilized to monitor the relative position of rotor blades and other critical turbine components. This data is crucial for avoiding damage and optimizing turbine performance.

Product Advantages

• High Precision and Sensitivity

  The 330881-28-00-150-03-02 PROXPAC proximity sensor delivers micron-level accuracy for highly sensitive proximity measurements, ensuring that even small shifts in machinery are detected early.

• Robust and Durable Design

  With its stainless steel housing and IP66 protection rating, the sensor is designed to operate reliably even in harsh industrial environments exposed to dust, moisture, and other contaminants.

• Wide Temperature Range

  The PROXPAC sensor can operate across a wide temperature range from -40°C to +85°C, making it suitable for use in industrial environments with fluctuating or extreme temperatures.

• Digital Output for Seamless Integration

  The sensor provides a digital NPN output, which makes it compatible with modern control systems and monitoring equipment, ensuring easy integration into automated industrial processes.

• Vibration Resistance

  This sensor is built to resist high levels of vibration, ensuring stable and accurate readings in environments with frequent mechanical movement and vibration, which are common in rotating machinery.

• Compact and Easy to Install

  The PROXPAC proximity sensor’s compact design (91.4 x 144.8 mm and 1.44 kg) makes it easy to install in spaces where larger sensors might not fit, while still delivering top-tier performance.

FAQ

1. What is the output type of the Bently Nevada 330881-28-00-150-03-02 PROXPAC Proximity Sensor?

   The PROXPAC sensor outputs a digital NPN signal, which is widely compatible with control systems and data acquisition systems.

2. What is the operating temperature range of the PROXPAC sensor?

   The 330881-28-00-150-03-02 sensor operates in a temperature range of -40°C to +85°C, making it suitable for use in both cold and hot environments.

3. How far can the PROXPAC sensor measure?

   The sensor has an operating range of up to 25 mm, providing accurate proximity measurements over this distance.

4. What protection level does the PROXPAC sensor have?

   The 330881-28-00-150-03-02 is rated IP66, meaning it is fully protected against dust and water, ensuring reliable operation in challenging environments.

5. How is the PROXPAC proximity sensor mounted?

   The sensor can be mounted using its threaded design, making it easy to install in panel-mounted configurations.

6. What is the current consumption of the PROXPAC sensor?

   The 330881-28-00-150-03-02 consumes between 20-30 mA of current, making it energy efficient.

7. Can the PROXPAC sensor handle high-vibration environments?

   Yes, the PROXPAC sensor is designed to withstand high levels of vibration, making it ideal for use in rotating machinery and other high-vibration environments.

8. What is the housing material of the PROXPAC sensor?

   The sensor is housed in stainless steel, offering durability and resistance to corrosion in harsh industrial environments.

9. Is the PROXPAC sensor suitable for both analog and digital systems?

   The 330881-28-00-150-03-02 sensor is specifically designed for digital systems and provides a digital NPN output.

10. What is the maximum operating frequency of the PROXPAC proximity sensor?

    The sensor operates with a maximum frequency of 1 kHz, ensuring fast and accurate proximity measurements.
