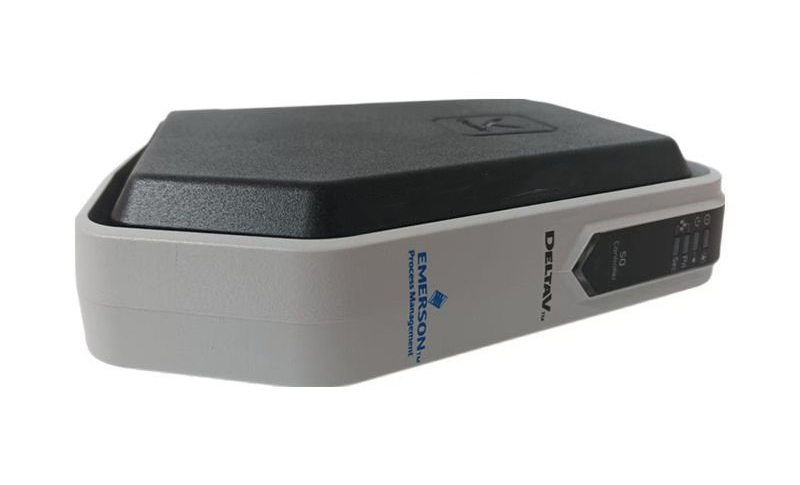

The Emerson KJ2005X1-SQ1 is an SQ Controller Module for the DeltaV Distributed Control System (DCS). It ensures reliable communication and efficient control in industrial automation.

Model Information

• Model Number: KJ2005X1-SQ1
• Type: SQ Controller Module

Power Specifications

• Local Bus Power: +5 VDC at 1.4 A

Environmental Specifications

• Operating Temperature: -40°C to +70°C (-40°F to +158°F)
• Shock Resistance: 10 g, ½ sine wave for 11 ms
• Vibration Resistance: 1 mm peak-to-peak (2-13.2 Hz); 0.7 g (13.2-150 Hz)
• Humidity Range: 5% to 95% RH (non-condensing)
• Airborne Contaminants: ISA-S71.04 –1985 Class G3
