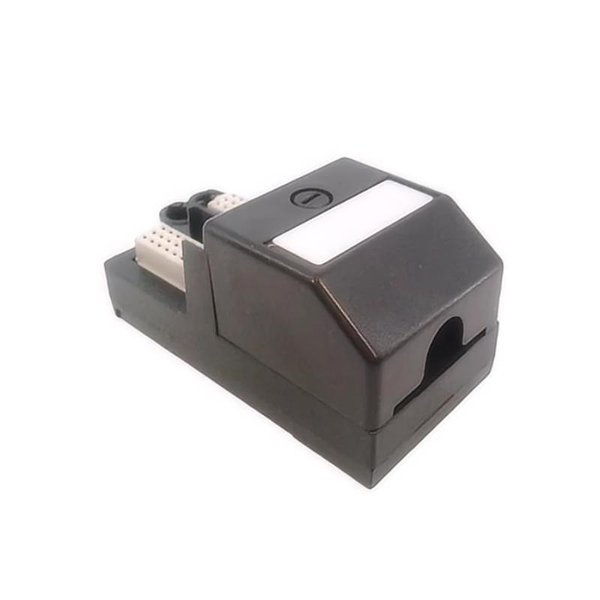

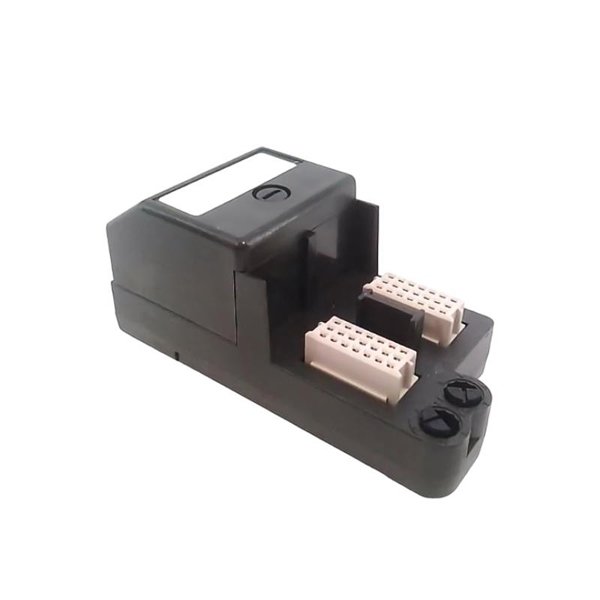

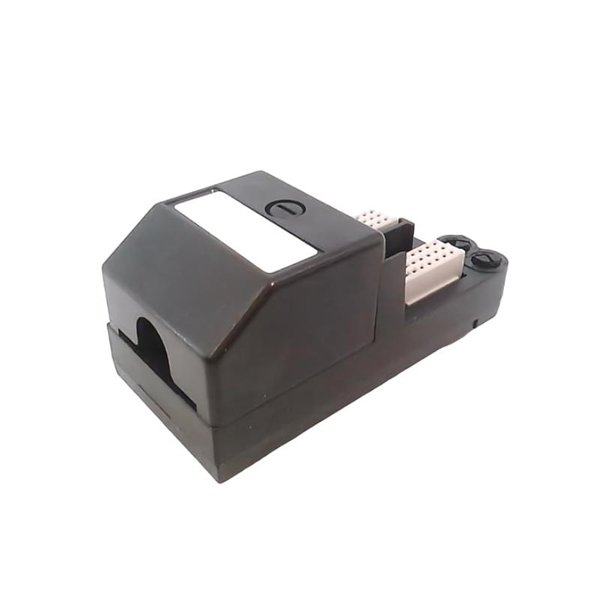

The Emerson KJ4001X1-CK1 Mass Terminal Block (40 Pins) is an essential component within the DeltaV distributed control system (DCS) architecture. It provides a high-density wiring interface that allows up to 40 channels to be connected in a compact and reliable format. Designed for modularity and serviceability, the KJ4001X1-CK1 enables secure electrical connections between I/O modules and field wiring, ensuring signal integrity and long-term stability.

This mass terminal block is engineered to handle a wide range of control signals, including analog, digital, and relay outputs, depending on the associated I/O module type. It is widely used in process automation applications where space optimization, reliability, and ease of maintenance are critical.

By incorporating robust construction, secure pin alignment, and industrial compliance, the KJ4001X1-CK1 provides a reliable platform for high-availability applications in industries such as oil & gas, chemicals, power generation, and water treatment.

Product Specifications

Applications

The KJ4001X1-CK1 Mass Terminal Block is suitable for multiple industries and control scenarios:

• Process Automation: Provides dense wiring interfaces for large-scale I/O systems.

• Oil & Gas Industry: Used in offshore and onshore platforms to support redundant control signals.

• Power Plants: Ensures stable signal interfacing for turbine, generator, and auxiliary system controls.

• Water and Wastewater Management: Manages control wiring for pumps, valves, and monitoring equipment.

• Pharmaceutical Manufacturing: Supports high-precision I/O connections for batch process automation.

• Food & Beverage Production: Provides reliable wiring for fast-paced production environments.

Advantages

• High-Density Connection: Supports up to 40 channels in a single block, saving panel space.

• Secure Wiring: Provides firm, vibration-resistant connections to prevent signal loss.

• Versatile Signal Handling: Compatible with analog, digital, and relay signal interfaces.

• Service-Friendly Design: Allows easy installation, wiring, and module replacement.

• Robust Construction: Industrial-grade build ensures durability in demanding environments.

• Scalable: Easily integrates with larger DeltaV systems, supporting expansion projects.

• Fault Tolerance: Works with redundant DeltaV configurations for high system availability.

• Compliance Certified: CE, UL, and CSA certifications guarantee international standards.

FAQ

1. What type of system is the KJ4001X1-CK1 designed for?

   It is designed for Emerson DeltaV distributed control systems.

2. How many pins does this terminal block provide?

   It provides 40-pin high-density wiring capability.

3. What signal types can it support?

   It supports digital, analog, and relay signals depending on paired I/O modules.

4. Is it compatible with redundant configurations?

   Yes, it supports redundant wiring setups within DeltaV systems.

5. Can it be hot-swapped during operation?

   No, terminal blocks typically require system maintenance mode before replacement.

6. Does it provide diagnostic capability?

   The block itself is passive, but diagnostics are available through connected I/O modules.

7. What environmental conditions can it operate under?

   It can operate at 0°C to +60°C and withstands industrial vibration conditions.

8. Is it certified for industrial compliance?

   Yes, it is CE, UL, and CSA certified.

9. How is wiring connected to the block?

   Via screw-secured or clamp-style connections depending on module configuration.

10. Can the KJ4001X1-CK1 be used across different Emerson DeltaV I/O types?

    Yes, it is compatible with multiple I/O modules including analog, digital, and relay boards.
