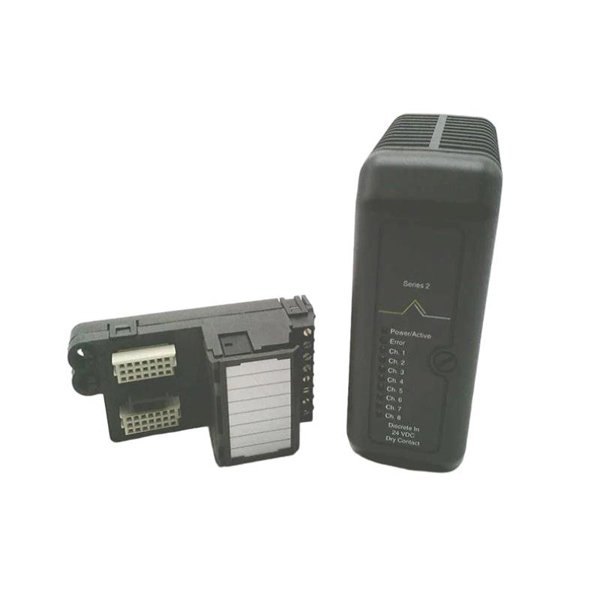

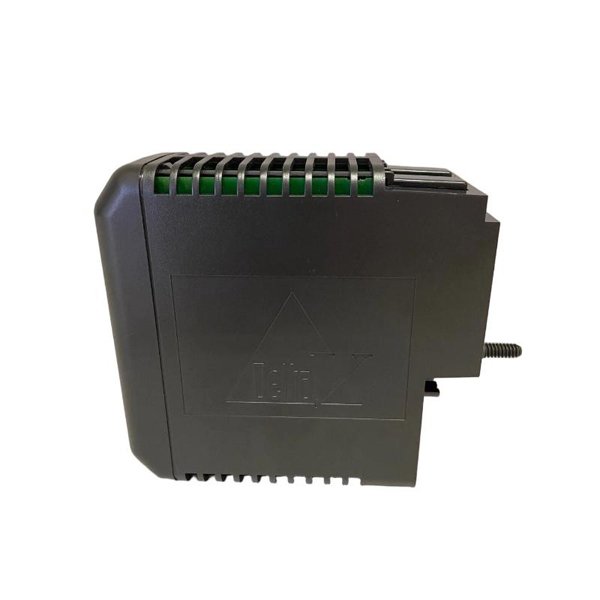

The Emerson VE4001S4T2B2 is a high-performance Discrete Input Card designed for integration within the Emerson Series 4 automation systems. It provides 16 input channels, which are used to interface with discrete field devices such as sensors, limit switches, and actuators. This card is optimized for 24 V DC signal processing, allowing for seamless integration with a wide range of industrial control systems.

The VE4001S4T2B2 card delivers superior accuracy and reliability for discrete signal acquisition. It is engineered to handle high-frequency operations and provides real-time data processing for rapid decision-making in complex systems. The module’s compact design and ease of integration make it suitable for a variety of industrial automation, process control, and manufacturing applications.

Product Parameters

Product Applications

The VE4001S4T2B2 Discrete Input Card is highly versatile and can be used across a broad range of industries. Some key applications include:

• Industrial Automation: Ideal for interfacing with various field devices such as limit switches, proximity sensors, and push buttons in factory automation and production systems.

• Manufacturing and Assembly: It is used to monitor and control assembly line processes, such as robotic arms, conveyors, and quality control stations.

• Process Control Systems: The card is used in chemical plants, oil & gas facilities, and water treatment plants for monitoring parameters such as pressure, temperature, and flow rate through discrete devices.

• Building Automation: It helps in monitoring HVAC systems, lighting controls, and security devices in smart building systems.

• Energy Monitoring: Utilized in energy distribution systems to collect input data from switchgear, fuse monitoring, and circuit breakers.

• Safety and Alarm Systems: The card can connect with safety devices like emergency shut-off valves, fire alarm systems, and emergency stop buttons to ensure safety.

Product Advantages

• High Channel Density: With 16 channels, the card allows for more devices to be monitored and controlled, making it an efficient solution for complex systems with many discrete inputs.

• Compact and Space-Saving: The VE4001S4T2B2 is designed with a compact form factor (107 x 41 x 105 mm), saving space in control cabinets while offering high functionality.

• Easy Installation: The card utilizes DIN rail mounting and screw terminal connections, making installation straightforward and reliable.

• Fast and Accurate Data Acquisition: Designed for fast signal processing, it ensures that real-time data is collected and transmitted without delay, essential for time-sensitive control systems.

• Reliable and Durable: With an IP20 environmental rating, it is protected against dust ingress, making it ideal for use in typical industrial environments.

• Cost-Effective: This card provides excellent value for money by delivering high performance at an affordable price.

FAQ

1. How many input channels does the VE4001S4T2B2 support?

   • The VE4001S4T2B2 supports 16 discrete input channels.

2. What is the operating voltage for this discrete input card?

   • The VE4001S4T2B2 operates at 24 V DC.

3. What kind of devices can be connected to the input channels?

   • It can interface with limit switches, proximity sensors, push buttons, and other discrete devices.

4. What is the current rating for each input channel?

   • Each input channel can handle 5-30 mA of current.

5. What is the mounting method for this card?

   • The card is designed for DIN rail mounting, ensuring easy integration into control panels.

6. What is the environmental rating of this card?

   • The card has an IP20 environmental rating, offering protection against dust ingress.

7. Can the VE4001S4T2B2 be used with other Emerson systems?

   • Yes, the card is compatible with other Emerson Series 4 systems, as well as systems that support 24 V DC input signals.

8. Is this card suitable for high-speed applications?

   • Yes, the card is designed for high-speed discrete input and can handle rapid signal processing for time-sensitive applications.

9. What types of connectors does the card use?

   • The VE4001S4T2B2 uses screw terminal connections for secure wiring.

10. Is this card suitable for hazardous environments?

    • The card is rated IP20, making it suitable for standard industrial environments, but not ideal for environments with excessive dust or moisture.
