Manufacturer:Emerson
Product Number:KL4501X1-BF1
Product Type:CHARM Address Plug
Origin:USA
Dimensions:107 x 41 x 105 mm
Weight:0.04 kg
Views:43
Payment Methods:T/T, PayPal, Western Union
Condition:New & In Stock
Warranty:1 Year
Lead Time:1-3 Working Days
Certificate:COO
Courier partners:DHL, UPS, TNT, FedEx and EMS.
Business hours:7*24

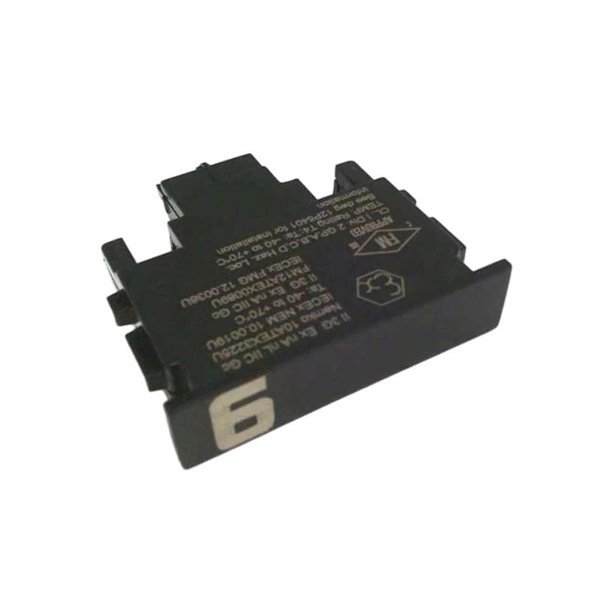

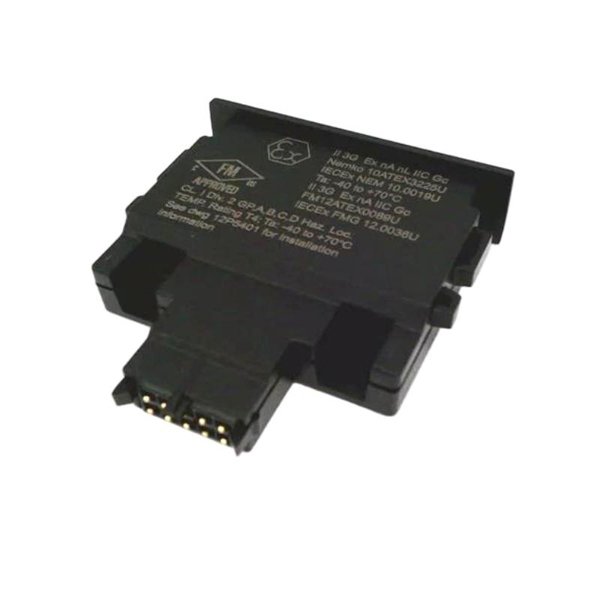

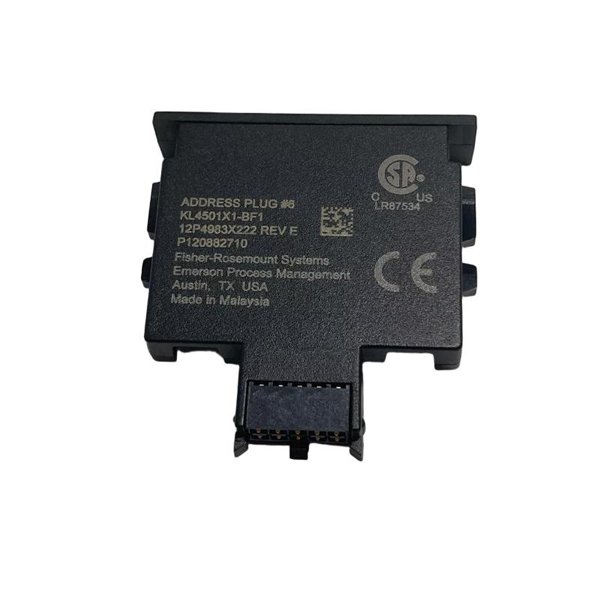

The Emerson KL4501X1-BF1 CHARM Address Plug is a vital component in the Emerson CHARM I/O system, designed to provide the means of addressing individual CHARM modules. This small yet critical device ensures that each module in a distributed control system can be uniquely identified, facilitating seamless communication and system integration. The KL4501X1-BF1 plug is particularly useful in applications where modular and scalable I/O configurations are required. It simplifies system setup and management by assigning unique addresses to each I/O module, allowing for smooth operation and accurate data transmission.
The KL4501X1-BF1 address plug offers a simple yet highly effective solution to managing CHARM modules in large, complex systems. Its compact design, coupled with the robust functionality, ensures that it can be easily installed in a variety of industrial automation applications, ranging from process control to energy management systems.
The following table provides the key technical specifications for the Emerson KL4501X1-BF1 CHARM Address Plug:
| Specification | Details |
|---|---|
| Model | KL4501X1-BF1 |
| Dimensions | 107 x 41 x 105 mm |
| Weight | 0.04 kg |
| Operating Voltage | 24V DC ±10% |
| Power Consumption | 1 W |
| Mounting Type | Direct connection to CHARM modules |
| Addressing Range | 1 to 32 (depends on system configuration) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Communication Protocol | CHARM (Compatible with Emerson systems) |
| Enclosure | IP20 (Protected from solid objects larger than 12 mm) |
The Emerson KL4501X1-BF1 CHARM Address Plug is widely used in industrial automation systems, offering flexible and efficient addressing solutions for large distributed I/O systems. Key applications include:
Process Control Systems: Essential for managing and addressing CHARM I/O modules in complex process control environments.
Industrial Automation: Facilitates easy addressing of modules within automation systems, ensuring smooth integration and operation.
Energy Management Systems: Helps assign unique addresses to I/O modules in energy monitoring and control systems.
Manufacturing Systems: Used to manage multiple sensors and actuators in automated manufacturing environments.
Water and Wastewater Treatment: Ensures proper addressing and data collection from sensors and control systems in water treatment plants.
Oil & Gas: Provides efficient addressing for critical control systems in the oil and gas industry, enhancing operational flexibility and scalability.
Simple Addressing: The KL4501X1-BF1 simplifies the process of assigning unique addresses to CHARM I/O modules, ensuring proper communication in large systems.
Compact Design: Its small size (107 x 41 x 105 mm) allows for easy integration into space-constrained environments, optimizing available space.
Efficient Power Consumption: With a power consumption of only 1 W, the KL4501X1-BF1 is energy-efficient, minimizing overall system power requirements.
Easy Installation: The plug is designed for direct connection to CHARM modules, simplifying installation and system setup.
Wide Temperature Range: Operating in a wide temperature range of -20°C to 60°C, the KL4501X1-BF1 is suitable for use in various environmental conditions.
Durable Protection: The IP20 rating ensures the address plug is protected from solid objects larger than 12 mm, making it suitable for most industrial environments.
1. What is the power supply requirement for the KL4501X1-BF1 address plug?
The KL4501X1-BF1 requires a 24V DC ±10% power supply.
2. How many modules can the KL4501X1-BF1 address plug support?
The address plug can address up to 32 CHARM modules, depending on system configuration.
3. Is the KL4501X1-BF1 suitable for high-humidity environments?
Yes, the KL4501X1-BF1 can be used in environments with humidity levels from 5% to 95% RH, non-condensing.
4. What is the power consumption of the KL4501X1-BF1?
The KL4501X1-BF1 consumes 1 W of power.
5. Does the KL4501X1-BF1 address plug support diagnostic features?
No, the KL4501X1-BF1 does not include built-in diagnostic features, as its primary function is to assign addresses to I/O modules.
6. What is the operating temperature range of the KL4501X1-BF1?
The KL4501X1-BF1 operates within a temperature range of -20°C to 60°C.
7. What is the storage temperature range of the KL4501X1-BF1?
The storage temperature range for the KL4501X1-BF1 is -40°C to 85°C.
8. Can the KL4501X1-BF1 be used in energy management systems?
Yes, it can be used in energy management systems to help manage the addressing of modules in the system.
9. What protection level does the KL4501X1-BF1 provide?
The KL4501X1-BF1 has an IP20 protection rating, meaning it is protected from solid objects larger than 12 mm but not from water.
10. How is the KL4501X1-BF1 installed?
The address plug is directly connected to CHARM modules, making installation quick and easy.
