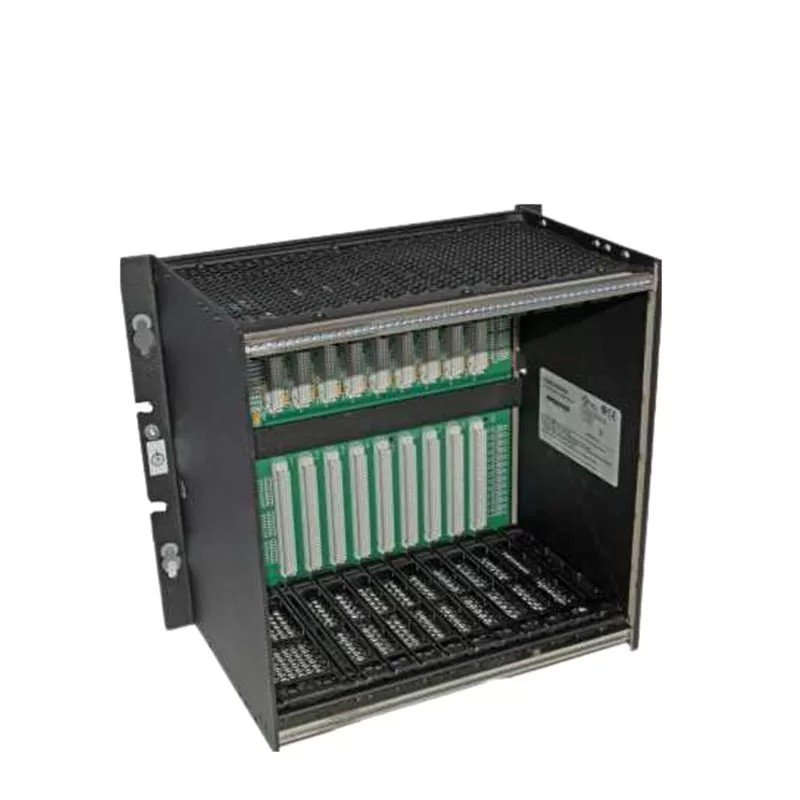

The IC698CHS009 is a compact, 9-slot I/O rack for the GE Fanuc Rx7i PACsystem. This rear-mount enclosure optimizes I/O module management within industrial automation setups.

Key Features

• Power Supply: Supports 100W and 350W power supplies for flexible system configuration.
• I/O Capacity: Accommodates up to 9 I/O modules to meet various input and output needs.
• Ease of Use: Uses software-based I/O addressing, eliminating the need for DIP switches or jumpers.
• Efficient Design: Manages interrupt acknowledgment and bus grant signals automatically via daisy-chain slot sensing.

Technical Specifications

• Operating Voltage: 5 to 12 VDC
• I/O Slots: 9 slots (8 standard, 1 wide)
• Slot Dimensions:
  • Slots 1-8: 20mm for single-width modules
  • Slot 9: 40.6mm for double-width modules
• Mounting: Rear mounting
• Dimensions (approximate): 283 x 320 x 190 mm
• Compatibility: Rx7i CPUs, I/O modules, and power modules
