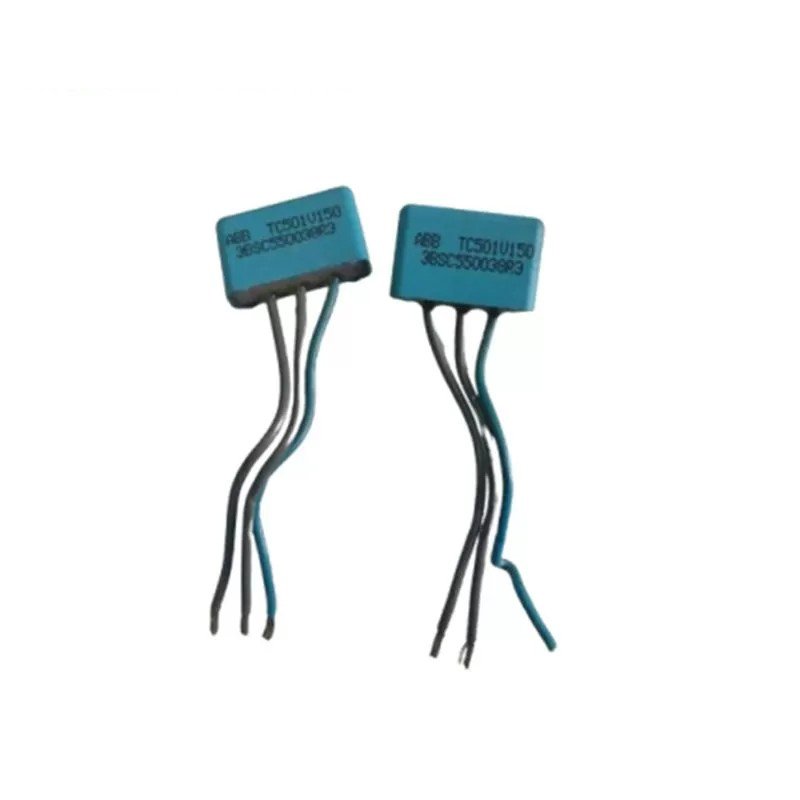

The ABB TC501V150 3BSC550038R3 is a specialized termination unit for the ABB Advant Master Process Control System. It is primarily used for speed measurement and control, offering a range of features and capabilities.

S600 I/O Speed Meter Input

• Maximum frequency: 50 kHz
• Input current: ±13 mA
• Supply voltage: 24 VDC or 5 VDC
• Direction detection: Via a second speed meter input

Overspeed Trip Logic

• Trip signal output: Solid-state 24 VDC and dry contact 60 VDC

Opto-Isolation

• Opto-isolated inputs: Speed meter inputs and solid-state output for enhanced noise immunity and safety.

Termination Unit

• Impedance: 150 Ohm

Compliance

• RoHS: Exempted from the scope of RoHS 2011/65/EU (ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY – ABB Advant Master Process Control System)

Dimensions

• Product Net Depth / Length: 100 mm
• Product Net Height: 30 mm
• Product Net Width: 200 mm
• Product Net Weight: 0.005 kg

Applications

The TC501V150 is commonly used in industrial automation applications where precise speed measurement and control are critical. Here are some typical applications:

• Motor speed control
• Conveyor belt monitoring
• Machine tool monitoring
• Process control
