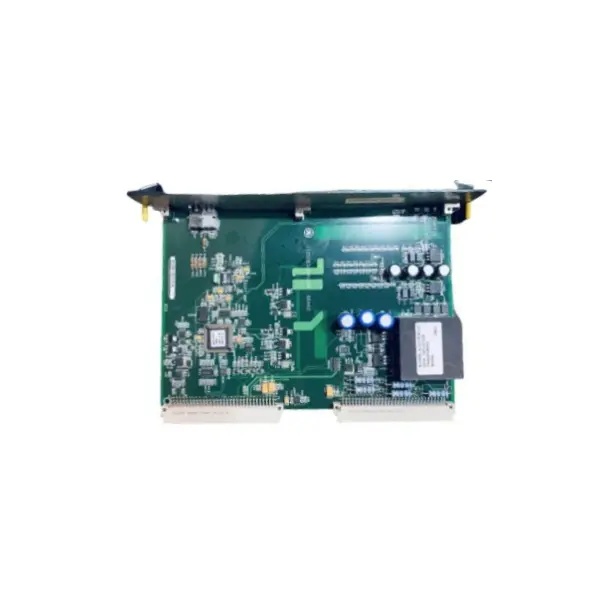

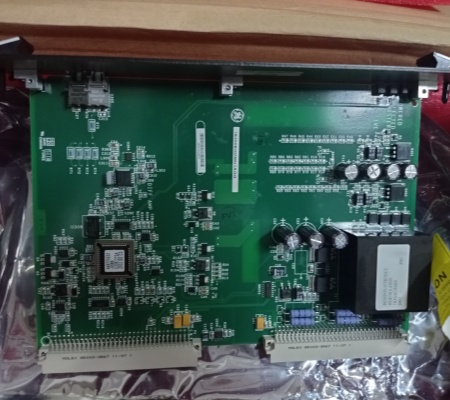

Triple Modular Redundant systems tend to provide three EDGM boards, while simplex systems use only one of these IS200EGDMH1AGG products. Each surface of each hardware component of the IS200EGDMH1AGG exciter ground sense module substrate. The main outstanding hardware feature of the IS200EGDMH1AGG PCB can be identified in its sense resistor. This sense resistor can be more accurately classified as a simple unity gain differential amplifier with a high common mode rejection ratio. It is classified as a voltage controlled oscillator VCO. The components should all be protected by a layer of conformal printed circuit board coating. Conformal PCB coating is different from replacing the conventional style PCB coating, it is an all-round PCB coating that wraps around the connections.

Frequently asked questions about the product are as follows:

-What is the purpose of the IS200EGDMH1AGG module?

It monitors the generator excitation system for ground faults, which may indicate insulation breakdown or other electrical problems.

-What are the environmental operating conditions for the IS200EGDMH1AGG?

Maintain within specified temperature, humidity and vibration limits.

-How does the ground detection module work?

If a ground fault is detected, it sends a signal to the Mark VI control system to trigger an alarm or shutdown.
