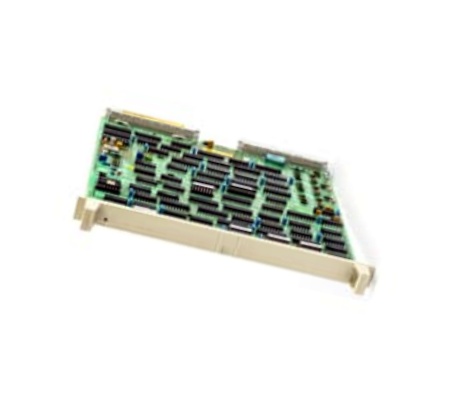

ABB DSAV 111 57350001-CN video boards may be specialized components used in ABB automation systems, particularly for visual data display, video processing or image processing applications in industrial automation systems. These types of video boards are often used in conjunction with human machine interfaces (HMI), control panels or other display devices that require real-time video or graphic output.

The video board operates at 61.2Hz and has specific video processing capabilities to meet the processing and transmission requirements of the corresponding system for video signals.

It can support the output of real-time video or graphical data, which is useful in systems where operators need to monitor video feeds from cameras or visual interfaces in manufacturing, processing, or security environments.

Video boards can be used to drive displays that show high-definition images, video, or graphical data related to automated processes.

In control systems, such as SCADA (Supervisory Control and Data Acquisition) or PLC-based systems, video boards can be used to present data or visual feedback from sensors, cameras, or other devices to operators.

The "61.2 Hz" designation may indicate that the video board is designed to process video feeds at 61.2 Hz, indicating compatibility with certain video standards or display requirements in specific industrial systems.

In advanced settings, such video boards can support multi-channel video output, allowing multiple video feeds from different cameras or sources to be displayed simultaneously.

Frequently asked questions about the product are as follows:

-What is the ABB DSAV 111 57350001-CN?

The ABB DSAV 111 57350001-CN video board is primarily used for processing video and output. It can be used to display video sources, images, or graphical data in industrial control systems, HMIs, or monitoring stations that require real-time video or visual data.

-What types of video inputs and outputs does the ABB DSAV 111 57350001-CN support?

The ABB DSAV 111 57350001-CN video board supports input and output of standard video signals. The specific input types supported depend on the specifications of the model. Outputs include connections to displays or other video output devices.

-How does the ABB DSAV 111 57350001-CN integrate into a control system?

Install it in the designated slot of a control panel or industrial system. Connect the video input source to the board. Connect the output to a display or video output device. Configure it through software tools to manage video sources, image rendering, and other display parameters within the system.
