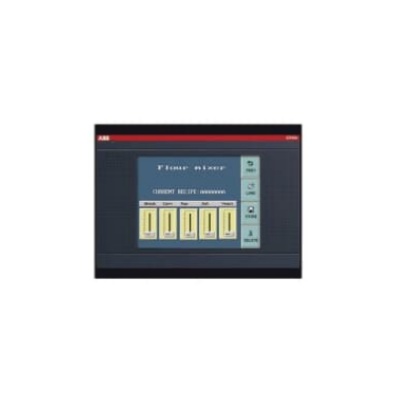

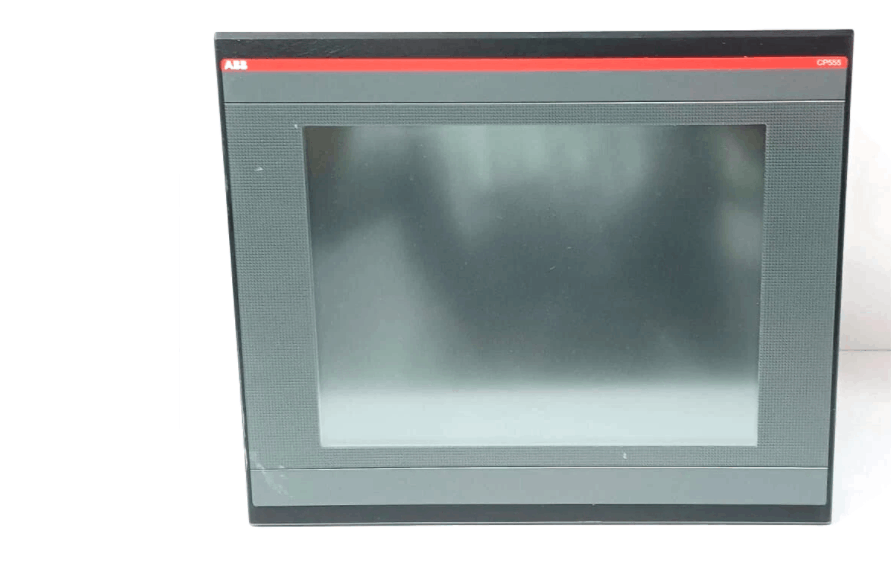

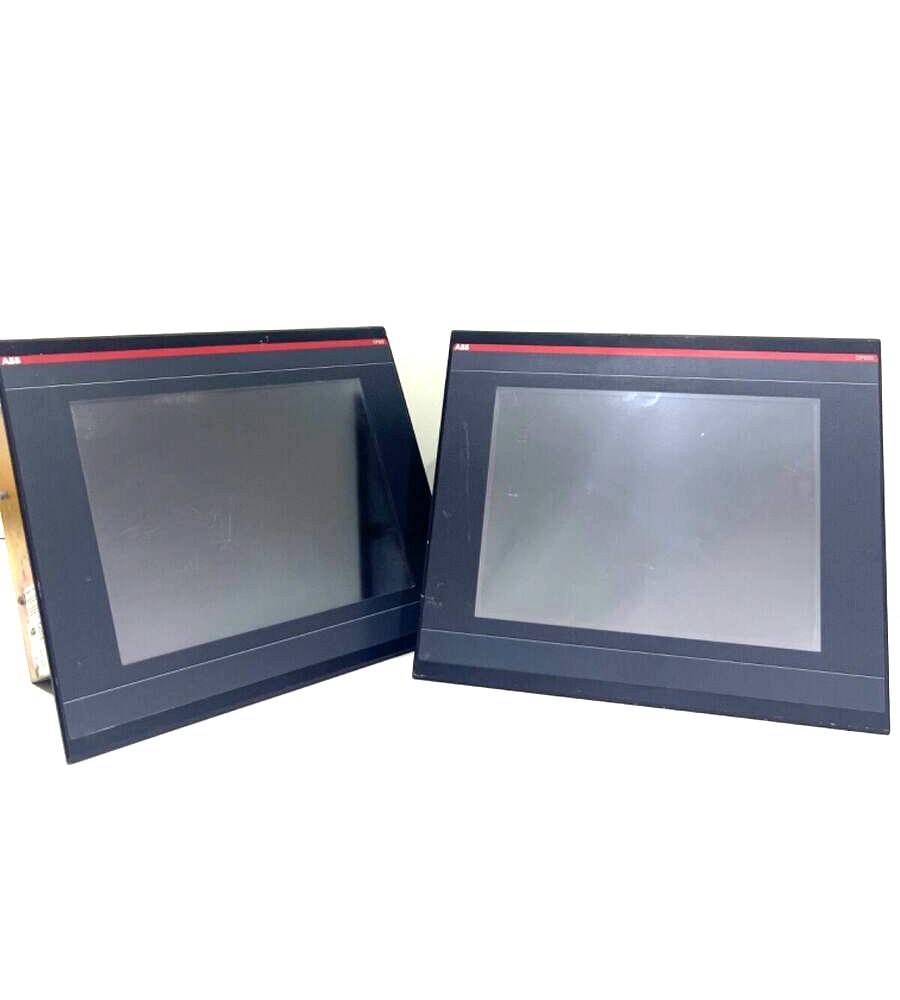

ABB CP555 1SBP260179R1001 Control Panel

ABB CP555 is a high-end HMI product of the CP500 series, with a 10.4-inch TFT true color screen, 256 colors, 640×480 VGA resolution, full touch operation + multi-function key expansion, standard configuration Modbus RTU/ASCII, communication rate of 9.6 ~ 57.6 kBaud, IP65 protection level (dustproof and waterproof, suitable for indoor industrial environment).

Using the CP500 Soft engineering platform, it supports graphical configuration and script programming and can import CAD drawings as background templates.

Note: The touch screen needs to be calibrated when powered on for the first time (built-in wizard program)

Fuctions & Features

Development functions:

• Alarm management (supports up to 5,000 records)
• Data trend chart (displays 8 channel curves simultaneously)
• Multi-language switching (built-in 20 character sets)

Display and interaction:

• 256-color graphics, support dynamic process flow charts
• 10.4-inch wide-view screen (horizontal/vertical viewing angles ≥ 160°)
• Industrial-grade resistive touch

Hardware configuration:

• 1600KB user storage (non-volatile RAM + Flash EPROM)
• 24V DC (power consumption 24VA, fuse F6.3A protection)
• Operating temperature 0°C ~ +50°C
