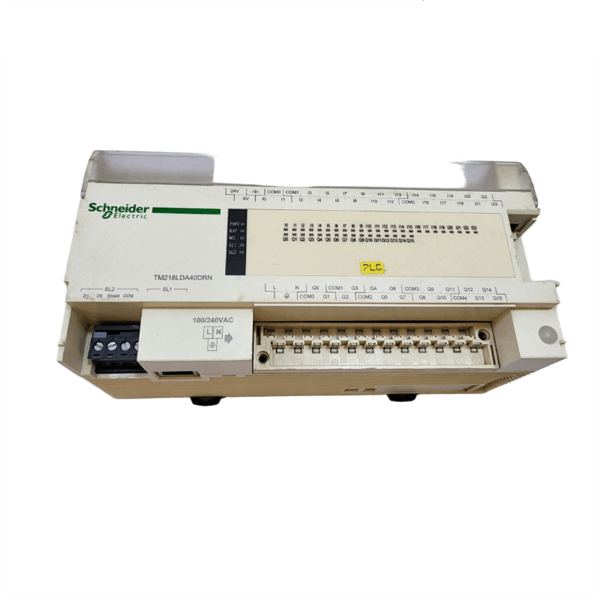

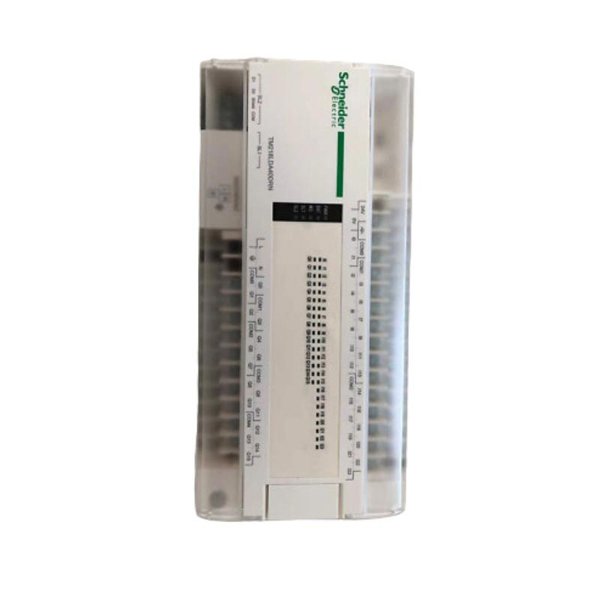

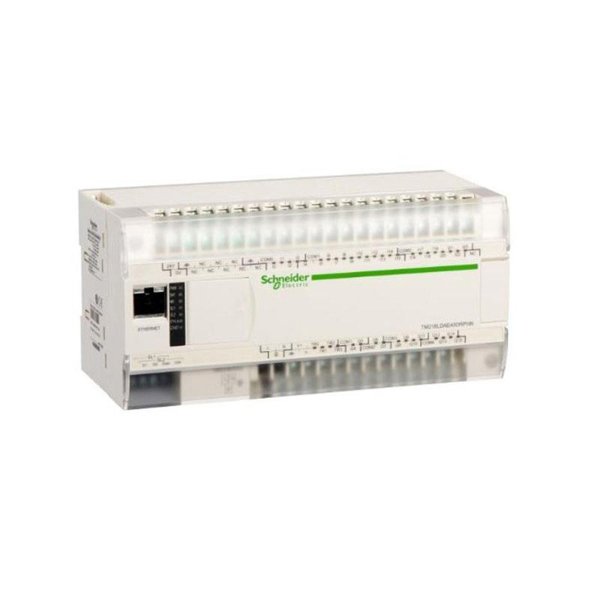

The Schneider TM218LDA40DRN is a highly versatile logic controller designed to cater to the complex automation needs in a wide range of industries. Part of the Modicon M218 series, this controller offers an ideal solution for small to medium-scale applications, such as process control, machinery control, and building management systems. It’s particularly suited for environments where efficient data management, precise control, and scalability are paramount.

The TM218LDA40DRN model integrates advanced features in a compact and cost-effective package, offering a robust solution for industrial applications requiring flexibility, reliability, and ease of integration.

Product Specifications

Below is the detailed technical specification table for Schneider TM218LDA40DRN:

Product Applications

The TM218LDA40DRN logic controller is designed to meet the demands of various industries where small to medium-scale control and automation solutions are needed. Some typical applications include:

• Automated Machinery: This controller can be used to manage and monitor automated production lines, including the control of motors, conveyors, and robotic systems.

• Building Automation: Widely applied in HVAC systems, lighting control, and other building management solutions to enhance energy efficiency and operational management.

• Process Control: Used in industries such as food processing, water treatment, and packaging for real-time data handling and control.

• Agricultural Automation: In greenhouses or livestock management systems, where environmental conditions need to be constantly monitored and adjusted.

Product Advantages

• Compact Design: Its small form factor allows for easy installation even in space-constrained environments, saving valuable panel space.

• High Flexibility: The TM218LDA40DRN supports a wide range of digital and analog input/output configurations, providing flexibility for diverse automation tasks.

• Advanced Communication: Equipped with USB and RS-485 communication ports, it allows for seamless integration into existing networks, improving data transmission capabilities.

• Energy Efficient: Operating with low power consumption, it is designed to be energy-efficient while still maintaining high performance.

• Easy Programming: It supports intuitive programming tools like SoMachine and EcoStruxure™ to simplify system configuration and debugging.

• Robust Performance: With an ambient temperature range of 0-60°C, it is well-suited for industrial environments, ensuring long-lasting reliability even under challenging conditions.

FAQs

1. What is the input and output configuration of the Schneider TM218LDA40DRN?

• Answer: The controller features 16 digital inputs and 16 digital outputs, making it ideal for managing simple digital control tasks.

2. Can the Schneider TM218LDA40DRN be used for analog inputs?

• Answer: No, the TM218LDA40DRN model is designed exclusively for digital inputs and outputs. For analog input/output requirements, other models in the Modicon M218 series should be considered.

3. How can I mount the TM218LDA40DRN controller?

• Answer: This controller is designed for DIN rail mounting, making it easy to install in standard industrial panels and cabinets.

4. What is the operating temperature range of the TM218LDA40DRN?

• Answer: The controller operates efficiently within the temperature range of 0°C to 60°C.

5. Does the Schneider TM218LDA40DRN offer communication options?

• Answer: Yes, it is equipped with a USB port and an RS-485 port, allowing easy integration into a network for data transmission and monitoring.

6. What is the weight of the TM218LDA40DRN controller?

• Answer: The TM218LDA40DRN weighs 0.55 kg, making it lightweight and easy to handle during installation.

7. What type of power supply does the TM218LDA40DRN require?

• Answer: The controller operates with a 24V DC power supply, with a tolerance of +/- 20%.

8. Can the TM218LDA40DRN be used in humid environments?

• Answer: Yes, it can function effectively in environments with humidity levels ranging from 10% to 95% RH (non-condensing).

9. Is there any software required to program the TM218LDA40DRN?

• Answer: Yes, the controller can be programmed using SoMachine or EcoStruxure™ software, both of which are designed for easy setup and programming of Schneider Electric controllers.

10. What is the protection rating of the TM218LDA40DRN?

• Answer: The TM218LDA40DRN has an IP20 protection rating, meaning it is protected against solid objects greater than 12mm in diameter, but is not waterproof.
