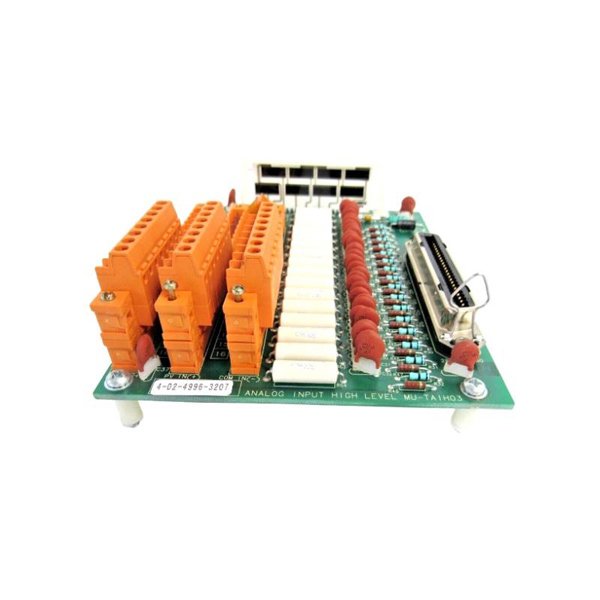

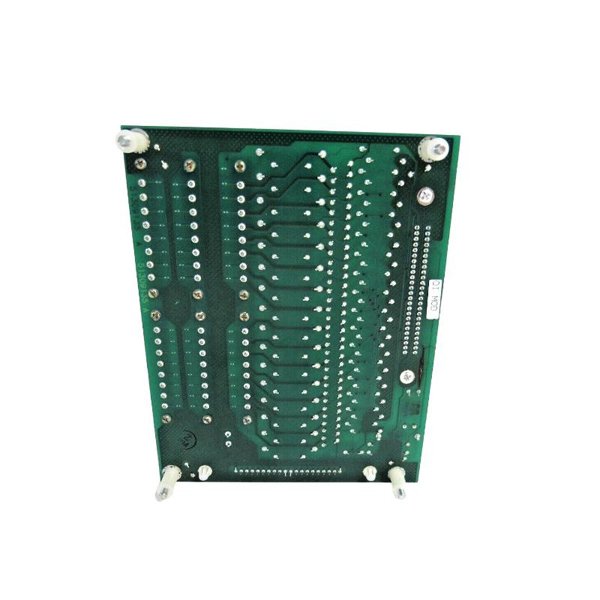

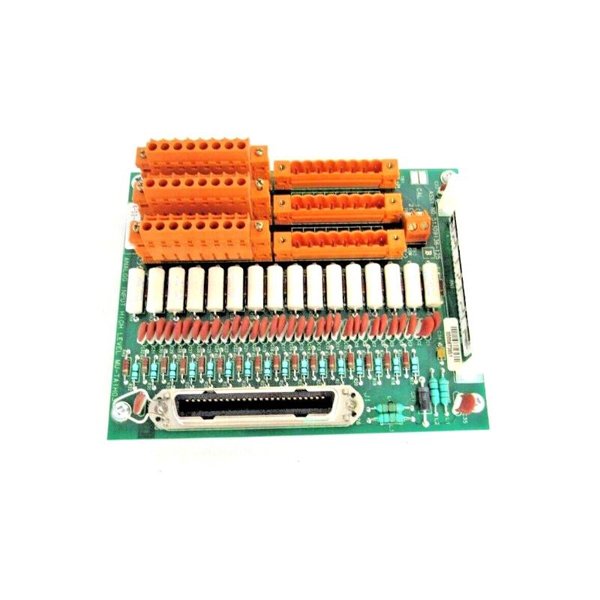

The Honeywell MU-TAIH03 51309136-125 is a high-level analog input module designed for use within the High-Performance Process Manager (HPM) architecture. It enables precise acquisition of analog process signals and supports single-ended or differential inputs. This module is essential for interfacing analog field devices such as pressure, flow, and temperature transmitters within Honeywell’s TPS (TotalPlant Solution) systems.

Technical Specifications

Applications

• Chemical and petrochemical plants

• Oil & gas upstream/downstream instrumentation

• Power generation process control

• Water treatment and distribution systems

• Pulp and paper manufacturing

• Pharmaceutical production environments

Product Advantages

• Supports both single-ended and differential input configurations

• High noise immunity and input isolation for robust signal integrity

• Seamless integration with HPM subsystems and FTAs

• CE compliance ensures suitability for regulated industrial environments

• Supports redundancy configurations for increased system reliability

Frequently Asked Questions (FAQ)

Q1: What type of signals does the MU-TAIH03 support?

A1: It supports high-level analog signals, including 0–5 VDC and 4–20 mA.

Q2: How many input channels are available?

A2: The module supports up to 8 input channels.

Q3: Can the module be configured for differential inputs?

A3: Yes, it supports both single-ended and differential input configurations.

Q4: Is the MU-TAIH03 compatible with redundant IOP setups?

A4: Yes, it supports redundancy for high-availability systems.

Q5: What kind of field devices can be connected?

A5: It is commonly used with transmitters for pressure, temperature, flow, and level.

Q6: What is the standard operating temperature range?

A6: The module operates between 0°C and 60°C.

Q7: Does the MU-TAIH03 include isolation features?

A7: Yes, it provides channel-to-channel and channel-to-ground isolation.

Q8: How is the module integrated into the system?

A8: It connects through a dedicated Field Termination Assembly (FTA) and communicates with the Input/Output Processor (IOP).

Q9: Is this module CE certified?

A9: Yes, the MU-TAIH03 is CE compliant.

Q10: What kind of maintenance is required?

A10: The module is designed for minimal maintenance; periodic inspection of wiring and status LEDs is recommended.
